Technical details

• USB 3.1 SuperSpeed up to 10 Gbps
• 1x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ socket
• 1X SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) A socket
• Supports data transfer rates of 10G / 5G / 480 / 12 / 1.5 Mbps
• Power USB Type-C™ port 5 V / 3 A
• Power USB Type-A port 5 V / 900 mA
• SATA 15-pin power connector for additional power supply from the motherboard
• Supports 4-way PCI Express v2.0
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports multiple INs
• Overvoltage protection
• Supports remote wakeup function via keyboard or mouse
• Supported operating systems: Windows 7/8/8.1/10, Linux

Package content

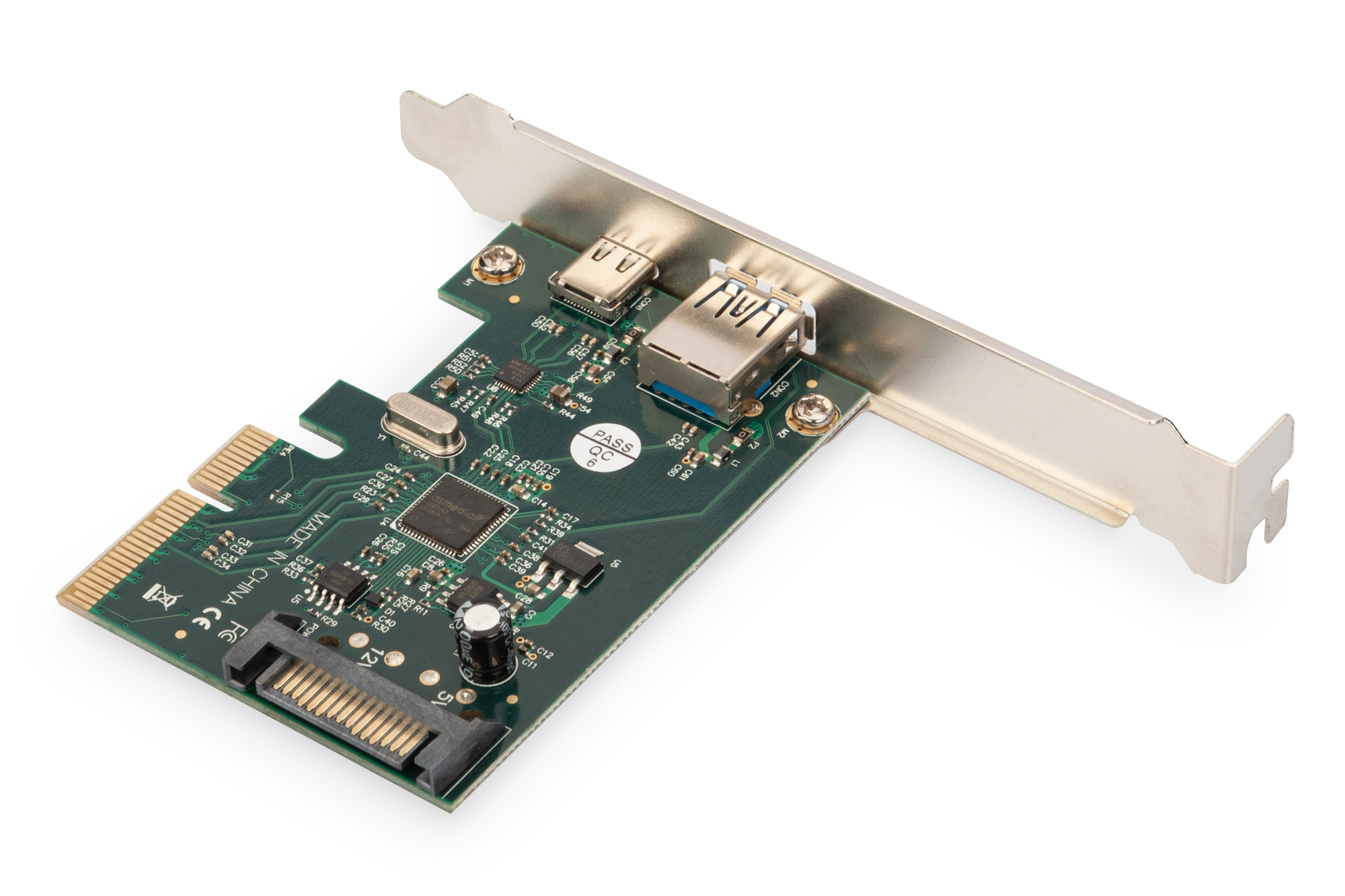

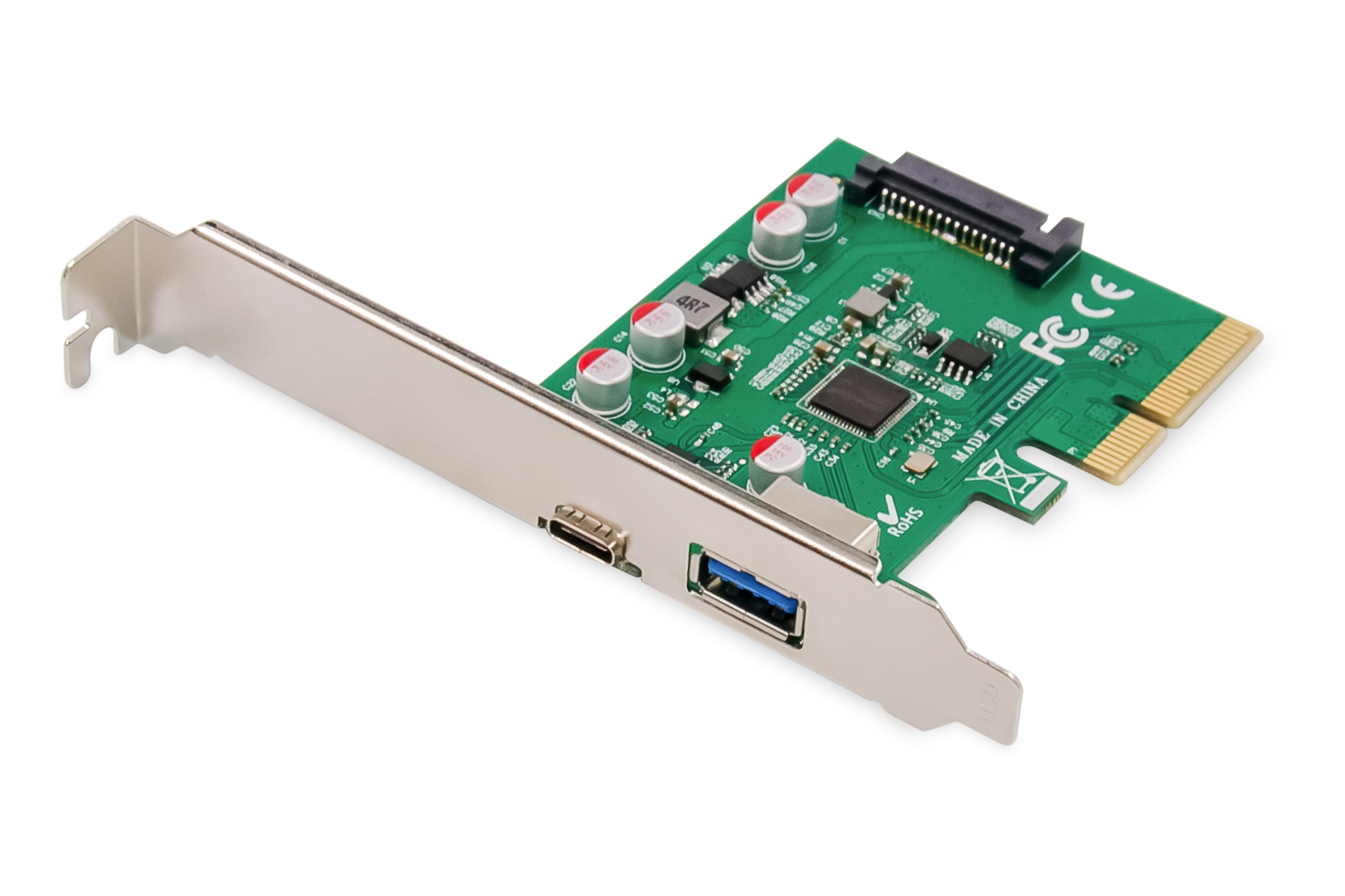

• PCIe card, USB Type-C™ + USB-A
• Low profile aperture
• CD driver
• Installation instructions
