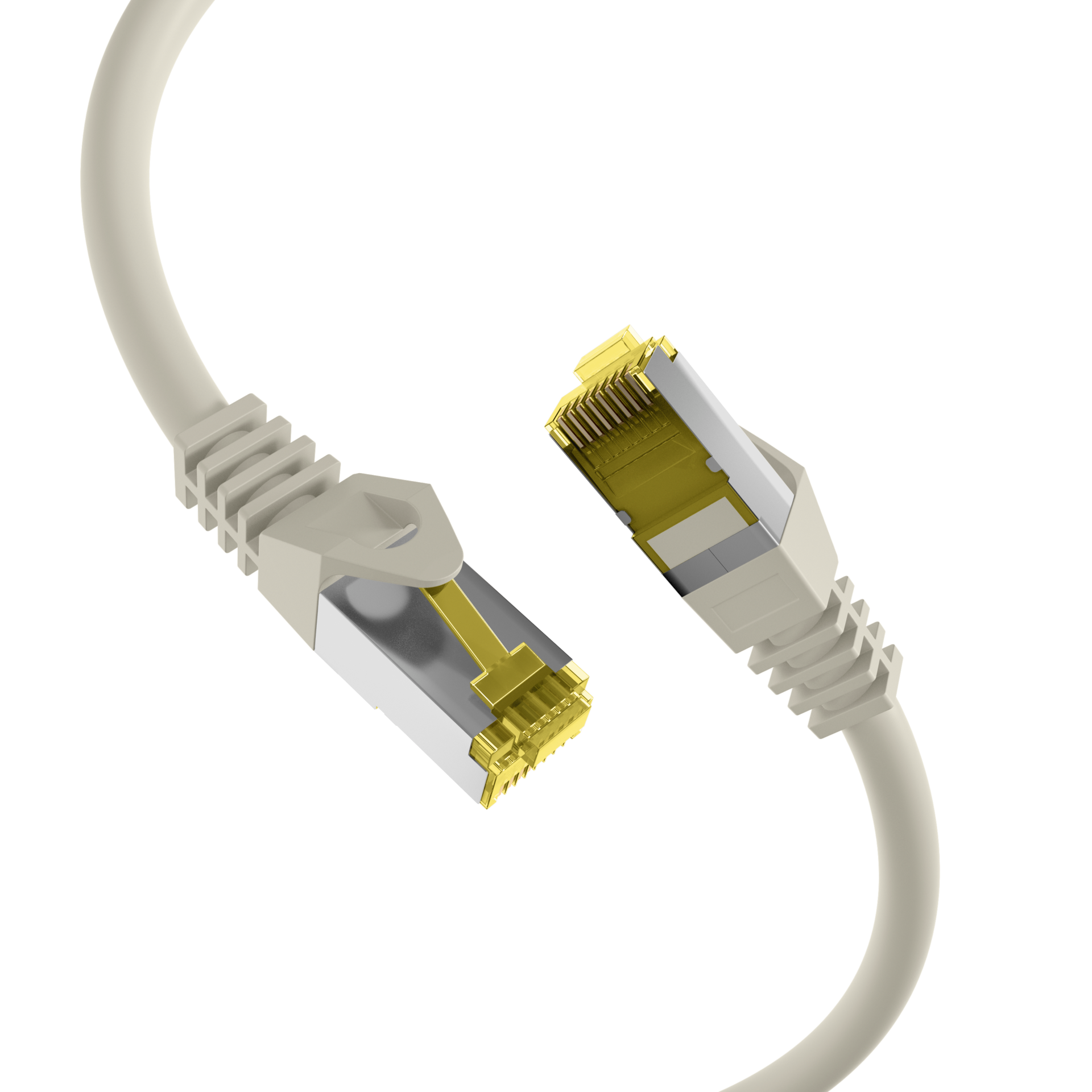

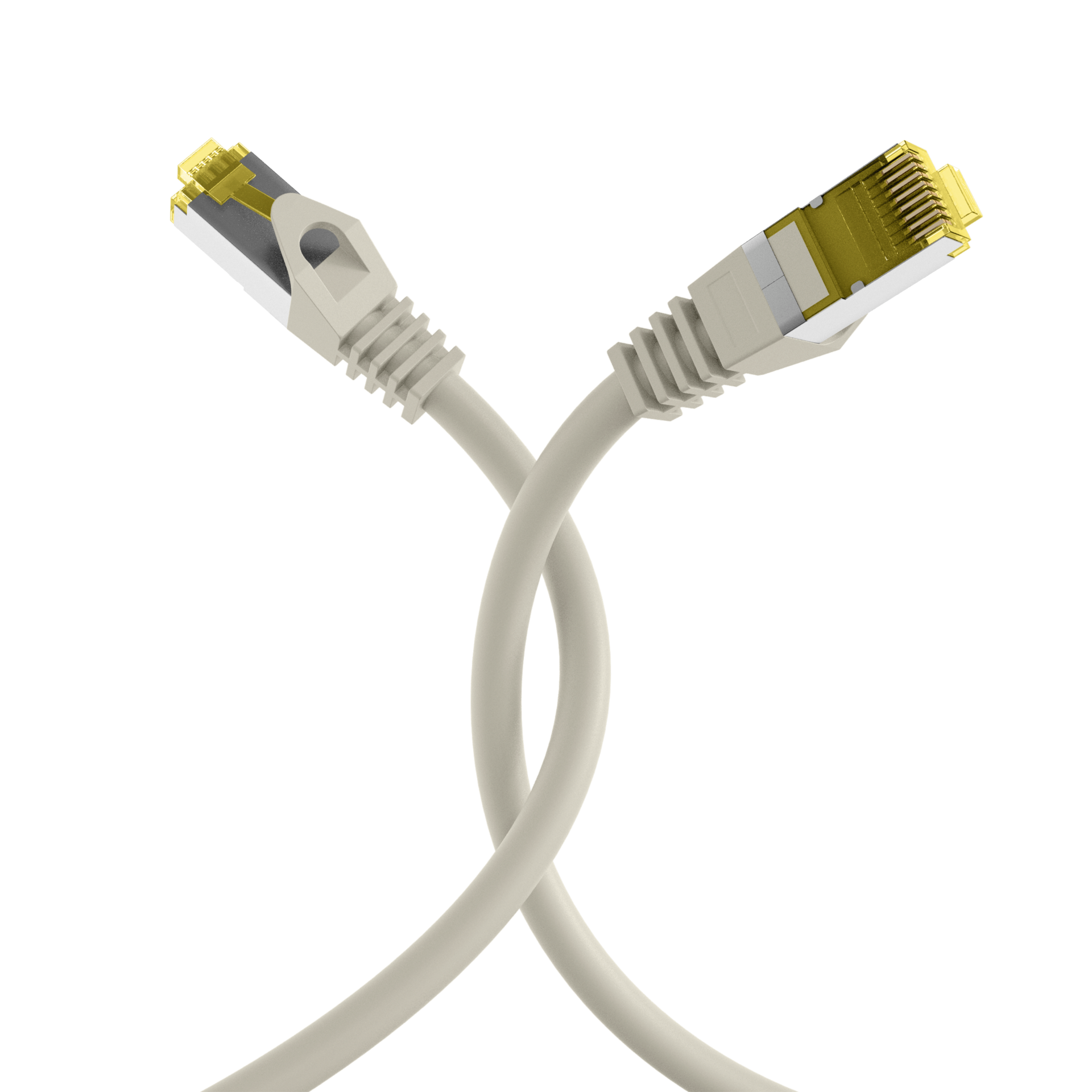

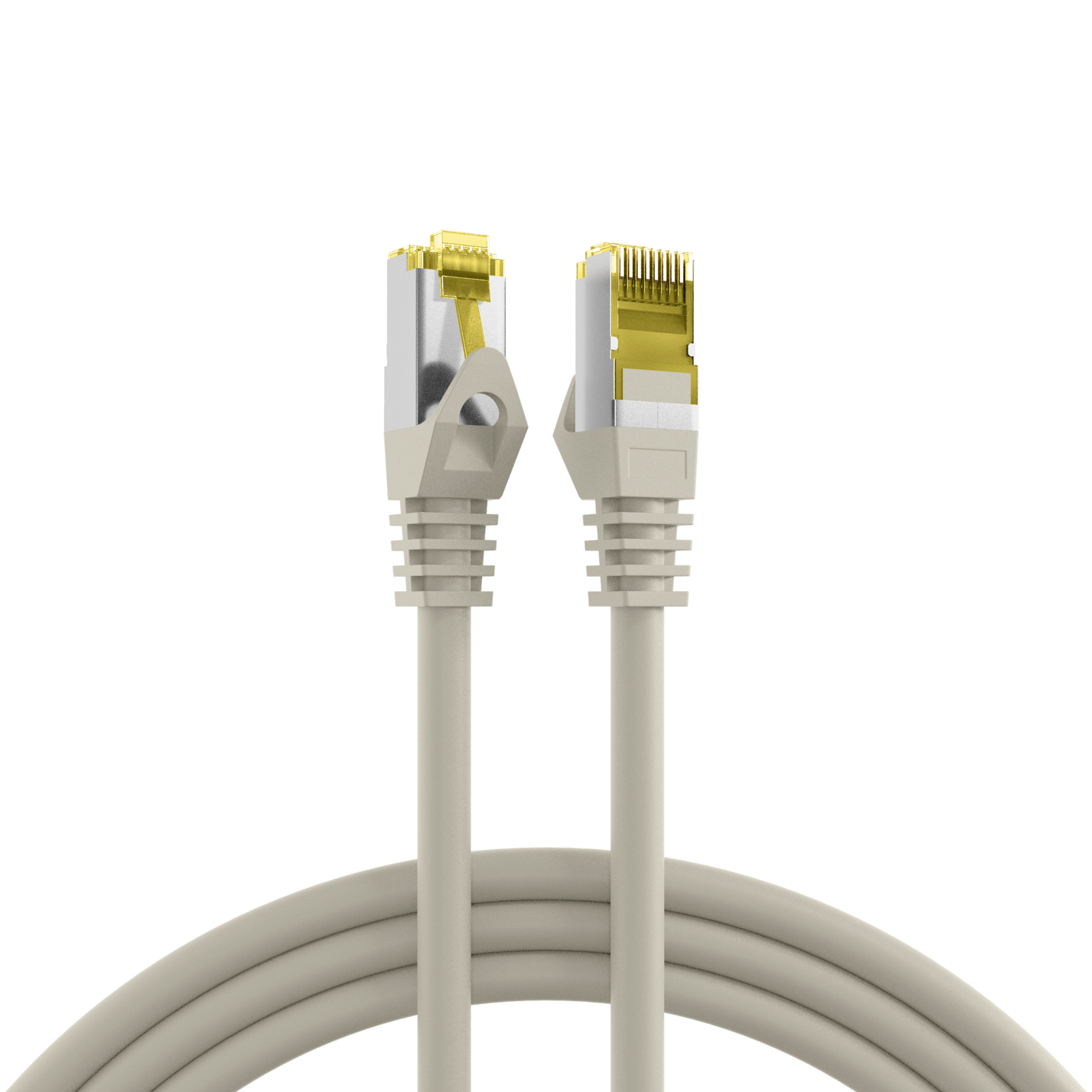

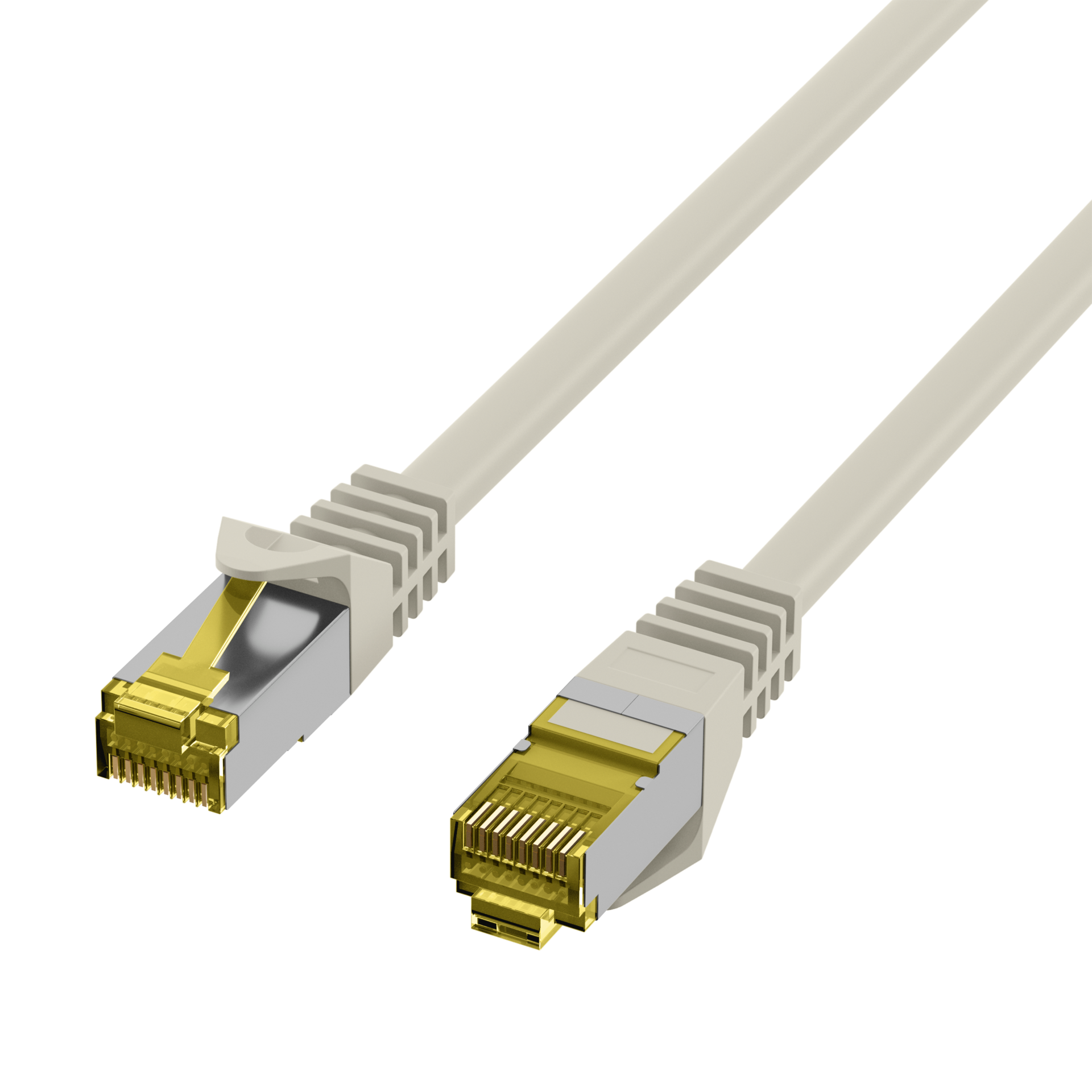

EFB RJ45 Patch cable S/FTP Cat.6A LSZH Cat.7 Raw cable grey 2m MK7001.2G

Κωδικός plus26: 173-304606

Κωδικός Εργοστασίου (MPN): MK7001.2G

Εγγραφείτε για τιμή

The shielded Cat.6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot

DATASHEET

Product features

Category: 6A (TIA)

Type of connector connection 1: RJ45 8(8)

Type of connector connection 2: RJ45 8(8)

Connector type: RJ45 Standard yellow

Contacts: Gold plated

Pin assignment: 1:1

Allocation: acc. TIA/EIA 568B

Type: Shielded

Length imprint: yes

Anti-kink sleeve: moulded

Colour anti-kink sleeve: grey

Locking lever: yes

Mating cycles: ≥750

Bending radius: >32,5 mm

Conductive shield: Selected shield contact

Raw cable: Cat.7

Cable structure: S/FTP

Cable construction: 4x2

AWG-size/strands per core: 26/7

Conductor Material: Copper

Silicone-free: yes

Jacket material: LSZH

Colour outer sheath: grey

Printing: Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT***

Outer diameter of the cable: 6.5 mm

Flame-retardant: acc. IEC60332-1

Halogen-free: acc. IEC60754-2

Low smoke: acc. IEC61034

Temperature range: -20 – 60 °C

Impedance: 100 ±5 Ω

Conductor resistance DC: 146 Ω/km

Loop resistance: 292 Ω/km

Resistance unbalance: 5 %

Insulation resistance: 10 MΩ

Contact resistance: 30 mΩ

Test voltage: 1000 (V DC, 1min) core/core und core/screen

POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt

Bandwidth: 500MHz

Transmission: 10Gbit

Connector: IEC 60603-7-51
