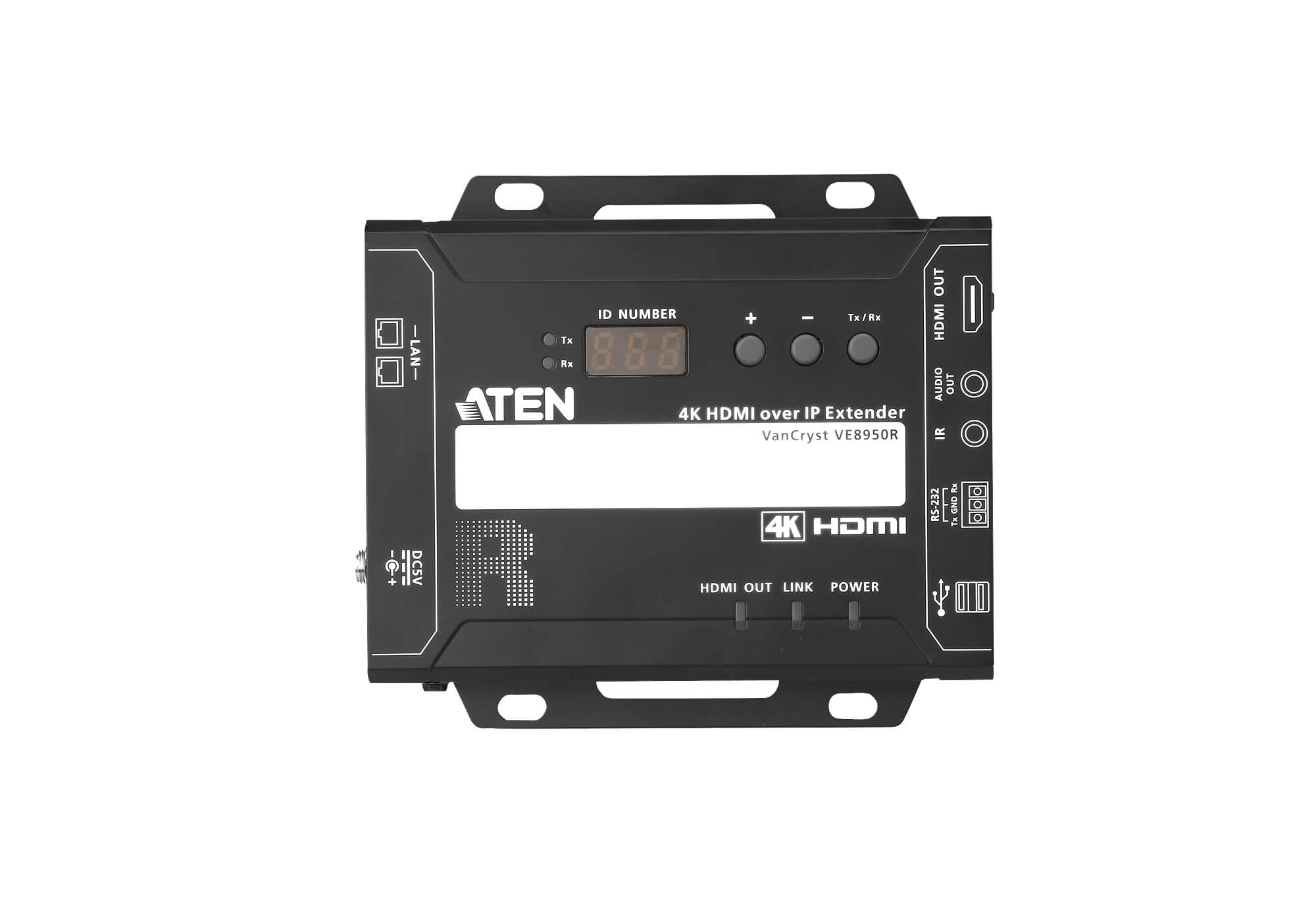

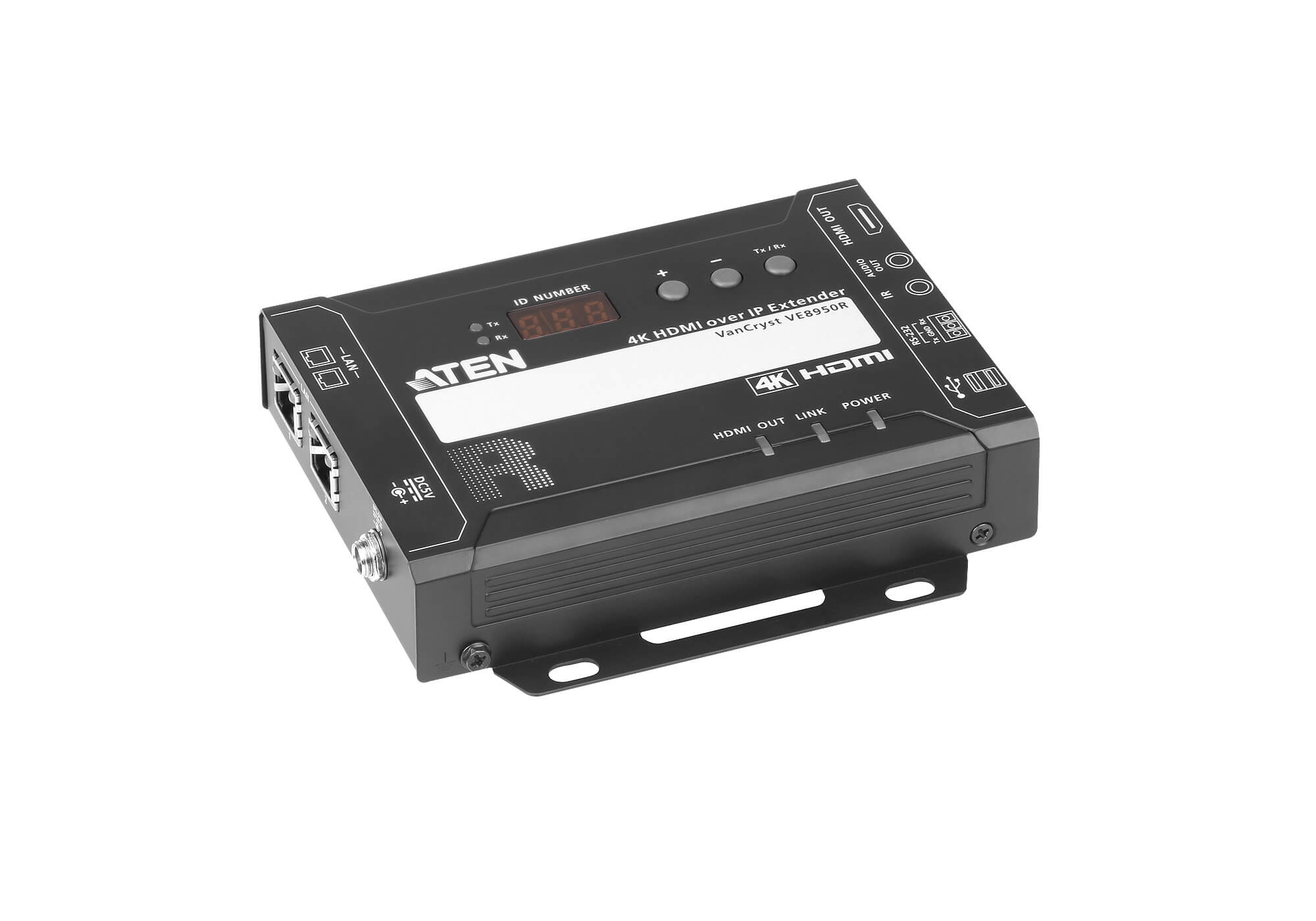

Aten VE8950R 4K HDMI over IP Receiver

Κωδικός plus26: 173-9361

Κωδικός Εργοστασίου (MPN): VE8950R

Εγγραφείτε για τιμή

Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN

Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4

Daisy Chaining - Connects multiple displays through a single port

Video Wall Support

The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

Limitless scalability and flexibility
No complicated IP setup
No additional server PCs or software required required
Go further for less with daisy chaining

Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide: https://assets.aten.com/product/manual/Implementation_Guide.pdf

Lightweight Compression with Ultra-low Latency
- Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage

Limitless Scalability and Flexibility
- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
- Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
- Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*

Collaboration with ATEN Control System
- Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8950R via CLI Telnet or RS-232 protocol
- Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad

Spontaneous Scheduling Management
- Offers an user-friendly scheduling management function for users to pre-plan the display schedule
- Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
- Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
- Multiple profiles can be arranged to play in any order over a selected period of time

No Complicated IP Setup
- Simple configuration that requires no extensive IT experience or extra learning
- Effortlessly switches among input sources via top panel pushbuttons

Web GUI-Based Management, No Additional Server PCs or Software Required
- Simple Access – Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on “Find My VE” Chrome based free tool

Go Further For Less with Daisy Chaining*
- Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
- Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
- Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers
  * Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.

*Use daisy chains to configure a video wall or expand the AV system hundreds of meters

Video Wall Support
- Supports up to 8 x 8 video wall (64 displays)*
- Supports horizontal or vertical (90° and 270° rotation) display orientation
- Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI
  *Depends on your network architecture, please contact ATEN representatives for more details.

Embedded / De-embedded Audio Support
- audio stream can be extracted from the HDMI stream and delivered as a separate audio signal

Multiple Control Channels
- Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
- USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*
- Bi-directional IR Channel – IR transmission is processed one way at a time
- RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners
  Note: *Each VE8950T transmitter can be controlled by a total of 4 USB touch screens installed to VE8950R receivers.

  Please refer to the FAQ link below on how to select network switches and network switch information collected by ATEN Customer Service Division, where the collected information includes customer's feedback from their actual experience in using and installing the product(s).
  https://eservice.aten.com/eServiceCx/Common/FAQ/view.do?id=6276

Input Resolutions 640x480p @ 59.94/60Hz (4:3) 720x576p @ 50/200Hz (4:3)/(16:9)
720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9) 720x576p @ 100Hz (16:9)
1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/
119.88/120 Hz (16:9) 1440x480p @ 59.94/60Hz (4:3)/(16:9)
1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz 1440x576p @ 50Hz (4:3)/(16:9)
1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9) (2880)x480p @ 59.94/60Hz (4:3)/(16:9)
1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/
119.88/120Hz (16:9) 1680x720p @ 23.98/24/25/29.97/30/50/59.94/ 60/100/119.88/120 Hz
720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9) 2560x1080p @ 23.98/ 24/25/29.97/30/50/59.94/60Hz
720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9) 3840x2160p @ 23.98/24/25/29.97/30Hz (16:9)
720 (1440)x288p @ 50Hz (4:3)/(16:9) 4096x2160p @ 23.98/24/25/29.97/30Hz
720 (1440)x240p @ 59.94/60/119.88/120/239.76/ 240Hz (4:3)/(16:9)

Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3 m
Video
Max. Data Rate Average: 150 ~ 500Mbps
Compliance HDMI
HDCP Compatible
Max. Resolutions / Distance Up to 4K@100m (Cat 5e/6, point to point)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio

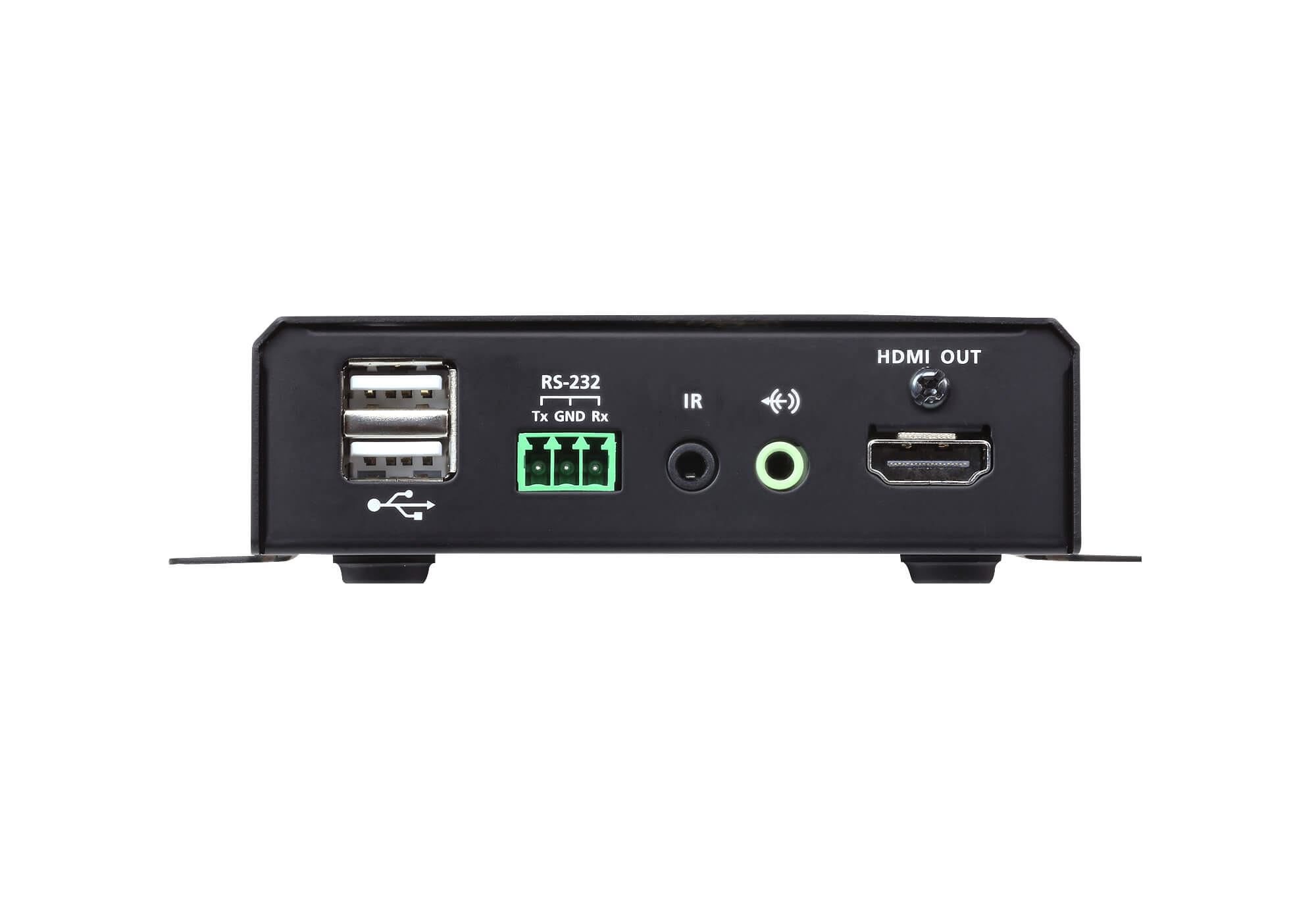

Output 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Connectors

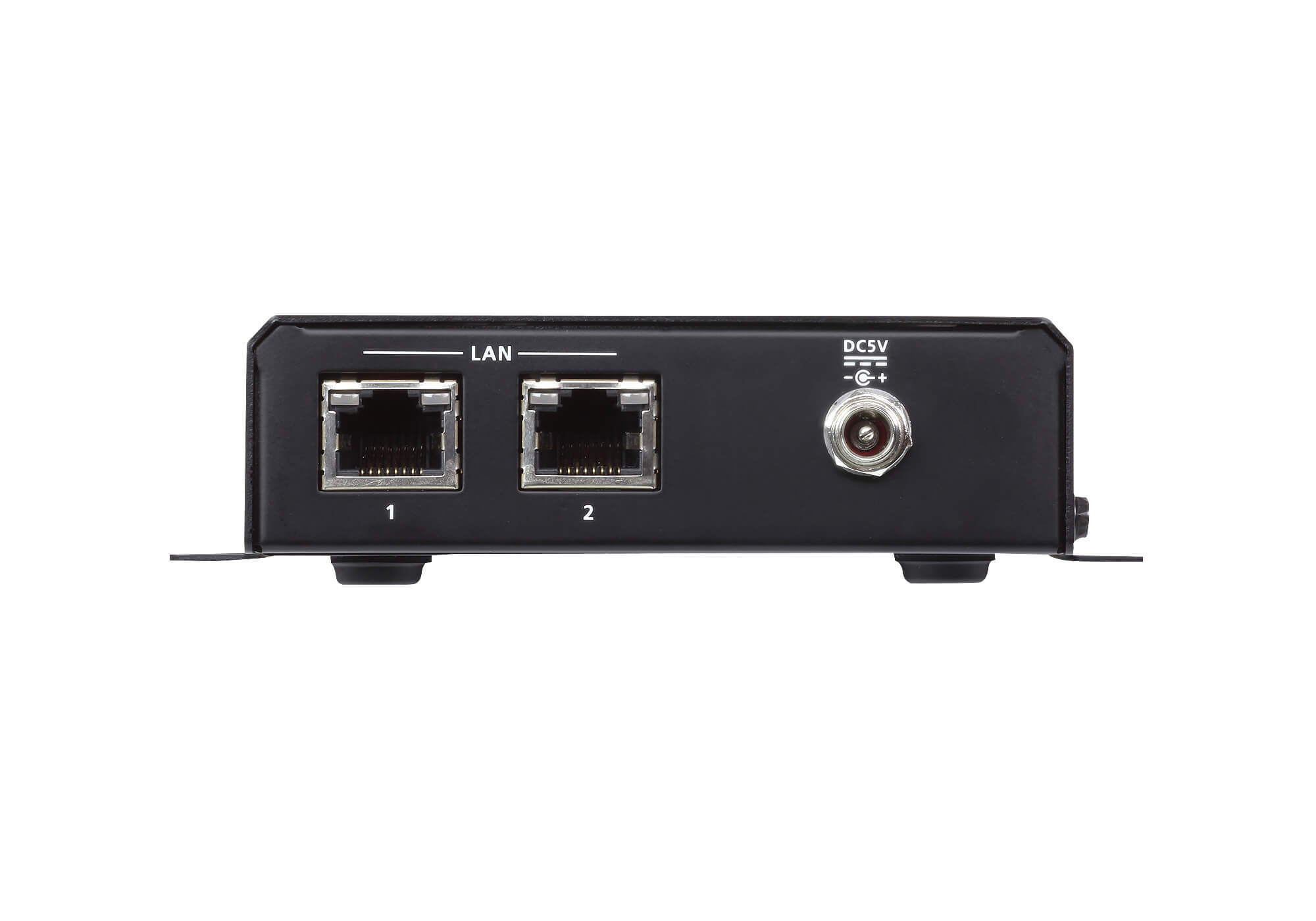

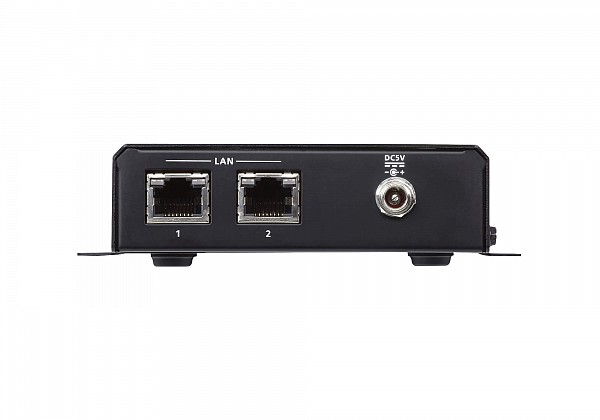

Unit To Unit 2 x RJ-45 Female
Power 1 x DC Jack (Black) with locking
Control
IR 1 x Mini Stereo Jack Female (Black)
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB 2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection 3 x Push buttons
Power Consumption DC5V:4.53W:43BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) with bracket 14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)
