• Category 7 shielded RJ45 female connector, Keystone jack type.
• 8P8C.
• STP and toolless (does not require the use of tools).
• Excellent quality.

CAT.7 STP TOOLLESS KEYSTONE KSNT-TLSS-ABL-S7

MATERIAL

• BRACKET : NICKEL SILVER ALLOY.
• KEYSTONE JACK HOUSING : ZINE ALLOY,NICKEL PLATED.
• REAR HOUSING : ZINC ALLOY,NICKEL PLATED.
• KEYSTONE JACK LATCH : PC+ABS,UL94V-0.
• CONTACT HOLDER : PC,UL94V-0.
• SHUTTER : PC,UL94V-0.
• SPRING : SUS304 .
• JACK CONTACTS : PHOSPHOR BRONZE,50U" GOLD PAINTING.
• IDC PLASTIC : PC,UL94V-0.
• IDC TERMINALS : PHOSPHOR BRONZE,TIN OVER NICKEL UNDERCOAT.

PHYSICAL CHARACTERISTICS

• INSERTION LIFE : 750 MATING CYCLES WITH FCC COMPLIANT 8P PLUG.
• PLUG RETENTION FORCE : 11 LBF MINIMUM.
• DURABILITY : 30 TERMINATION CYCLES.
• CONTACT COMPATIBILITY : ACCOMMODATES 22 TO 24 AWG SOLID.
• OPERATING TEMPERATURE RANGE : -10 C TO 60 C.
• STORAGE TEMPERATURE RANGE : -40 C TO 68 C.
• HUMIDITY : 10% TO 90% RH (NON-CONDENSING).

ELECTRICAL

• INSULATION RESISTANCE : 500 MΩ MINIMUM.
• DC CURRENT RATING : 1.5 Amps.
• INPUT TO OUTPUT D.C. RESISTANCE : 100 mΩ MAXIMUM.
• CONTACT RESISTANCE : 20 mΩ MAXIMUM.
• VOLTAGE PROOF (CONTACT TO CONTACT) : 1000 V AC.
• VOLTAGE PROOF (CONTACT TO SHIELD) : 1500 V DC.
• NOTE
• ˙ ONLY ACCEPT RJ-45 8P8C PLUG

ACCORDING TO：ANSI/TIA-568.2-D
ISO/IEC 11801-1
IEC 60603-7
IEEE 802.3bt Power over Ethernet Plus Plus(4PPoE) application
IEC 60512-99-002 Mating and un-mating connectors under electrical load

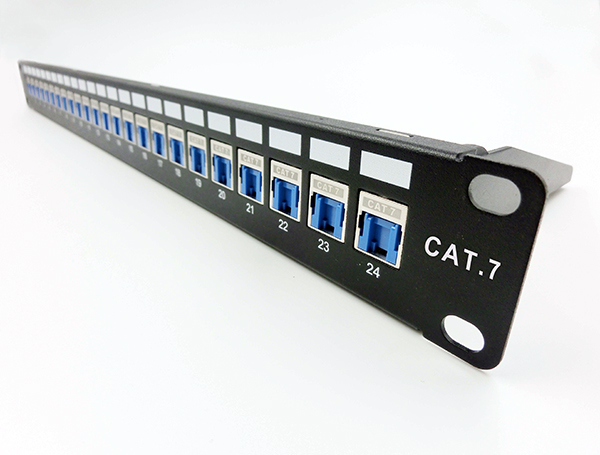

CAT.7 STP PATCH PANEL - BLANK AKSKJF24-S7D-B-BK

MATERIAL

• PANEL-FRONT : SPCC BLACK POWDER PAINTING COAT FINISH.
• PANEL-BACK : SECC WITH NICKEL UNDERCOAT.
• WIRE MANAGEMENT : SPCC BLACK POWDER PAINTING COAT FINISH.

PHYSICAL CHARACTERISTICS

• OPERATING TEMPERATURE RANGE : -10 C TO 60 C.
• STORAGE TEMPERATURE RANGE : -40 C TO 68 C.
• HUMIDITY : 10%~90%RH.
