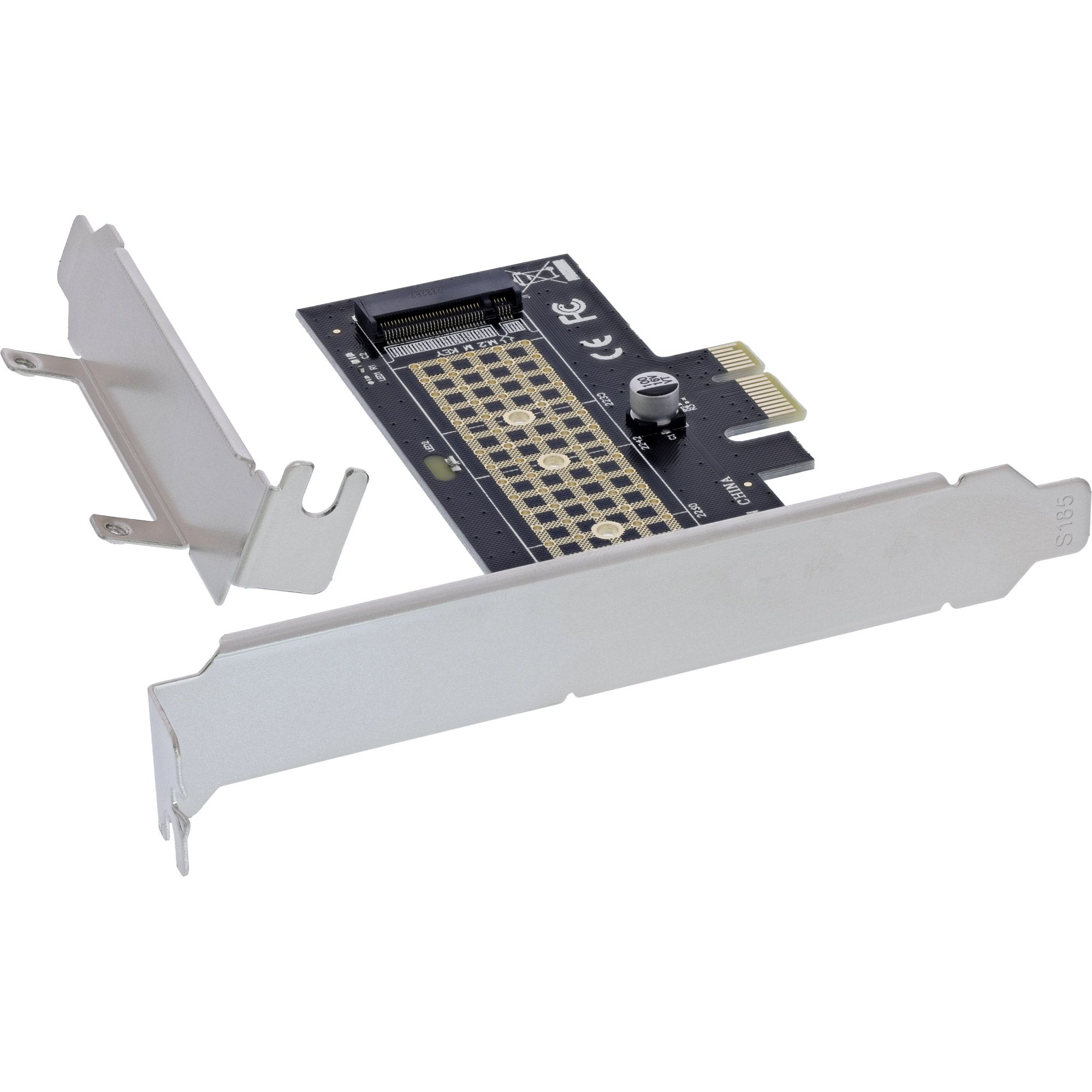

The InLine® PCI Express card expands the system with an internal NVMe M.2 slot, which allows you to connect an M.2 (Key M) SSD. Thanks to the PCIe 3.0 x1 interface with a data transfer rate of up to 1 Gb/s, the card is ideal for systems that require additional fast storage.

Automatic lane detection during boot ensures optimal system integration. The M.2 SSD is powered directly via the PCIe (3.3 V) bus and an LED indicator provides information on the current operating and activity status.

Technical data:

Bus & PCIe type: PCIe 3.0 x1 (operational in x1, x4, x8 and x16 slots)
Connection – interfaces:
- 1 M.2 slot (Key M) for NVMe SSD
- Supported module size: 2230, 2242, 2260, 2280
Dimensions: 95 mm x 52 mm (PCIe card)
Data rate: maximum about 1 Gb/s

Operating conditions:

Operating temperature: from -40 °C to +85 °C

Features:

Automatic detection of lane configuration during startup
Onboard LED Indicator (1x LED Reading/Writing Activity)
The M.2 NVMe SSD drives its power directly from the PCIe bus (3.3 V)
No additional drivers required

System Requirements:
Hardware:

PC with a free PCIe slot (x1, x4, x8 or x16)
Motherboard that supports PCIe 3.0 or higher

Supported operating system:

Windows: 11, 10, 8, 8.1
Windows Server: 2012 R2
Linux: native support (Fedora, SUSE, Ubuntu, Red Hat)

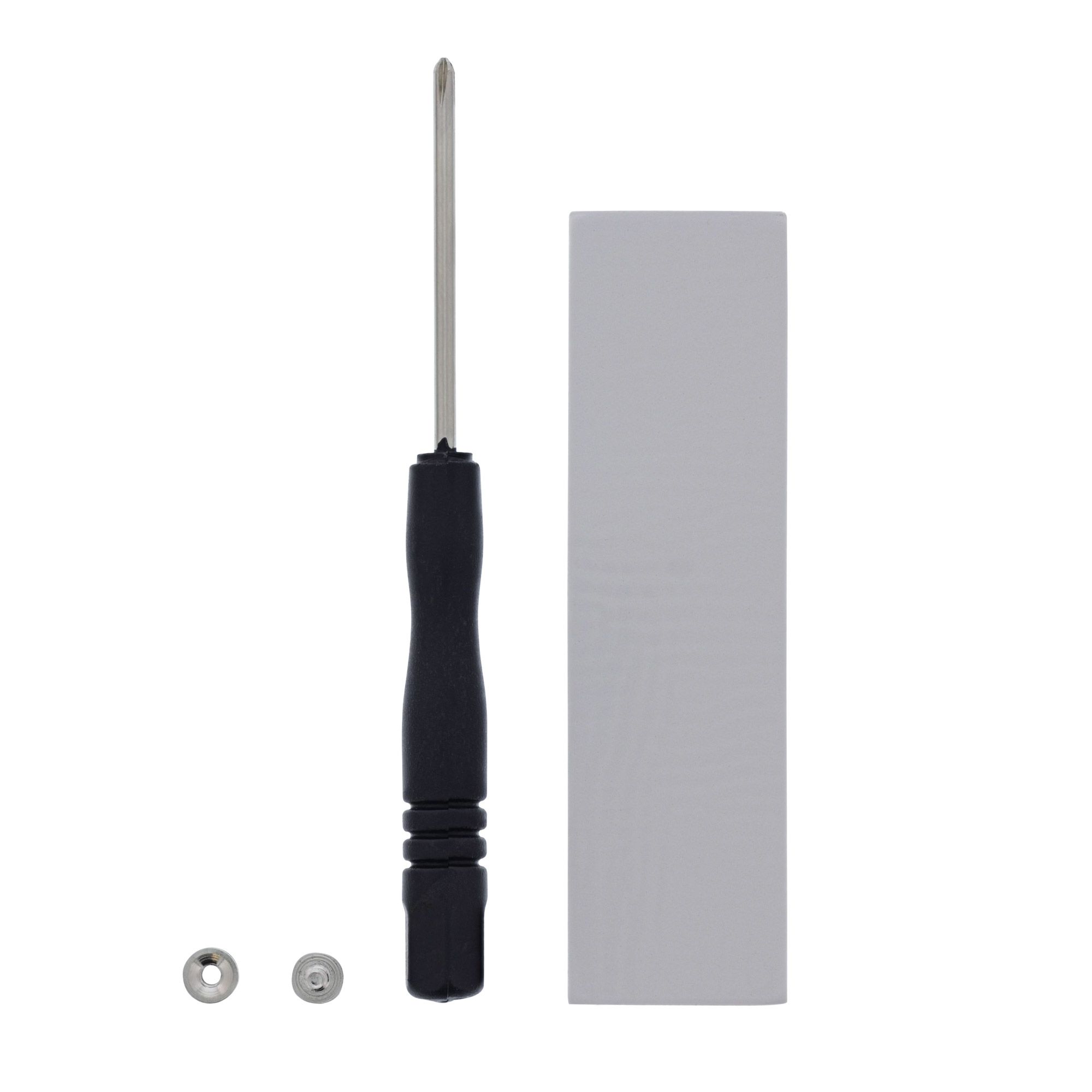

Scope of delivery:

1 x InLine® PCI Express card at 1x NVMe M.2 internal
1 x bracket for low profile slots
1 manual screwdriver
2 screws
1 thermal conduction bearing
1 x instruction manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing
