4G
Network Type 4G
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
(2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41
(2600/2300/2500 MHz)

3G:
DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)
Speed Download Speed 150 Mbps
Upload Speed 50 Mbps
SIM Type 1×Nano SIM Card

HARDWARE
Interface 1× 100 Mbps WAN/LAN Port (PoE In)
1× Nano SIM Card Slot
1 × DC Port
Buttons 1× Reset Button
Power 12V/1A DC
48V/0.375A Passive PoE
44-57V/0.35A 802.3af
Dimensions (W x D x H) 8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)
Antennas 2 × Detachable LTE Antennas

WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n
Frequency 2.4 GHz
Signal Rate 300 Mbps
Reception Sensitivity 11g 54M: -74 dBm
11n HT20: -73 dBm
11n HT40: -70 dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

SOFTWARE FEATURES
Security DoS, IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes 3G/4G Router, Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
Protocols IPv4, IPv6
Guest Network 2.4 GHz guest network
Administration Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS

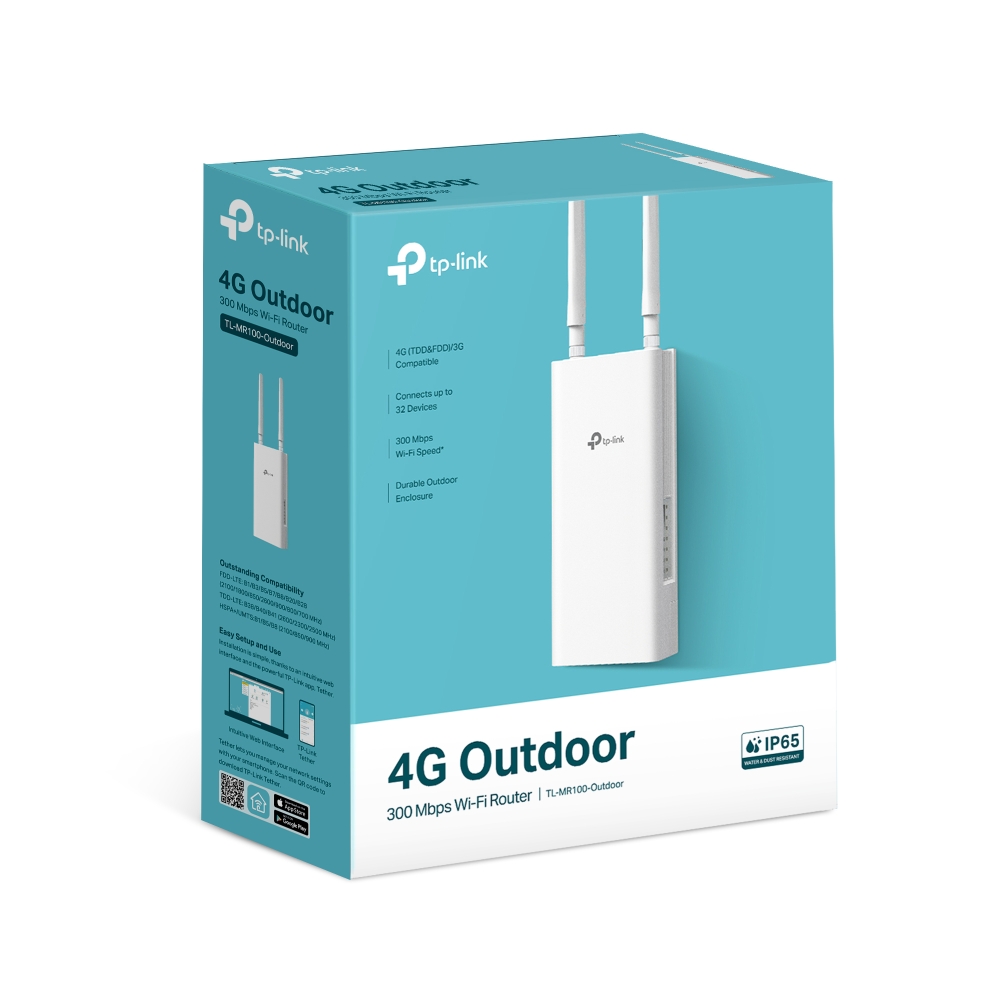

Package Content 1× TL-MR100-Outdoor Unit
1× 10-meter RJ45 Ethernet Cable
1× PoE Adapter
1× AC Power Cord
1× Quick Installation Guide
Window/Pole/Wall Mounting Kits
Requirements Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
*You are recommended to use the latest version
Certifications CE, RoHS
Environment Operating Temperature: -30°C~60°C (-22°F~140°F)
Storage Temperature: -40°C~70°C (-40 °F~158 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
