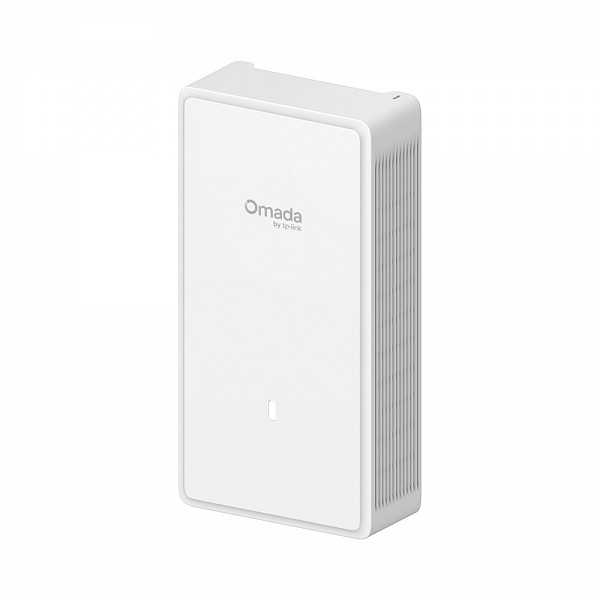

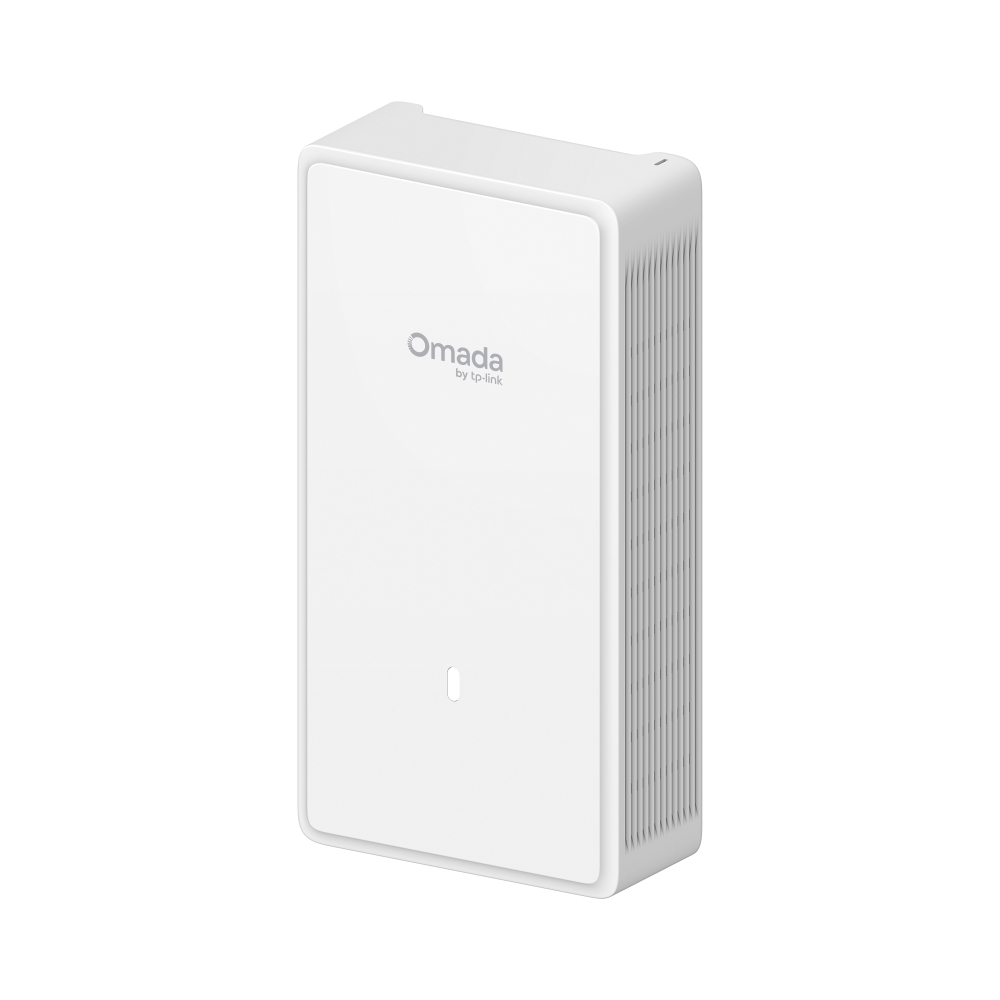

Tp-Link ACCESS POINT BE9300 Wall Plate Wi-Fi 7
Κωδικός plus26: 173-462552
Κωδικός Εργοστασίου (MPN): EAP775-Wall
- 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- Versatile & Aesthetic Wall-Mounted Design: Slim, versatile wall-mounted design sits flush against the wall for a seamless look and reliable Wi-Fi 7 performance.
- Made to Be Discreet with Additional Paintable Cover: Includes an additional paintable cover that blends seamlessly into any wall or interior style.§
- Anti-Theft Design for Robust Physical Security: Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment.
- Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out). The PoE out feature requires 802.3bt input.
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.
HARDWARE FEATURES
Interface • Uplink: 1× 2.5G Ethernet Port
• Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports
(Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3at/bt PoE
PoE Out Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.
The PoE Out feature requires 802.3bt input.
Max. Power Consumption 43.35W(with 25W PoE Out)
Dimensions ( W x D x H ) 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm)
Antenna 6× Internal Antennas
• 2.4 GHz: 2× 5 dBi
• 5 GHz: 2× 5.5 dBi
• 6 GHz: 2× 5.5 dBi
Bluetooth V5.2
Mounting Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 1050 ft² (100 m²)*
Concurrent Clients 380+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz, 5 GHz, and 6 GHz
Signal Rate • 6 GHz: Up to 5765 Mbps
• 5 GHz: Up to 2882 Mbps
• 2.4 GHz: Up to 688 Mbps
Wireless Functions • MLO‡
• 4K-QAM‡
• Multi-RUs‡
• 320 MHz Bandwidth‡
• 24 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming△
• Beamforming
• Rate Limit (Based on SSID/Client)
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication△
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power 6-20 dBm (2.4 GHz, ERIP)
6-23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP)
6-27.5 dBm (5 GHz, U-NII-2C, ERIP)
6-23 dBm (6 GHz,ERIP)
Management Features
Omada App Yes
Centralized Management • Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of an Omad Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog System Log
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of an Omada controller.
OTHERS
Certification CE, RoHS
Package Content • EAP775-Wall
• Paintable Cover
• Installation Guide
• Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
