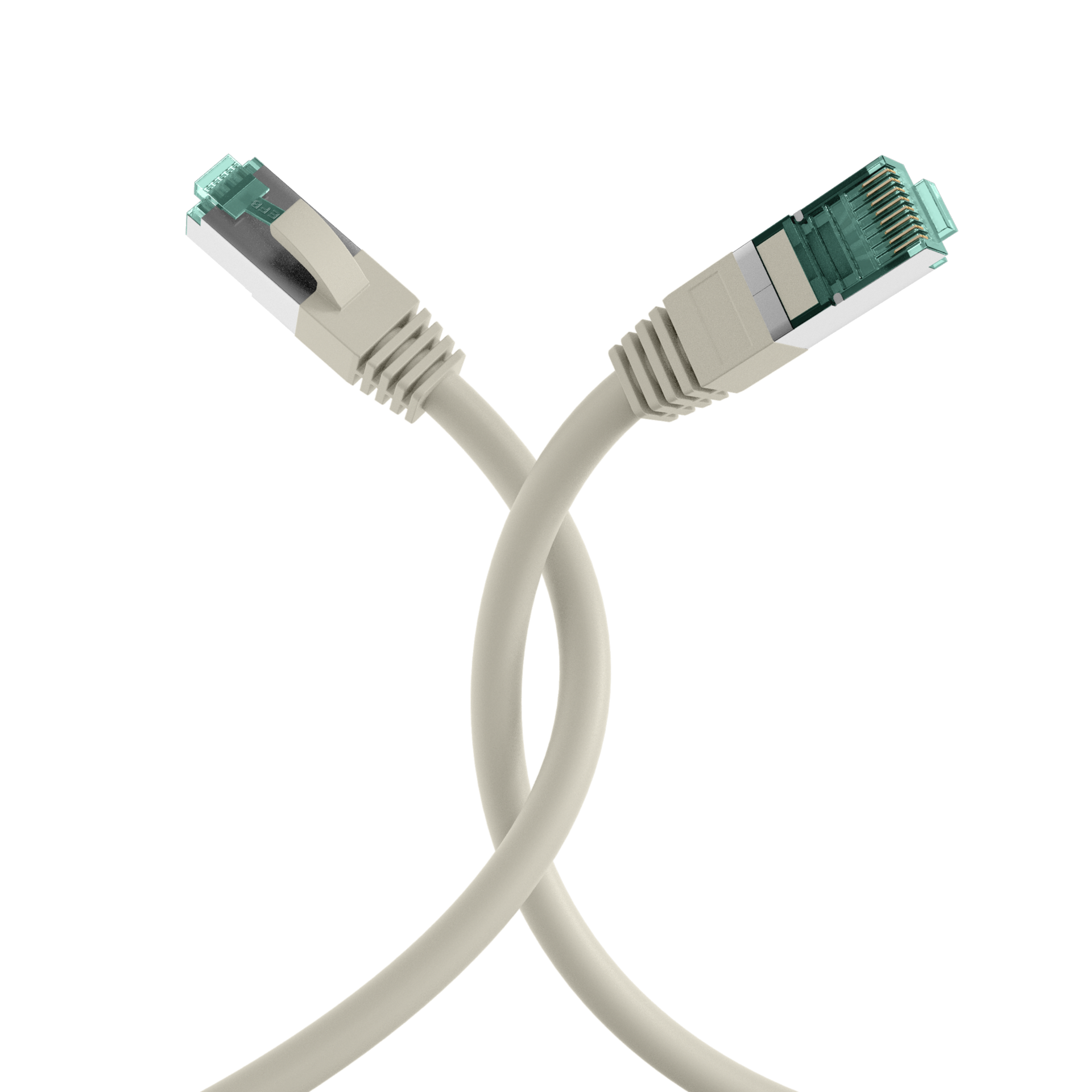

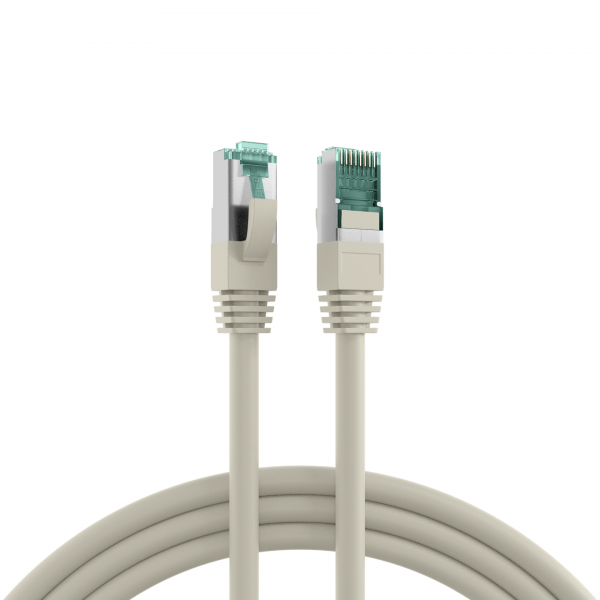

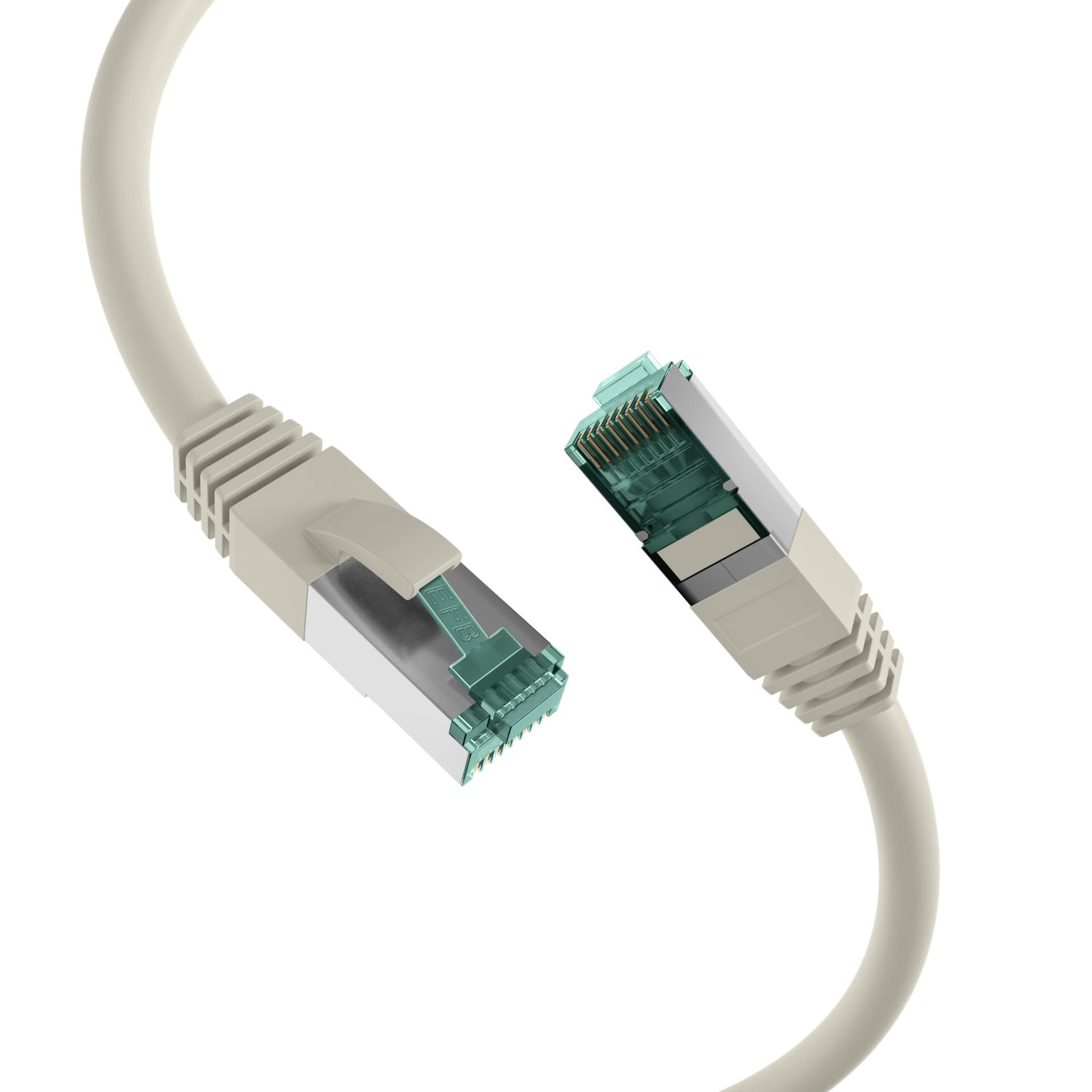

EFB RJ45 Patch Cord Cat.6A S/FTP LSZH grey 3m

Κωδικός plus26: 173-462539

Κωδικός Εργοστασίου (MPN): MK6001.3G

Εγγραφείτε για τιμή

This Cat.6A (TIA) data cable from the EFB-Elektronik brand supports data transmissions up to 10Gbit. The S/FTP shielding reliably protects against interference and ensures high signal quality. Since it is a Cat.6A (TIA) network cable, it supports a frequency range of up to 500MHz, which enables high data transmission performance.

• Increase interference immunity in electromagnetically charged environments – double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.

• Cover fire protection requirements in compliance with standards – flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.

• Power and connect end devices via one cable – reduces cabling effort because data and power are transmitted via 4PPoE according to IEEE802.3bt on one line (fewer power supplies/sockets, faster installation).

The S/FTP patch cable has double shielding, which effectively reduces electromagnetic interference. The temperature range of the cable is -20 – 60 °C. The wide range of possible applications is supported by the bending radius of >30 mm. The network cable is IP20 rated. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.

• Cat.6A (TIA)
• Connector: RJ45 8(8) to RJ45 8(8) with green RJ45 connectors
• Shielding: S/FTP cable with 4x2 x AWG27/7
• Cable shape: round
• Pin assignment: 1:1 according to TIA/EIA 568B
• Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
• Gold-plated contacts
• Sheath: LSZH sheath material
• Outer diameter: 6.0 mm
• With an injected anti-kink grommet
• Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
• Degree of protection: IP20
• With a punctual screen contact
• With locking lever protection
• Mating cycles: ≥750
• With length print
• Brand: EFB-Elektronik

AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: moulded-on
Area of application: Data center, Industrial Ethernet, Structured cabling
Bending radius: 30 mm
Cable construction: 4x2
Cable shape: round
Cable type: S/FTP
Cabling standard: ANSI/TIA-568, EN50173, ISO/IEC 11801
Category: 6A (TIA)
Colour anti-kink sleeve: grey
Colour outer sheath: grey
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 standard green
Contact Resistance: 30 mΩ
Contacts: Vergoldet
Current capacity: max. 1 A
Fire retardant version: acc. IEC60332-1
Halogen free: acc. IEC60754-2
Harmonised Standard: EN 50575
Impedance: 100 ±15 Ω
Insulation Resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: True
Loop resistance: 370 Ω/km
Low smoke: acc. IEC61034
Mating cycles: ≥ 750
Model: shielded
NVP value: 74 %
Oil resistant: no
Operating-/ tempering voltage: max. 50 V DC
Operating Temperature: -20 – 60 °C
Outer diameter of the cable: 6.0 mm
Ozone resistance: No
Pin assignment: 1:1
Printing: Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de
Raw cable: Cat.6A
Resistance unbalance: 3 %
Resistant to chemicals: False
Silicone-free: True
Suitable for degree of protection (IP): IP20
Tape width: 500MHz
Test voltage: 1000 (V DC, 1min) core/core und core/screen
Total screening: 80 %
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: False
UV resistant: no
