5G/4G/3G

Network Type 5G:
]N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/1500/1500/3700/3500 MHz)

4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32(2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43(2600/2300/2500/3500/3700 MHz)

3G:
DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)
Speed 5G:
Download Speed 4.67 Gbps
Upload Speed 1.25 Gbps

4G LTE Cat19:
Download Speed 1.6 Gbps
Upload Speed 211 Mbps

HARDWARE FEATURES

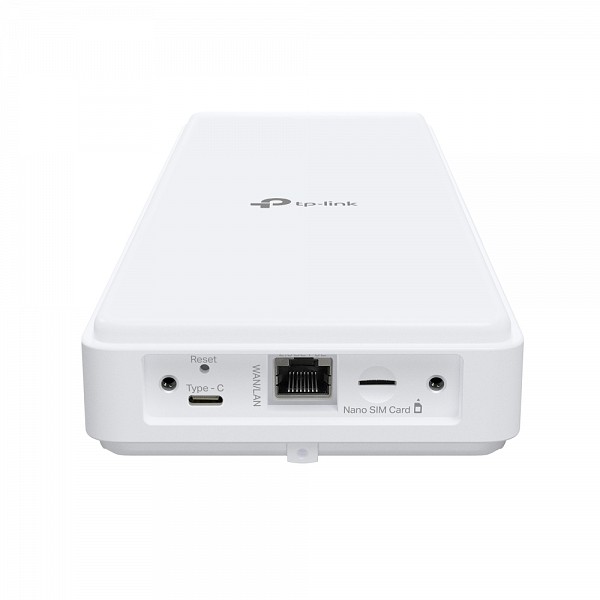

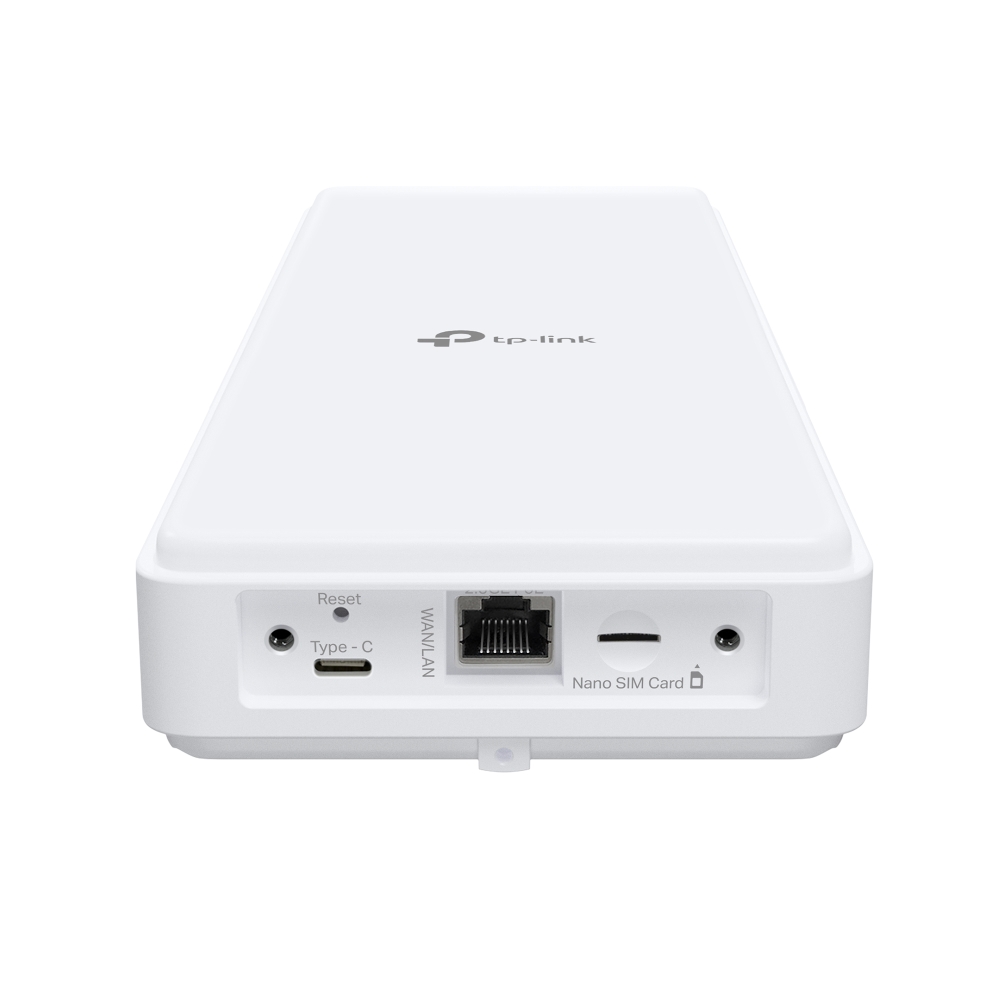

Interface 1 × 2.5Gbps WAN/LAN Port (PoE In)
1 × Nano SIM Card Slot
1 × Type-C Port (only for debug)
Button RESET Button
External Power Supply Power: 48V/0.5A
802.3at PoE: 42-57V/0.6A
Dimensions ( W x D x H ) 9.2 x 4.3 x 1.4 in (233x 110x 37 mm)
Antenna Internal NR/LTE Antennas + Internal Wi-Fi Antennas

SOFTWARE FEATURES

Quality of Service Bandwidth Control
Operating Modes 3G/4G/5G Router, Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features Access Control, Local Management, Remote Management, reboot schedule
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
Firewall Security DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control
Protocols IPv4, IPv6
Guest Network 2.4 GHz guest network x 1, 5 GHz guest network x 1
VPN Server PPTP VPN, IPSec VPN, OpenVPN

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz
Reception Sensitivity • 5 GHz:
11ax HE20: -64 dBm, 11ax HE20 MCS11 -64 dBm, 11ax HE20 MCS0 -94 dBm
11ax HE40: -61 dBm, 11ax HE40 MCS11: -61 dBm, 11ax HE40 MCS0 -91 dBm
11ax HE80: -59 dBm, 11ax HE80 MCS11: -59 dBm, 11ax HE80 MCS0 -89 dBm
11ac VHT20: -70 dBm, 11ac VHT20 MCS8: -70 dBm
11ac VHT40: -67 dBm, 11ac VHT40 MCS9: -67 dBm
11ac VHT80: -64 dBm, 11ac VHT80 MCS9: -64 dBm

• 2.4 GHz:
11ax HE20: -66 dBm, 11ax HE20 MCS11: -66 dBm, 11ax HE20 MCS0 -94 dBm
11ax HE40: -62 dBm, 11ax HE40 MCS11: -62 dBm, 11ax HE40 MCS0 -91 dBm
11ac VHT20: -71 dBm, 11ac VHT20 MCS8: -71 dBm
11ac VHT40: -67 dBm, 11ac VHT40 MCS9: -67 dBm
Wireless Security WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3 encryptions
Wireless Function Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
EIRP (CE) ≤20dbm(2.4GHz)
≤23dbm(5G band1/band2)
≤30dbm(5G band3)

OTHERS

Certification CE, RoHS

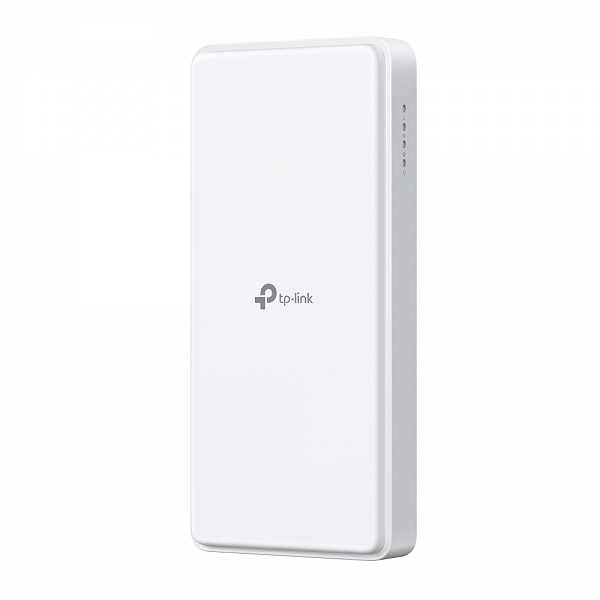

Package Content • 5G AX3000 Wi-Fi 6 Outdoor Router Archer NX500-Outdoor
• 10-meter Flat RJ45 Ethernet Cable
• PoE Adapter
• AC Power Cord
• Grounding Terminal
• Quick Installation Guide

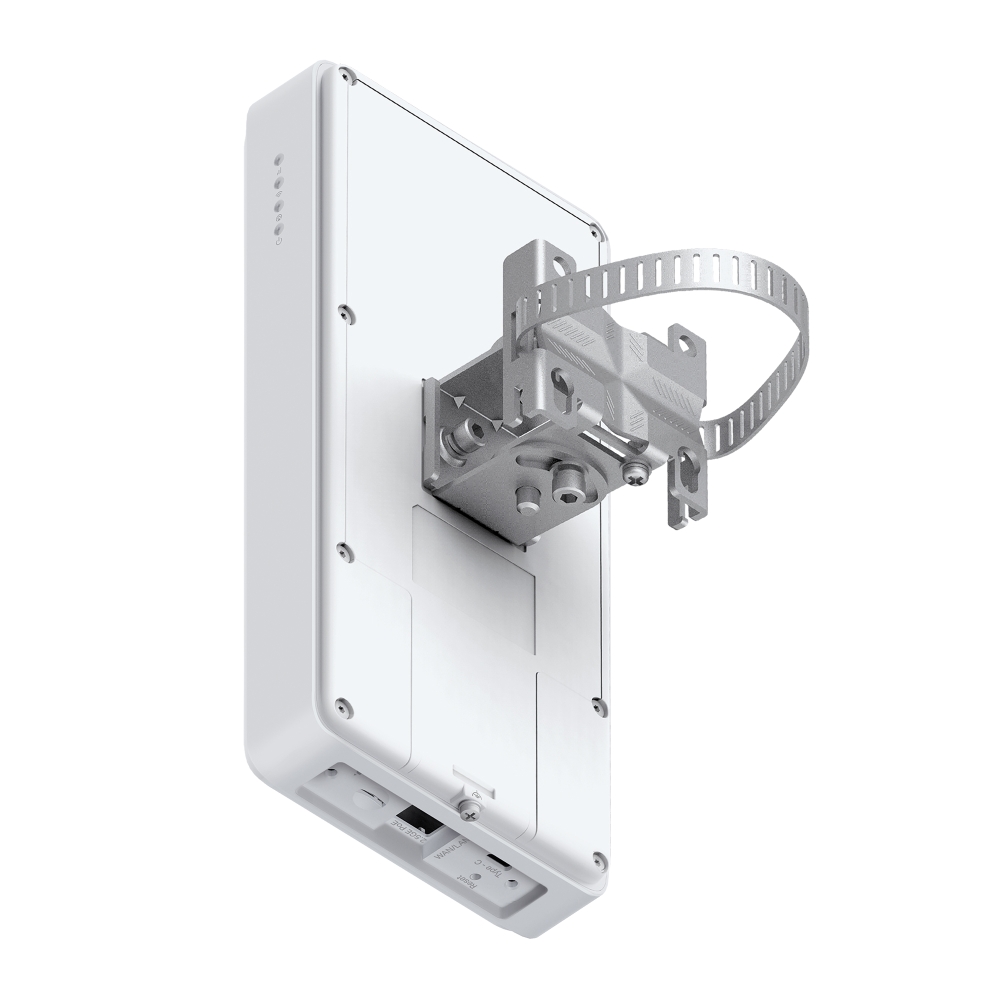

• Window/Pole/Wall Mounting Kits
Requirements • Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
*You are recommended to use the latest version

• Nano SIM Card
Environment • Operating Temperature: -30℃~60℃ (-22°F~140°F)
• Storage Temperature: -40°C~70°C (-40 °F~158 °F)
• Operating Humidity: 5%~90% RH
• Storage Humidity: 5%~90% RH
