The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories and the home. The power strip can be mounted in the 19" area of the cabinet in a space-saving 1U.

Technical details

• Horizontal 19" installation in the rack
• Rotation of the outlets: 45°
• Housing: Aluminum profile
• Plastic components made of ABS UL-94V-0

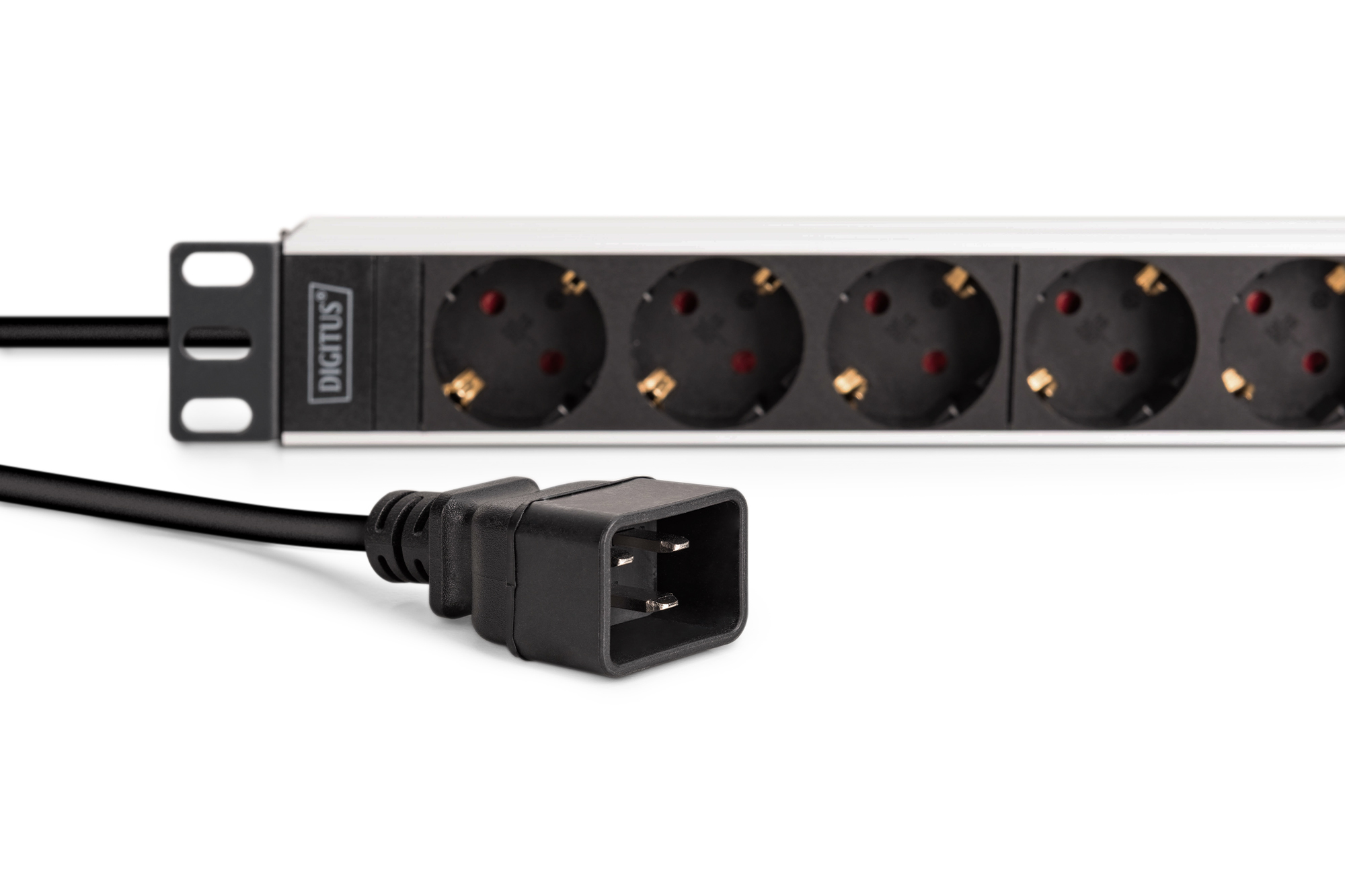

• Input: Plug IEC60320 C20, 230 Vac / 16 A
• Output: appliance sockets 9 x socket outlet with earthing contact DIN 49440, max. 16 A per output
• Supply cable: cable cross-section: 1.5 mm² , length: 2 m
• Dimensions: 482.6 mm (19") x 45 (1U) x 45 mm (HxWxD)

Attributes

• Current: 16 A
• Input Plug: IEC 60320 C20 inlet
• Installation: Rack 1U
• Metering: PDU Metering
• Outlets: CEE 7/3
• Volts: 230 V
• Inch form factor (IEC 60297): 482.6 mm (19")

Package content

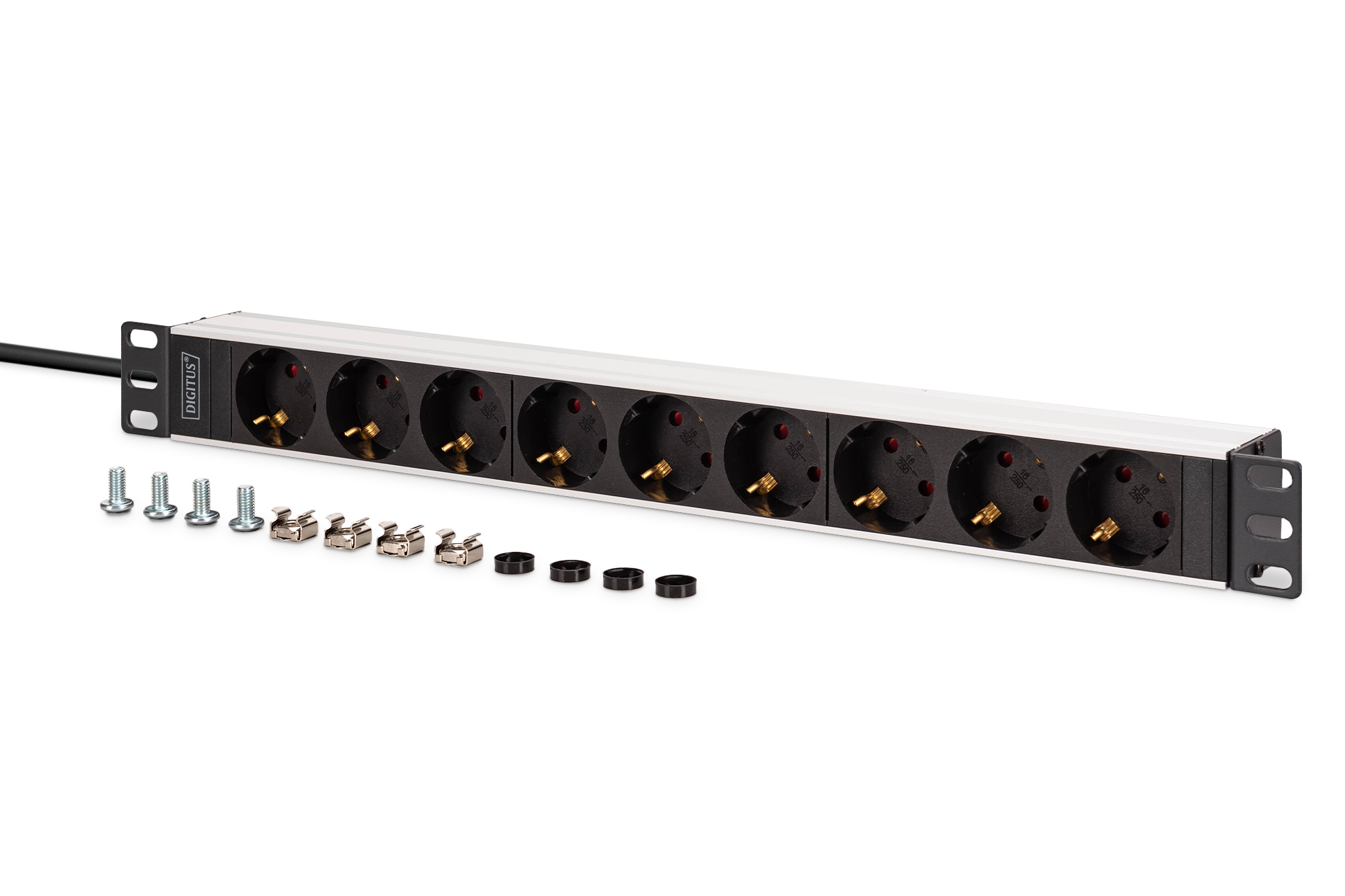

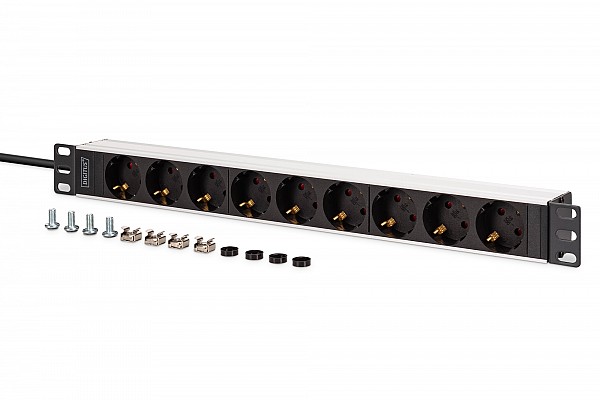

• 1 socket strip, 2 mounting brackets; 1 safety instructions
