CAMERA

Image Sensor 1/3” Progressive Scan CMOS Starlight Sensor
Lens Focal Length: 4 mm
Aperture: F2.0
Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical)
Night Vision 850 nm IR LED (40 ft / 12 m)
Interface & Button 1× RESET Button
1× MicroSD Card Slot (Up to 512GB)
Pan/Tilt Range Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 69°

VIDEO & AUDIO

Maximum Resolution 3K 5MP (2880×1620 px)
Frame Rate 15/20/25/30 fps (Default 15fps)
Video Compression H.264
Live View Yes
Image Enhancement 3D DNR
BLC
Audio Input & Output Built-in Microphone and Speaker
Audio Communication Two-Way Audio with Noise Cancellation
Siren Volume 99dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards >
Cloud Storage Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

AI Detection Motion Detection
Person Detection
Line-Crossing Detection
Tamper Detection
BabyCry Detection
Vehicle Detection
Pet Detection
Meow Detection
Bark Detection
Glass-Breaking Detection
Activity Zones Yes
Output Notification System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity Connect via Wi-Fi
Wireless Connectivity IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
RTSP Yes
ONVIF Yes

SECURITY

Security On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

POWER

Power Source 9V DC Power Adapter
Input Voltage 100-240 V, 50/60 Hz
Output Voltage 9V, 0.6 A (DC Power)

GENERAL

Smart Integration Google Assistant, Amazon Alexa
Mounting Options Tabletop
Ceiling-Mounted
Operating Temperature 0℃~40℃
Storage Temperature -20℃~60℃
Operating Humidity 10%~90% RH, Non-condensing
Storage Humidity 5%~90% RH, Non-condensing
Dimensions ( W x D x H ) 3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm)

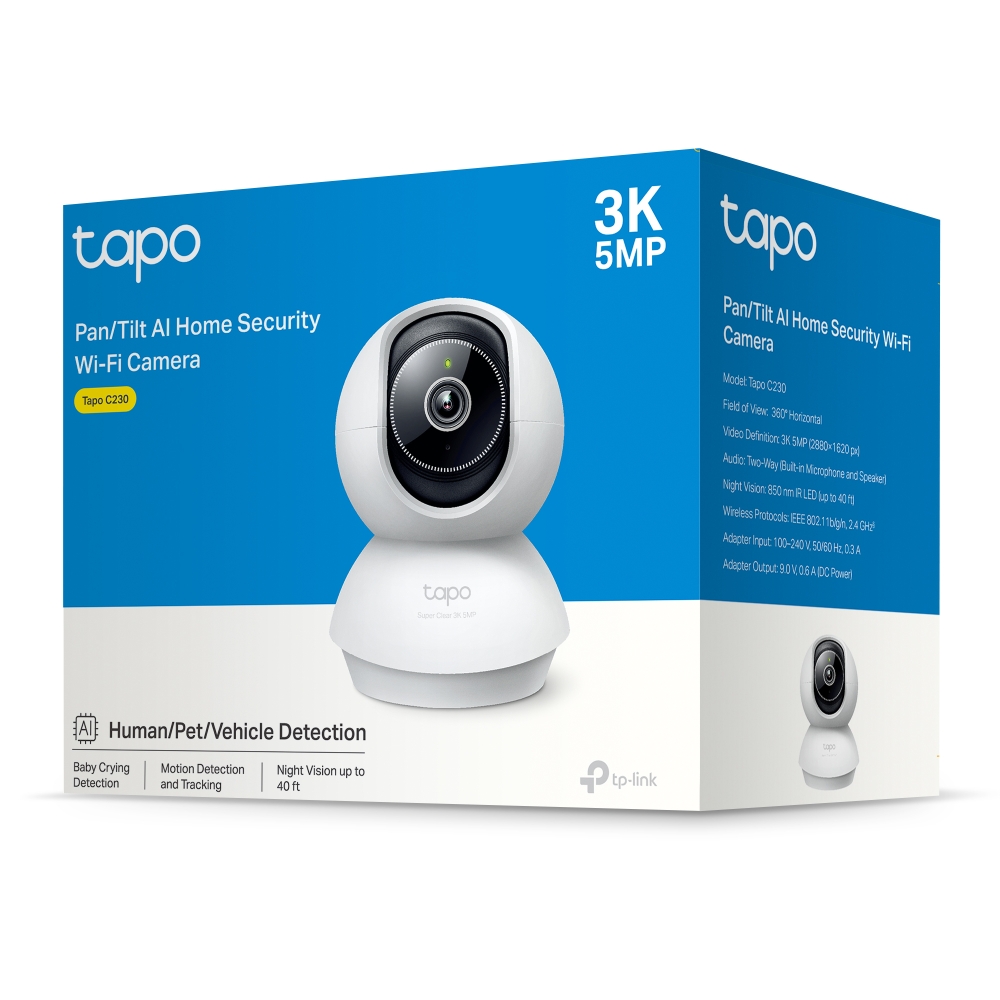

Package Content Tapo C230 Camera
Power Adapter
Quick Start Guide
Mounting Screws
Mounting Anchors
Mounting Template
Camera Base
Certifications CE, FCC, RCM, WEEE, EAC
