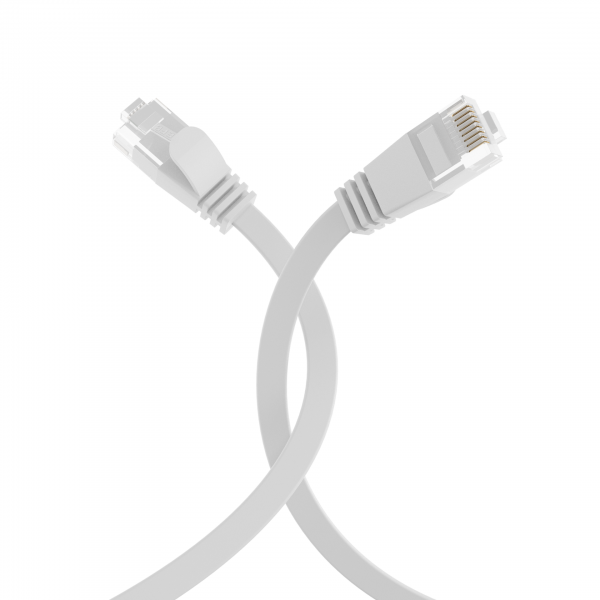

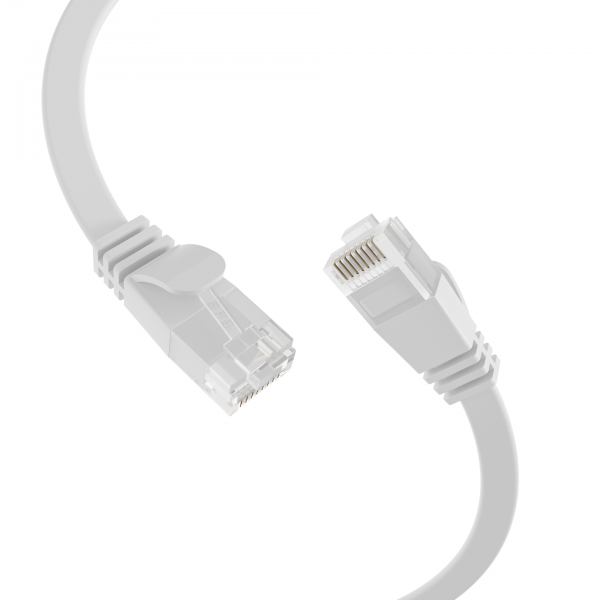

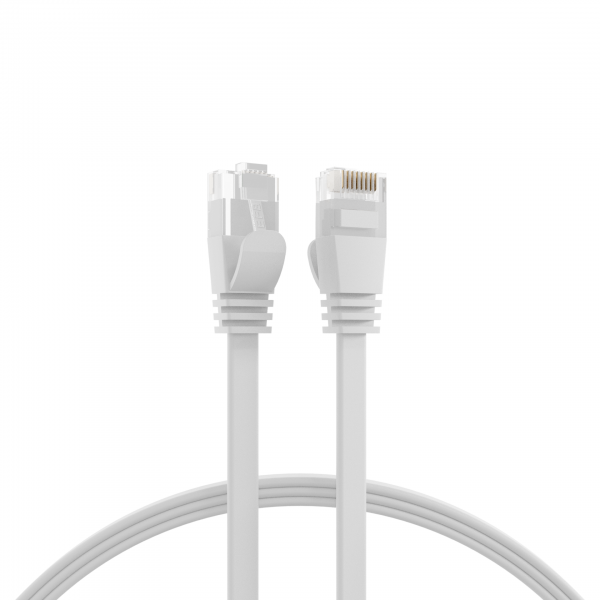

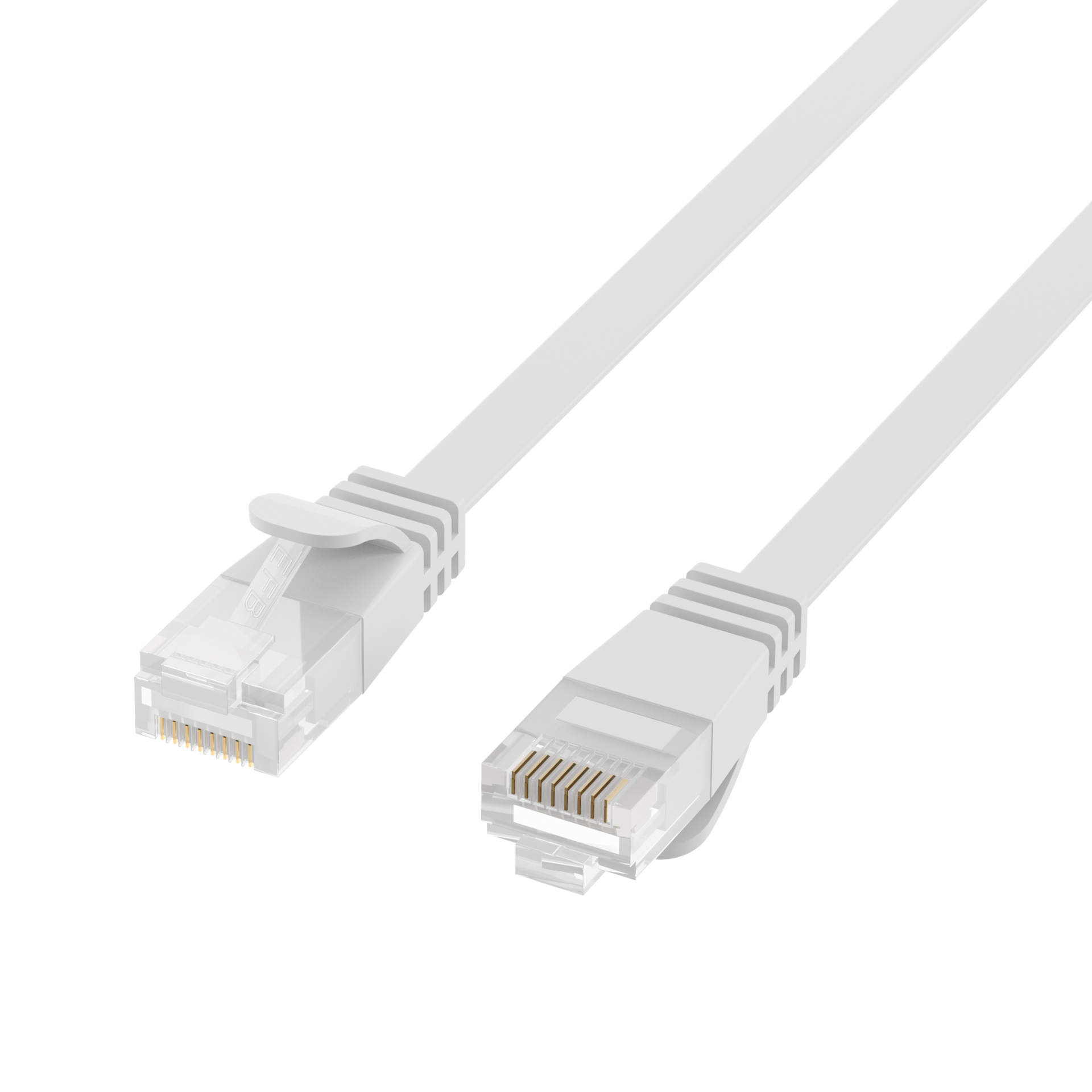

RJ45 flat patch cable Cat.6A U/UTP PVC
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat.6A ( TIA)
• U/UTP cable with AWG30/7
• Sheath material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
< br>The jacket of the patch cable is made of polyvinyl chloride (PVC) material. The cable also offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B. Suitable for the temperature range -20 – 55 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling. This achieves a frequency range of 500 MHz.
- AWG-size: 30/7
- Allocation: acc. TIA/EIA 568B
- Anti-kink sleeve: moulded-on
- Area of application: Industrial Ethernet
- Area of application: Structured cabling
- Bending radius: >10 mm
- Cable construction: 4x2
- Cable shape: flat
- Cable type: U/UTP
- Cabling standard: EN50173
- Cabling standard: ISO/IEC 11801
- Cabling standard: ANSI/TIA-568
- Category: 6A (TIA)
- Colour anti-kink sleeve: white
- Colour outer sheath: white
- Conductive shield: No
- Conductor Material: Copper
- Conductor resistance DC: 376 Ω/km
- Connector: IEC 60603-7-41
- Connector type: RJ45 short version
- Contacts: Gold plated
- Current capacity: max. 1 A
- Fire retardant version: acc. IEC60332-1
- Halogen free: False
- Harmonised Standard: EN 50575
- Impedance: 100 ±15 Ω
- Insulation Resistance: 100 MΩ
- Jacket material: Polyvinyl chloride (PVC)
- Length imprint: False
- Locking lever: True
- Loop resistance: 752 Ω/km
- Mating cycles: ≥750
- Model: unshielded
- NVP value: 76 %
- Oil resistant: no
- Operating-/ tempering voltage: max. 50 V DC
- Operating Temperature: -20 – 55 °C
- Outer diameter of the cable: 6.0*1.6 mm
- Ozone resistance: No
- Pin assignment: 1:1
- Printing: SLIM PATCHCABLE U/UTP CAT.6A ***10GE*** www.efb-elektronik.de
- Resistance unbalance: < 4 %
- Resistant to chemicals: False
- Silicone-free: True
- Suitable for degree of protection (IP): IP20
- Tape width: 500MHz
- Test voltage: 1000 (V DC, 1min) core/core und core/screen
- Transmission: 10Gbit
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
- UL approbated: False
- UV resistant: False
