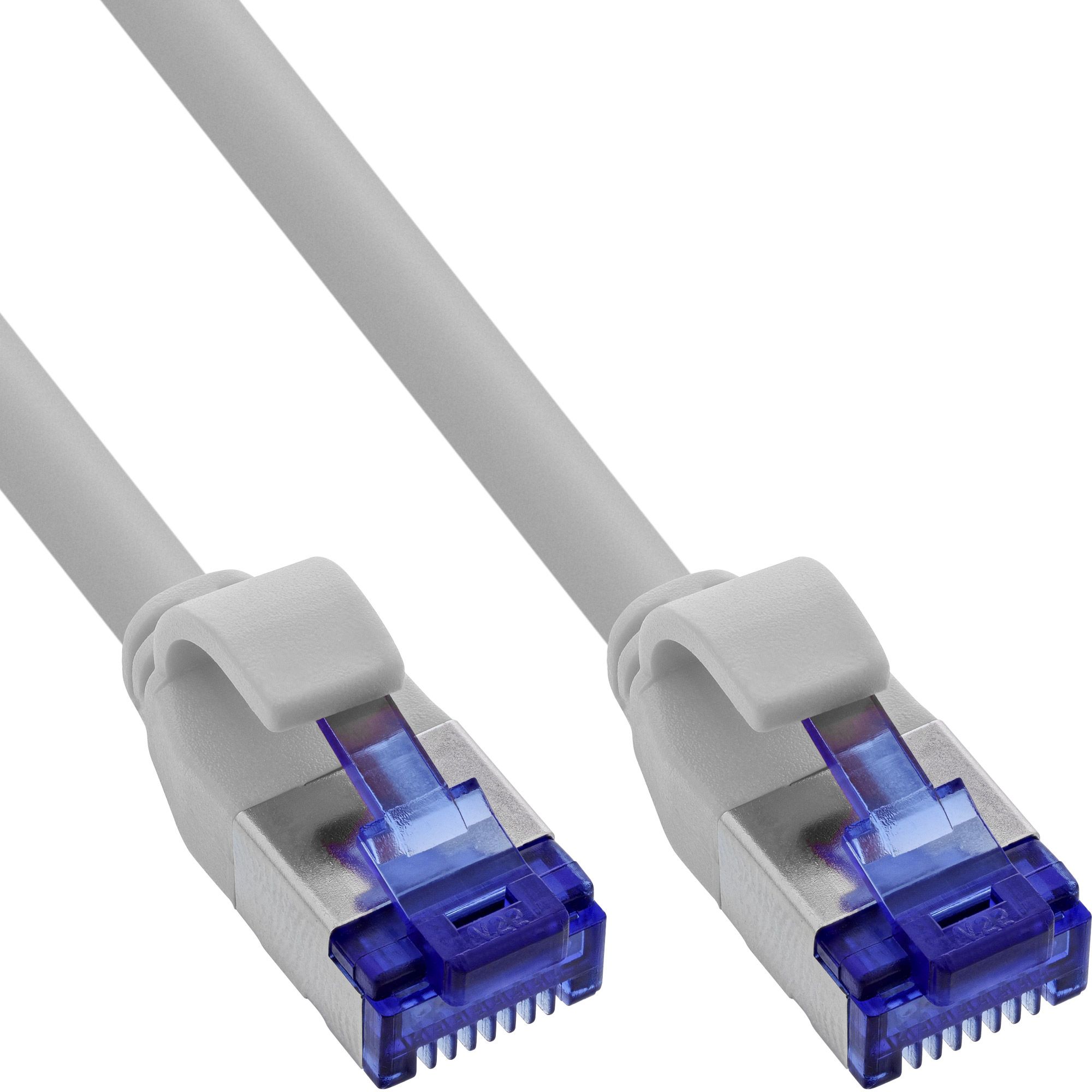

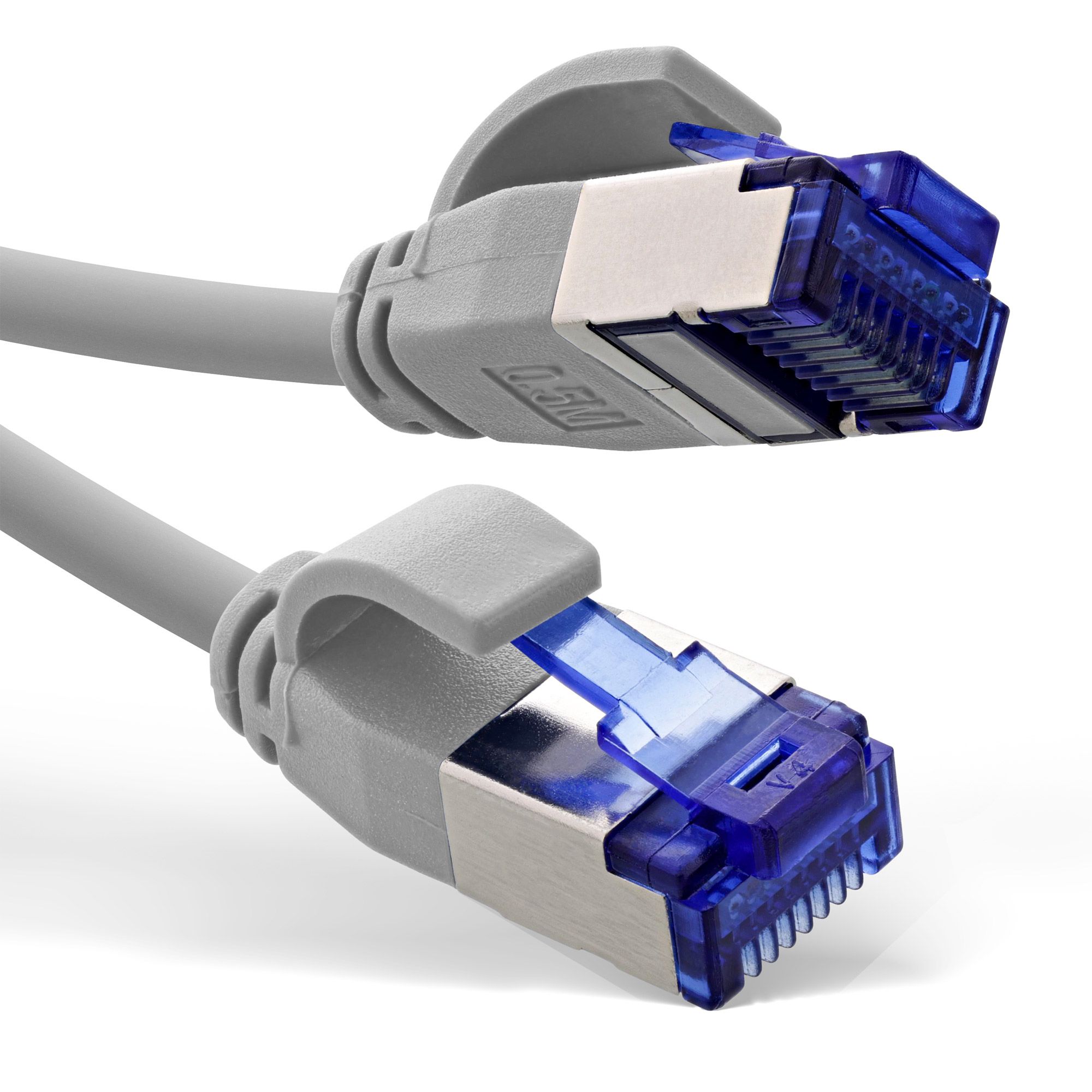

Inline SFTP 0.5m Cat6a Slim poe 87W flex LSZH
Κωδικός plus26: 173-458753
Κωδικός Εργοστασίου (MPN): 74955
The InLine® Slim Cat.6A S/FTP patch cable series combines highest network performance with maximum space and energy efficiency. Thanks to the particularly slim design with AWG28 conductors, these cables enable a significantly higher port density in network cabinets and ensure improved air circulation, which increases cooling and efficiency.
- Space-saving design for maximum port density: Approx. 40 % less space required than conventional AWG26 patch cables – ideal for network cabinets and server rooms.
- High-quality copper conductors for maximum performance: Full Cat.6A transmission quality with up to 10 Gbit/s over lengths of up to 30 meters.
- PoE support up to 87 watts (4PPoE): Enables energy-efficient operation of IP cameras, access points or VoIP telephones without additional power supply units.
- Sustainable & economical: Approx. 25% material savings reduce transportation and manufacturing costs and improve the CO₂ balance.
- Flexible, safe TPE sheath (LSZH): Flame-retardant, halogen-free and particularly flexible for narrow installation paths.
The InLine® Slim Cat.6A S/FTP patch cable series combines highest network performance with maximum space and energy efficiency. Thanks to the particularly slim design with AWG28 conductors, these cables enable a significantly higher port density in network cabinets and ensure improved air circulation, which increases cooling and efficiency.
In contrast to conventional, thinner AWG32 cables, this cable supports full Cat.6A transmission quality at up to 500 MHz and 4PPoE with up to 87 watts. This makes it the ideal solution for professional applications where a combination of space-saving, PoE capability and high performance is required.
The use of high-quality copper conductors minimizes signal loss and ensures a reliable network connection - even over distances of up to 30 metres. The S/FTP double shielding reliably protects the cable from electromagnetic interference.
In addition to its technical performance, this cable also offers ecological benefits: Approx. 25% less material used reduces transportation costs and, in the long term, environmental taxes in accordance with future Green Law requirements.
The TPE sheath (LSZH) combines flexibility with fire protection: It is halogen-free, flame-retardant and ensures minimal smoke development in the event of fire – ideal for safety-critical applications.
Additional technical specifications:
- Conductor material: Pure copper
- Cable construction: S/FTP (pair and overall shielding)
- Sheath material: TPE (LSZH – Low Smoke Zero Halogen)
- Wire gauge: AWG28
- Operating temperature: -20 to +75 °C
- Outlet diameter: 4.1 mm
- Population: 1:1 according to T568B
- PoE support: Yes, up to 87 watts (4PPoE)
- Article height: 1.6 cm
- Article length: 50 cm
- Article width: 1.5 cm
- Assignment: 1:1
- Colour: Grey
- Conductor material: CU (copper)
- Data transmission rate: 10 Gb/s
- Design: Round cable slim
- Diameter: AWG 28
- Gold plated contacts: Yes
- Length: 0.50 m
- Max. supported PoE standard: 802.3bt
- Max. supported data transfer rate: 10 Gb/s
- Max. supported power: 90 W
- Operation temperature: -20 to +75 °C
- Outer diameter: 4.5 mm
- Packaging volume: 0.0005 m³
- Packing: Retail
- Patch cable category: Cat.6A
- PoE/PoE+/PoE++: Yes
- Sheath: TPE (LSZH)
- Shielding: S/FTP (PiMf)
- Find out more about the different types of shielding in the InLine knowledge database
- Side A: RJ45 plug straight
- Side B: RJ45 plug straight
- Signal: Network
- Storage temperature: -20 to +75 °C
- Type: Cat.6A
- UL: No
- Wire pairs used for power transmission: All
