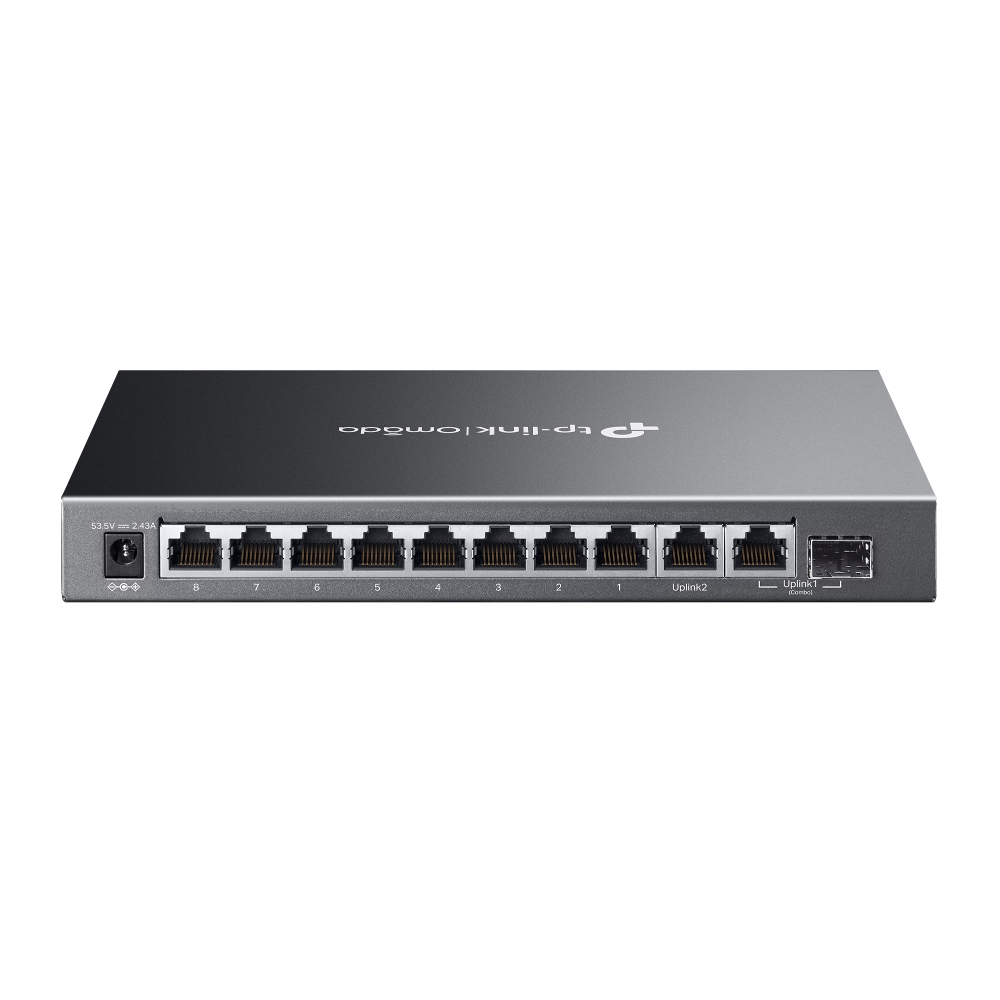

Tp-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

Κωδικός plus26: 173-458193

Κωδικός Εργοστασίου (MPN): ES210GMP

Εγγραφείτε για τιμή

8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports

1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port

123W Power Budget, with up to 30W for each PoE port*

Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features

Centralized Cloud Management via the web or the Omada app†

Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking

Automatic Loop Prevention, VLAN, and IGMP Snooping

Fanless design for silent operation

Durable metal casing and desktop/wall mounting design

HARDWARE FEATURES
Interface • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
• 1× 10/100/1000 Mbps RJ45 Port
• 1× Gigabit SFP/RJ45 Combo Port
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • Desktop

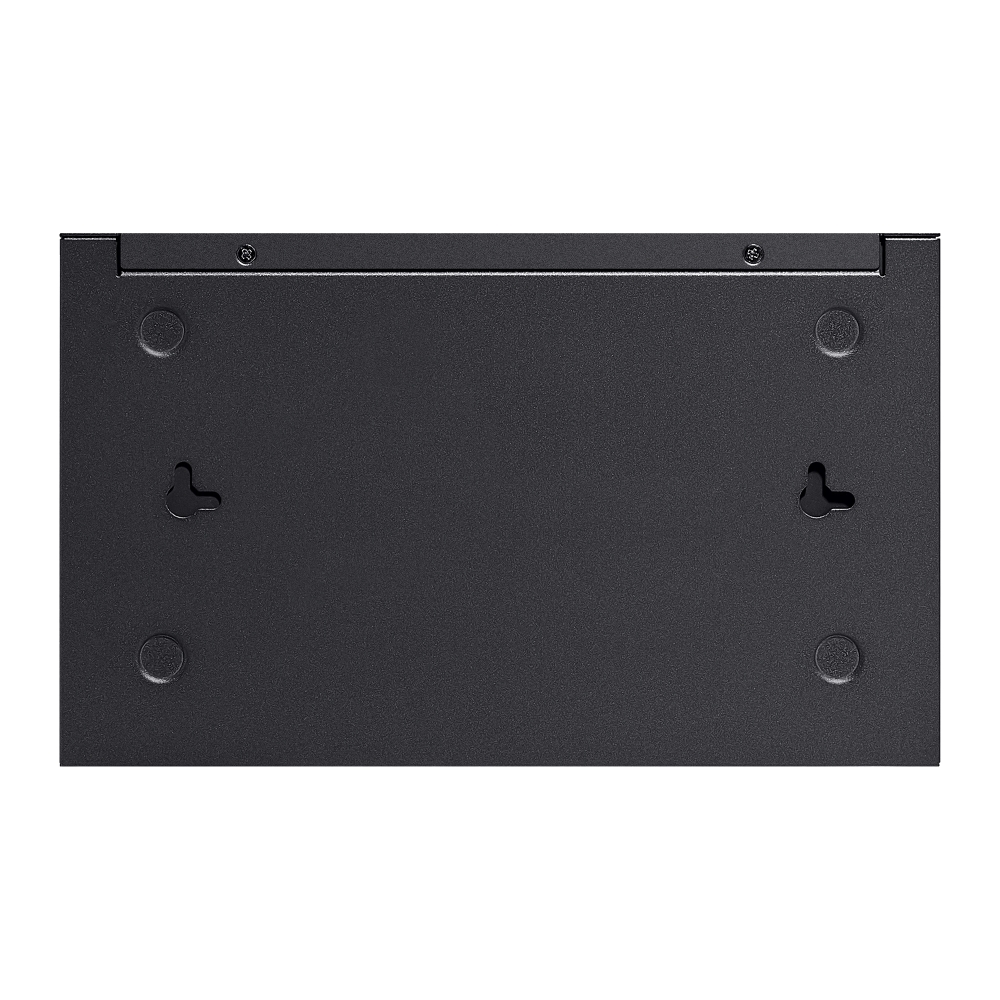

• Wall Mount
Physical Security Lock √
Power Supply DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 8 ports
• PoE Budget: 123W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)
Surge Protection ±6kV

PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB

SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward

Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†

OTHERS
Certification FCC, CE, RoHS
Package Content • ES210GMP
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
