HARDWARE FEATURES

Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity 1 (Intelligent fan speed adjustment)
External Power Supply 100–240 VAC, 50/60 Hz, 0.8A
LED • System Power: 1
• Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Max. Power Consumption 31.2 W

PERFORMANCE

Switching Capacity 160 Gbps
Packet Forwarding Rate 119.0 Mpps
MAC Address Table 32 K
Packet Buffer Memory 2 Mb
Jumbo Frame 10 KB

SOFTWARE FEATURES

Advanced Features • 802.3X Flow Control
• 802.1p/DSCP QoS
Transmission Method Store and Forward

OTHERS

Certification CE, FCC ,RoHS

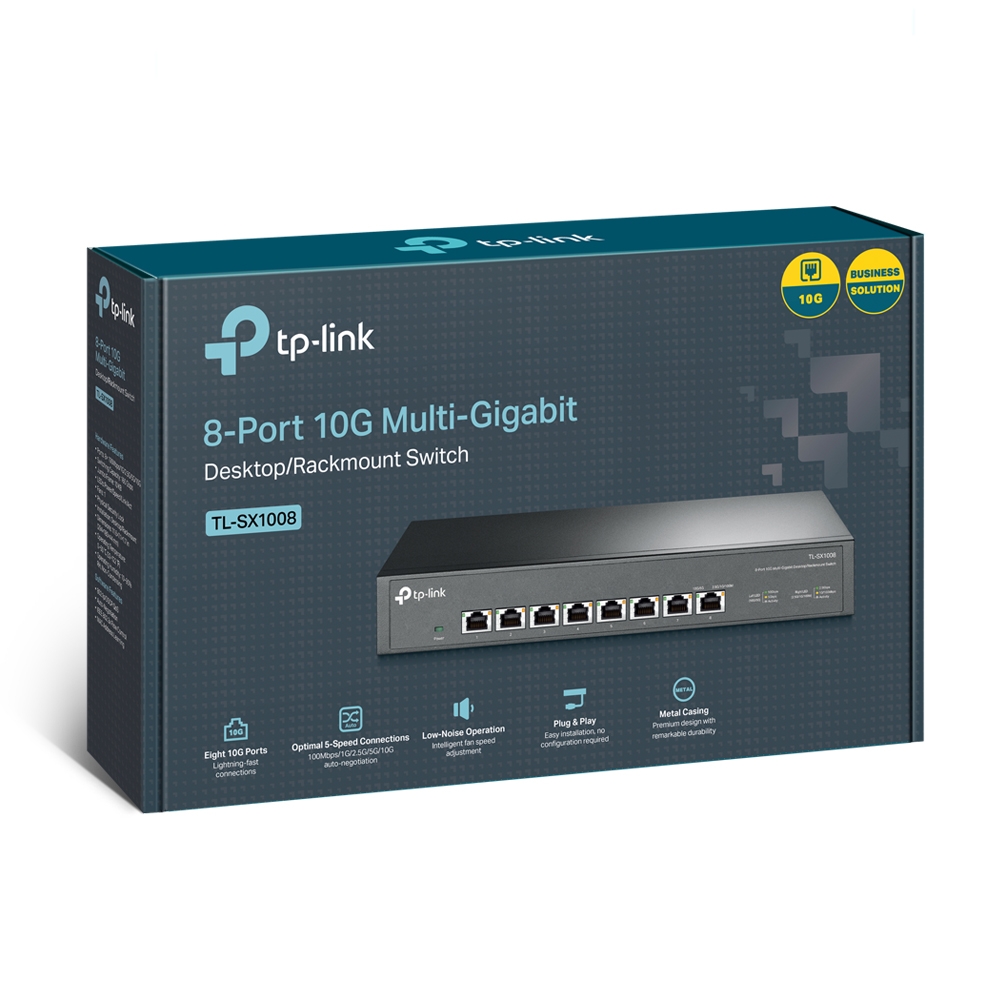

Package Content • 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Environment • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
