SECURITY
Network Security SPI Firewall
Access Control
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal

HARDWARE

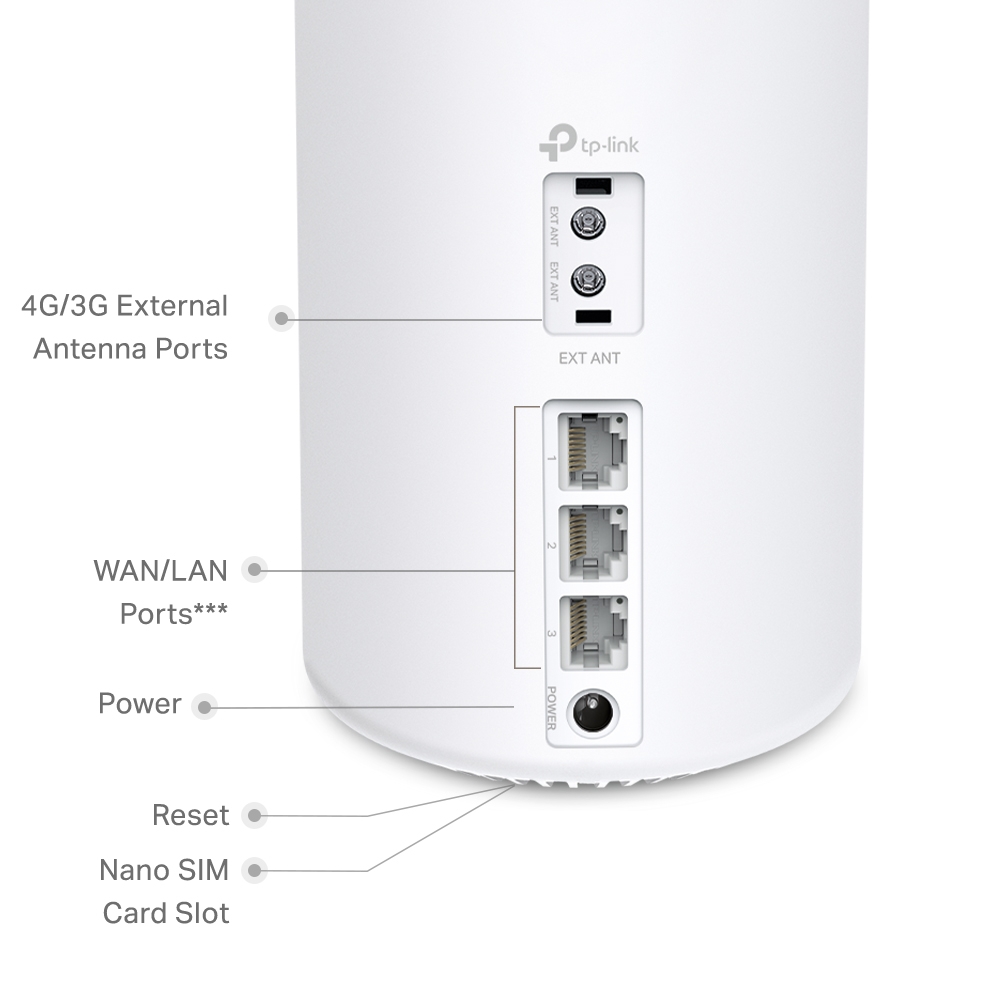

Ethernet Ports 3× Gigabit Ports

Supports WAN/LAN auto-sensing
Buttons RESET Button
Ports and Connections 2× 3G/4G external SMB antenna interface (also provide 2x SMB to SMA-F Adapters)
SIM Card Format: Nano-SIM

Compatibility
4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)

SOFTWARE
Protocols IPv4
IPv6
Service Kit Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
Parental Controls Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Report
WAN Types Dynamic IP
Static IP
PPPoE
L2TP
PPTP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App

TEST DATA
WiFi Transmission Power CE:
≤20 dBm (2.4GHz)
≤23 dBm (5GHz)

PHYSICAL
Dimensions (W×D×H) 4.13 × 4.13 × 6.57 in (105 × 105 × 167 mm)

OTHERS
Certification CE, RoHS
Package Contents 1-pack
1 Deco X10-4G unit
1 RJ45 Ethernet Cable
1 Power Adapter
2 SMB to SMA Adapters
Quick Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90%RH
Storage Humidity: 5%~90%RH

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AX1500
5 GHz: 1201Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11ax)
WiFi Range 1-2 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2 LTE antennas, 2 Wi-Fi antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance

2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

4 Streams
More than enough bandwidth for connected devices
Working Modes 3G/4G, Router, Access Point
