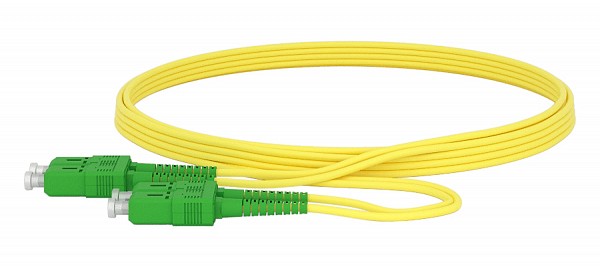

F/O SC/apc-SC/apc 10m LSZH
Κωδικός plus26: 173-455575
Κωδικός Εργοστασίου (MPN): SASA072DT10
LG OPTIC
- Single Mode OS2 G652D or G657A or G657B
- Simplex and Duplex Configuration
- High Precision ceramic ferrule with excellent concentricity
- 100% Inspection for optical properties and fiber end face finish
- LSZH Sheath
- PC or APC Connector
Fiber optic single mode patch cords are suitable for data and telecommunication
applications. Offerings include Simplex and Duplex configurations with variety of different
connectors. Patch cords are 100% factory tested and compatible with industry standards
EIA/TIA, Telcordia, IEC. These patchcords utilize duplex single-mode fiber, characterized by a
core diameter of approximately 9 microns and a cladding diameter of 125 microns. This
configuration is particularly well-suited for long-range communications, making it a popular
choice for many advanced networking environments. Duplex single-mode fiber optic
patchcords are ideal for applications that require high-speed data transmission over long
distances. They can support data rates of 1 Gb/s, 10 Gb/s, 40 Gb/s, and even 100 Gb/s over
distances that can extend up to 10 kilometers or more, depending on the specific
requirements and network equipment used. This high performance makes them suitable for
various high-bandwidth applications such as telecommunications, Ethernet, and fiber
channel, as well as for connections that require bidirectional communication on separate
fibers
APPLICATION
- LAN, WAN and Metro Networks
- FTTH projects & FTTX Deployments
- CATV Systems
- GPON , EPON
- Fiber Optic Test Equipments
- Database Transmit Broadband Net
Cable
Connector SC, LC, FC, MTRJ and ST
Fiber Type SM 9/125 G652D or G657A or G657B
Strength Member Cable Diameter (mm)
Jacket Colour Yellow Blue White
Jacket Thickness (mm) 0.45 +/- 0.05
Cable Diameter (mm) 1.6/1.8/2.0/3.0 mm
Optical Specification
Insertion Loss Typical: <0.2dB, Max. 0.3dB (MTRJ: Max. 0.5dB)
Return Loss UPC>50dB, APC>65dB
Mechanical Specification
Connector Ferrule Ceramic, (MTRJ: PS- Polyphenylene Sulphide)
Apex Offset <50um
Fiber Height ±100nm
End-face Radius of Curvature 7mm < R < 25 mm (Excluding MTRJ)
Repeatability <0.2dB 1,000 times mating cycles
