MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE 802.3aq ，IEEE 802.3cb
Basic Function • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Maximum transmission distance depends on the inserting SFP module
Interface • 1× SFP+ port
• 1× 1G/2.5G/5G/10Gbps RJ45 port
Wave Length Depends on the used SFP/SFP+ module
Network Media 10GBASE-R Multi-mode/Single-mode SFP+ module
Network Media 10GBASE-T •1000BASE-T/2.5GBASE-T/5GBASE-T:
4-pair UTP/STP of Cat. 5e or above (max. 100 m)
•10GBase-T:
4-pair UTP of Cat. 6 (max. 55m), 4-pair UTP of Cat. 6a (max. 100m), or 4-pair STP of Cat.
6 or above (max. 100m)
Dimensions ( W x D x H ) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter: 9V/0.6A
Max. Power Consumption 5.26 W
LED PWR, FX Link/Act, TP Link/Act
Safety & Emission CE, FCC

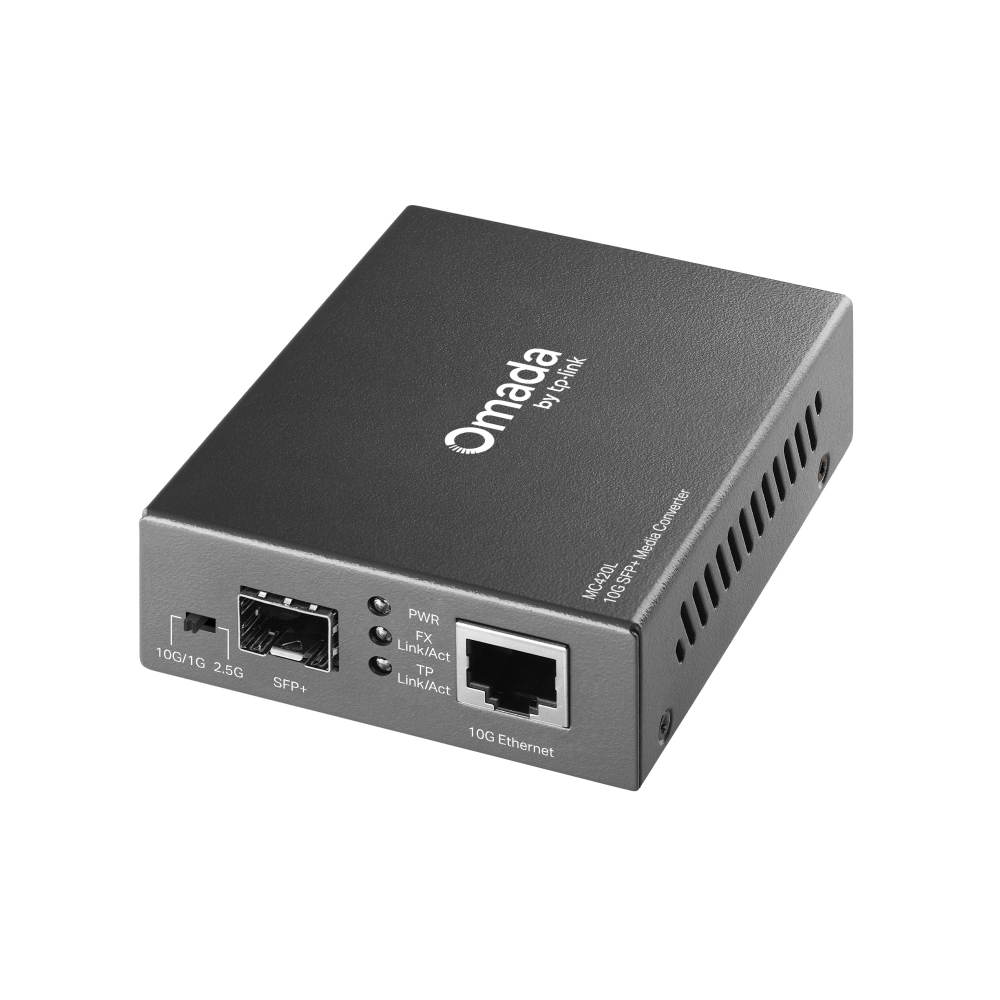

Package Content • MC420L
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%RH~90%RH Non-condensing
• Storage Humidity: 5%RH~90%RH Non-condensing
