CAMERA

Image Sensor 1/27” Progressive Scan CMOS Starlight Sensor
Lens Focal Length: 4 mm ± 5%
Aperture: F1.6 ± 5%
Field of View: 105° (Diagonal), 88°(Horizontal), 45°(Vertical)
Motion Range Pan Mechanical Range: 326° (360° Pan Coverage)
Tilt Mechanical Range: 53° (98° Tilt Coverage)
Night Vision 850 nm IR LED
Starlight Color Night Vision
Lighting 2× Built-in Spotlights
Interface & Button 1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)

VIDEO & AUDIO

Maximum Resolution 4K 8MP (3840 × 2160 px)
Frame Rate 25 fps
Digital Zoom 18x
Video Compression H.264
Live View Yes
Image Enhancement 3DNR
WDR
Audio Input & Output Built-in Microphone and Speaker
Audio Communication Two-Way Audio with Noise Cancellation
Siren Volume 99 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards >
Cloud Storage Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

AI Detection Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Activity Zones Yes
Output Notification System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity Connect via Wi-Fi or Ethernet
Wireless Connectivity IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz /5 GHz
Ethernet Port Yes
RTSP Yes
ONVIF Yes

SECURITY

Security SSL/TLS,AES

POWER

Power Source 12V DC Power Adapter
Input Voltage 100-240 V, 50/60 Hz
Output Voltage 12 V, 1 A (DC Power)

GENERAL

Smart Integration Google Assistant, Amazon Alexa
Weather Resistance IP66
System Requirements Tapo App: iOS 12.0+ and Android 5.0+ operating systems.
Mounting Options Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature -30℃~60℃ (-22°F~140°F)
Storage Temperature -40℃~60℃ (-40°F~140°F)
Operating Humidity 10%~90% RH, Non-condensing
Storage Humidity 0~90% RH, Non-condensing
Dimensions ( W x D x H ) 147.4 × 74.7 × 165.4mm（Mounting Bracket Included）
147.4 × 74.7 × 157.4mm（Mounting Bracket Excluded)

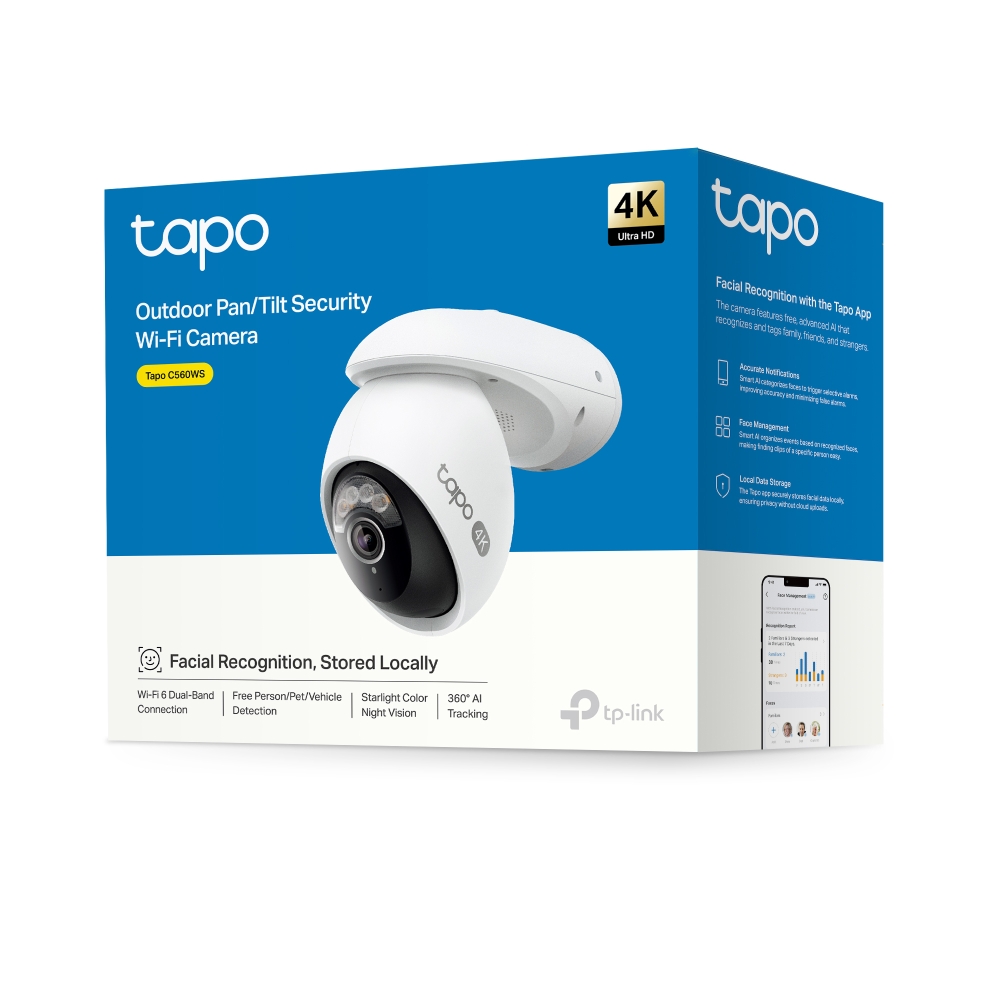

Package Content Tapo C560WS Camera×1
DC Power Adapter×1
Mounting Template Sticker×1
Mounting Bracket×1
Mounting Anchors and Screws
Bracket Screws×2
Waterproof Seal×1
Waterproof Cable Attachments×1
Quick Start Guide
Certifications FCC, RoHS, RCM
