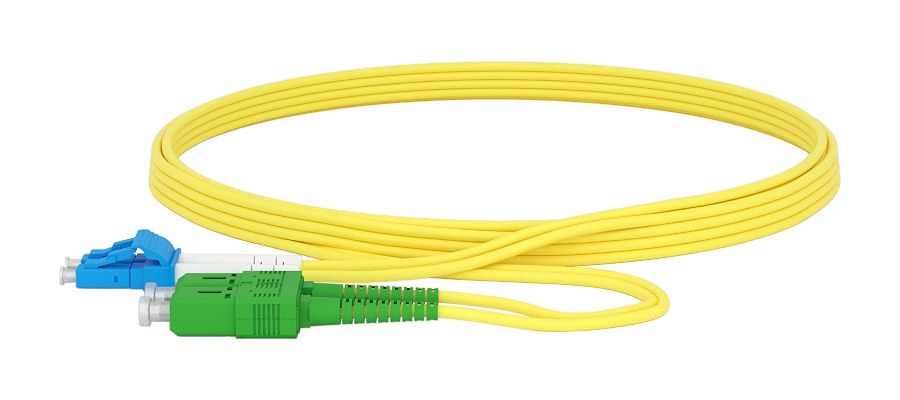

F/O LC-SC/apc 10m G657A1 LSZH
Κωδικός plus26: 173-437487
Κωδικός Εργοστασίου (MPN): LCSA072DT10
LG OPTIC
- Single Mode OS2 G652D or G657A or G657B
- Simplex and Duplex Configuration
- High Precision ceramic ferrule with excellent concentricity
- 100% Inspection for optical properties and fiber end face finish
- LSZH Sheath
- PC or APC Connector
APPLICATION
- LAN, WAN and Metro Networks
- FTTH projects & FTTX Deployments
- CATV Systems
- GPON , EPON
- Fiber Optic Test Equipments
- Database Transmit Broadband Net
Fiber optic single mode patch cords are suitable for data and telecommunication
applications. Offerings include Simplex and Duplex configurations with variety of different
connectors. Patch cords are 100% factory tested and compatible with industry standards
EIA/TIA, Telcordia, IEC. These patchcords utilize duplex single-mode fiber, characterized by a
core diameter of approximately 9 microns and a cladding diameter of 125 microns. This
configuration is particularly well-suited for long-range communications, making it a popular
choice for many advanced networking environments. Duplex single-mode fiber optic
patchcords are ideal for applications that require high-speed data transmission over long
distances. They can support data rates of 1 Gb/s, 10 Gb/s, 40 Gb/s, and even 100 Gb/s over
distances that can extend up to 10 kilometers or more, depending on the specific
requirements and network equipment used. This high performance makes them suitable for
various high-bandwidth applications such as telecommunications, Ethernet, and fiber
channel, as well as for connections that require bidirectional communication on separate
fibers
Cable
Connector SC, LC, FC, MTRJ and ST
Fiber Type SM 9/125 G652D or G657A or G657B
Strength Member Cable Diameter (mm)
Jacket Colour Yellow Blue White
Jacket Thickness (mm) 0.45 +/- 0.05
Cable Diameter (mm) 1.6/1.8/2.0/3.0 mm
Optical Specification
Insertion Loss Typical: <0.2dB, Max. 0.3dB (MTRJ: Max. 0.5dB)
Return Loss UPC>50dB, APC>65dB
Mechanical Specification
Connector Ferrule Ceramic, (MTRJ: PS- Polyphenylene Sulphide)
Apex Offset <50um
Fiber Height ±100nm
End-face Radius of Curvature 7mm < R < 25 mm (Excluding MTRJ)
Repeatability <0.2dB 1,000 times mating cycles
REV.1-2024
ITALY OFFICE
LG OPTIC SRL
Piazza Solferino 20, 10121
Torino (TO) - Italy LGOPTIC.COM | INFO@LGOPTIC.COM
