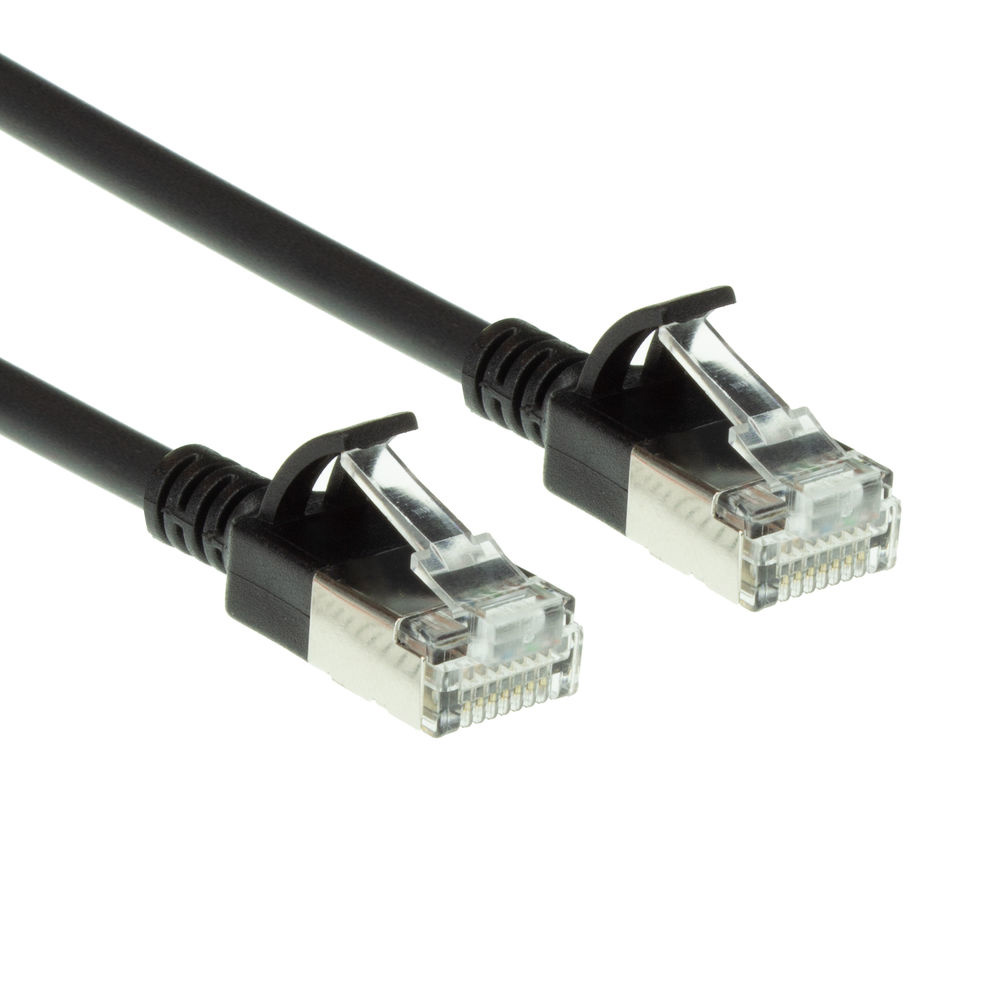

ACT U/FTP 0.25m Cat6a Μαυρο Slim LSZH

Κωδικός plus26: 173-435660

Κωδικός Εργοστασίου (MPN): DC7952

Εγγραφείτε για τιμή

Cable length: 0.25 m

Full copper 32AWG wires, 50µ gold RJ-45 contacts

Outer diameter jacket of only 3.8mm to improve air flow in cabinet

Snagless boots

For connecting two active devices e.g. a switch and a nas

Specifications comply to international standards

Cables are 100% tested

5 Year warranty

CAT6A U/FTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6A patch cords. The bending radius is lower in comparison with regular patch cords. This results in a better airflow in the server rack/network cabinet.

Although, ISO/IEC and TIA standards describe the use of patch cords between 22 and 28 AWG, it is possible to use 32 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.

Product category
Cables / Twisted pair patch / CAT6A U/FTP
Cable length
0.25 m
Connector type
RJ45
Connector A
RJ45 male (x1)
Connector B
RJ45 male (x1)
Contact plating
Gold plated
Connector contact plating
Gold plated
Mating cycles
750
Shielding type
U/FTP
Category
CAT6A
Conductor material
Copper
Wire gauge
32 AWG
Outer jacket
LSZH
Impedance
100 ?
Bandwidth
500 MHz
Cable colour
Black
Colour number
RAL 9011
Min. working temperature
-20 °C
Max.working temperature
75 °C
Warranty (years)
5
EAN code
8716065442458
