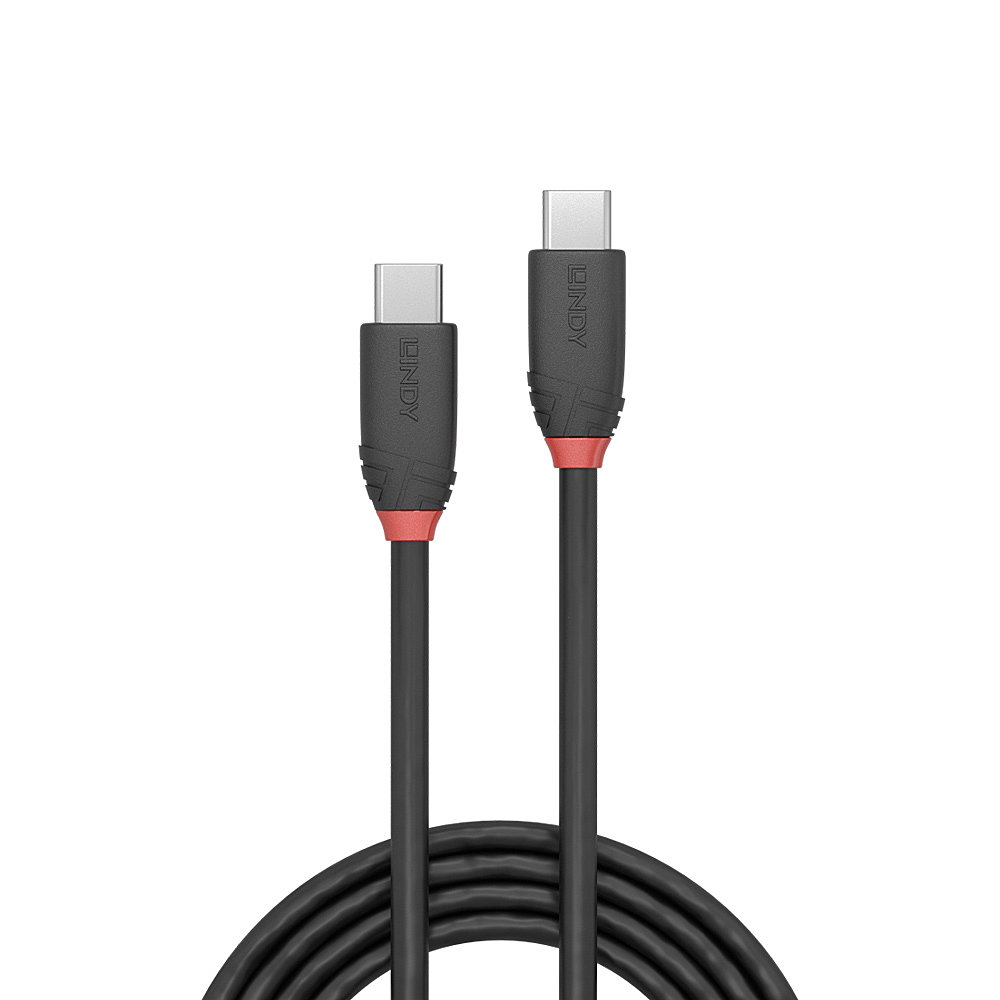

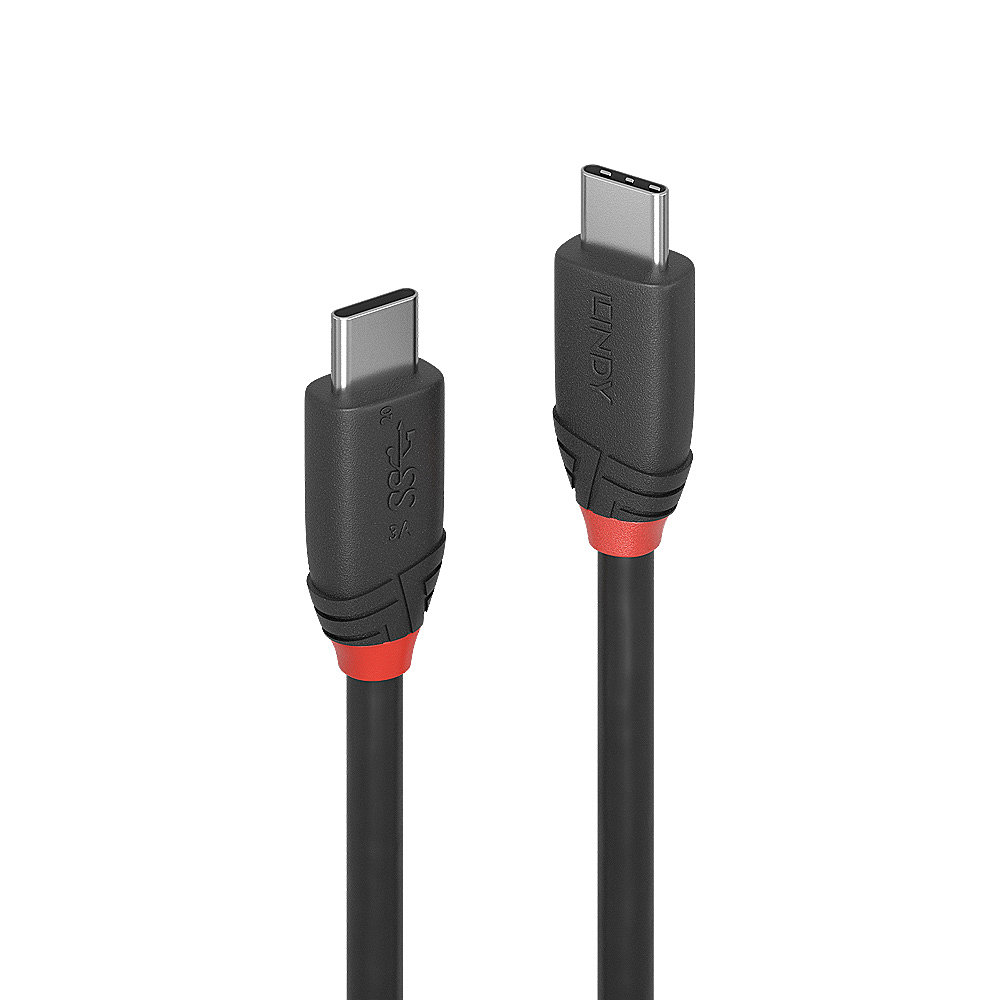

Lindy 1.5m USB 3.2 Type C to C Cable, 20Gbps, 3A, Black Line

Κωδικός plus26: 173-434891

Κωδικός Εργοστασίου (MPN): 36907

Εγγραφείτε για τιμή

Entry level USB 3.2 Gen 2x2 Type C to C, 3A (60W), cable for home and small office applications

SuperSpeed USB 20Gbps - supports data transfer speeds up to 20Gbps and DisplayPort Alternate Mode

Robust PVC housing, nickel plated connectors, gold plated contacts

Triple shielded cable, corrosion resistant tinned copper conductors

10 year warranty

The Black Line USB 3.2 Type C to C cables from Lindy's Cable Lines concept are entry level connection solutions, perfect for home and small office use.

Black Line USB 3.2 Type C to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel plated connectors and gold plated contacts maintain signal integrity and reliability.

USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. It supports DisplayPort Alternate Mode at max. 4K 60Hz.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Black Line USB 3.2 Type C to C cables are available in the following lengths: 0.5m, 1m and 1.5m.

We have adapted the naming of our USB 3 cables to follow the updated USB specification.

USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps

USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps

USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Connectors

Connector A: USB 3.2 Type C Male
Connector B: USB 3.2 Type C Male
Housing Material: PVC
Shielding in head shell: Copper foil
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

Cable Construction

Length: 1.5m (4.92ft)
Standard: USB 3.2 Gen 2x2
Power Delivery: PD 2.0
Max. Power: 60W (20V 3A, Standard Power Range (SPR))
Colour: Black
Type: Round
Jacket Diameter: 4.5mm (0.18in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge Power: 24AWG
Conductor Gauge Data: 32AWG
Shielding: Tinned Copper Braid 86%

Specifications

Supported Bandwidth: 20Gbps
Maximum Resolution: 4K 4096x2160@60Hz
Nominal Attenuation: 0.5Mhz _ 15Ghz < 40dB
Minimum Bend Radius: 45mm (1.77in)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS, REACH, California Proposition 65 & UL
