HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface 8× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 12 VDC / 1.5 A)
LED Indicator • System Power: 1
• Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H ) 8.9×5.2×1.4 in (226×131×35 mm)
Max Power Consumption 15.65 W
Max Heat Dissipation 53.40 BTU/h

PERFORMANCE
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.8 Mpps
MAC Address Table 16 K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 10 KB

SOFTWARE FEATURES
Advanced Features • 802.3X Flow Control
• 802.1p/DSCP QoS
Transfer Method Store and Forward

OTHERS
Certification CE, FCC ,RoHS

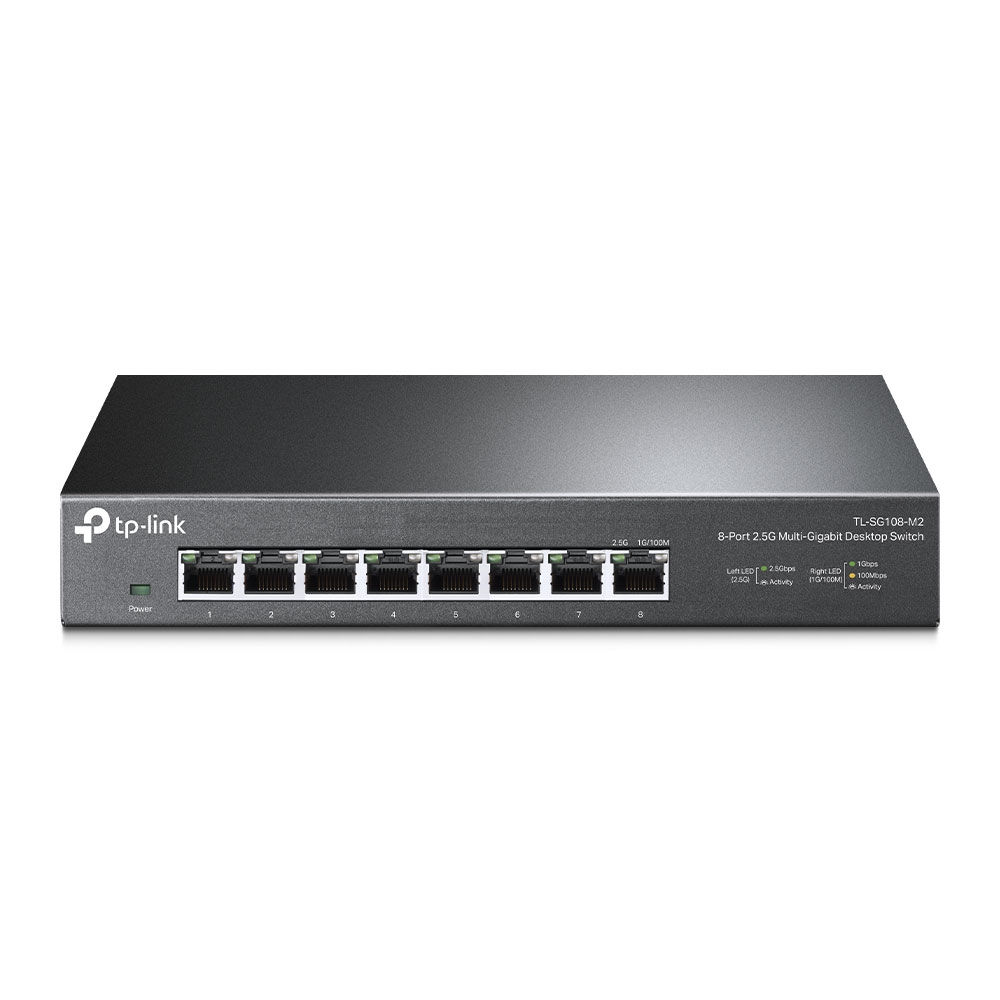

Package Contents • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
