SECURITY
Network Security • SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network • 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server • OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server
VPN Client • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client
WiFi Encryption • WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

HARDWARE

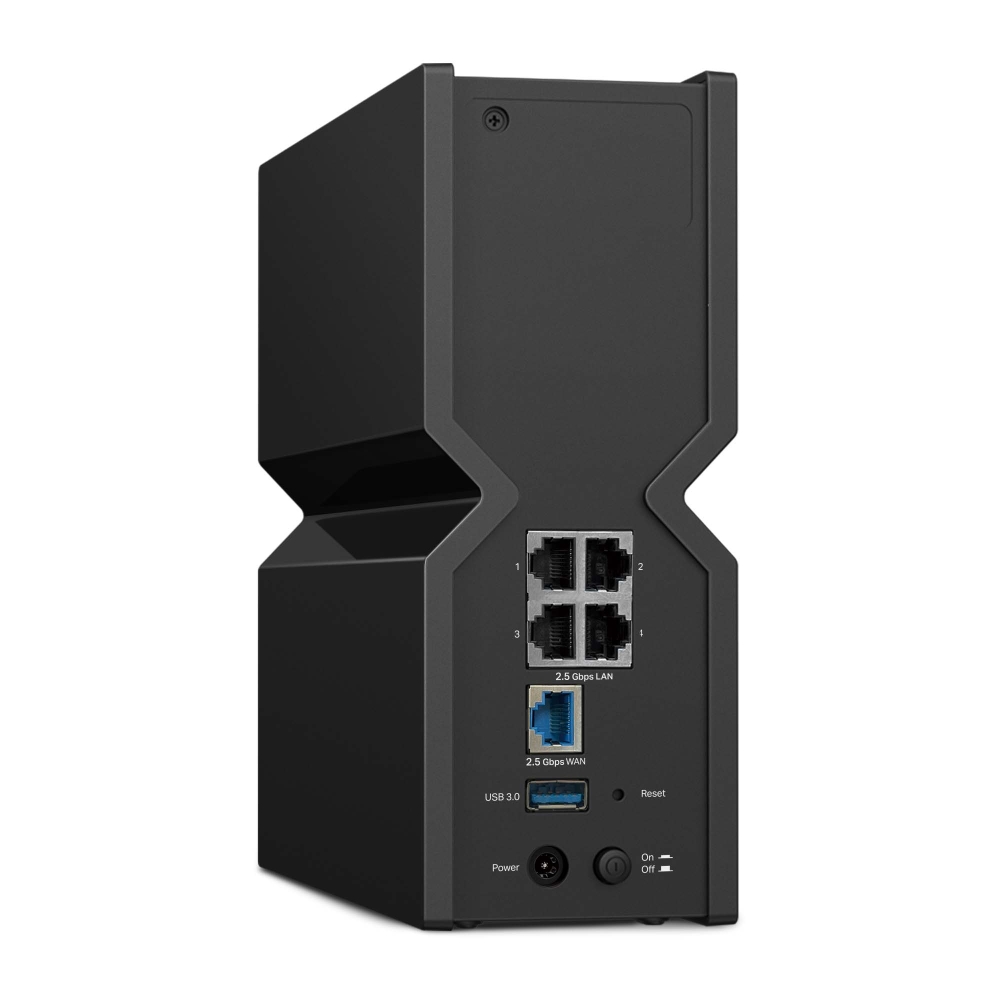

Ethernet Ports • 1× 2.5 Gbps WAN
• 4× 2.5 Gbps LAN
USB Support 1× USB 3.0

• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

• Supported Functions:
FTP Server
Media Server
Samba Server
Buttons • Power On/Off Button
• Wi-Fi On/Off Button
• LED Button
• WPS Button
• Reset Button
Power 12 V ⎓ 3.3 A

SOFTWARE
Protocols • IPv4
• IPv6
Service Kit HomeShield
Learn More>
EasyMesh Compatible with EasyMesh
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Type • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service QoS by Device
Cloud Service • Auto Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding • Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV • IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP • Address Reservation
• DHCP Client List
• Server
DDNS • TP-Link
• NO-IP
• DynDNS
Management • Tether App
• Webpage

OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications CE, FCC, RoHS
Environment • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing

PHYSICAL
Dimensions (W×D×H) 3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm)
Package Contents • Wi-Fi 7 Router Archer BE550
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

WIRELESS
WiFi Speeds BE9300
• 6 GHz: 5760 Mbps (802.11be)
• 5 GHz: 2880 Mbps (802.11be)
• 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
6× Optimally Positioned Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity High
Tri-Band
Allocate devices to different bands for optimal performance

2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth
Working Modes • Router Mode
• Access Point Mode
Advanced Functions • Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network
