WIRELESS FEATURES
Concurrent Clients 250+*
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: 2402 Mbps†
• 2.4 GHz: 574 Mbps
Wireless Functions • 2×2 (2.4G & 5G) MU-MIMO‡
• HE160 (160 MHz Bandwidth)‡
• OFDMA‡
• Omada Mesh
• Seamless Roaming §
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• Guest Network
• Automatic Channel Assignment
• Beamforming
• Rate Limit (Based on SSID/Client)
• Band Steering
• Load Balance
• Airtime Fairness
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule and Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<29 dBm(5 GHz, band3, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<27 dBm (5 GHz)

MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog System Log
SSH Yes
Web-based Management Yes
Zero-Touch Provisioning Yes.Reauire the use of Omada Cloud-Based controller

OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP650-Desktop
• Desktop/Wall Mounting Kit
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

HARDWARE FEATURES
Interface 4× 1Gbps Ethernet Ports + 1× FXS Port
(One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
Button • Reset
• LED
Power Supply 802.3 af/at/bt PoE or 12V/1.5A DC
*PoE Out requires 802.3at/bt PoE power supply
Power Consumption 17.3W (PoE Out Off)
Weight 452g (excluding mounting base)
Dimensions ( W x D x H ) 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 5 dBi
• 5 GHz: 3× 4.7 dBi
Range 140㎡(1500 ft²)*

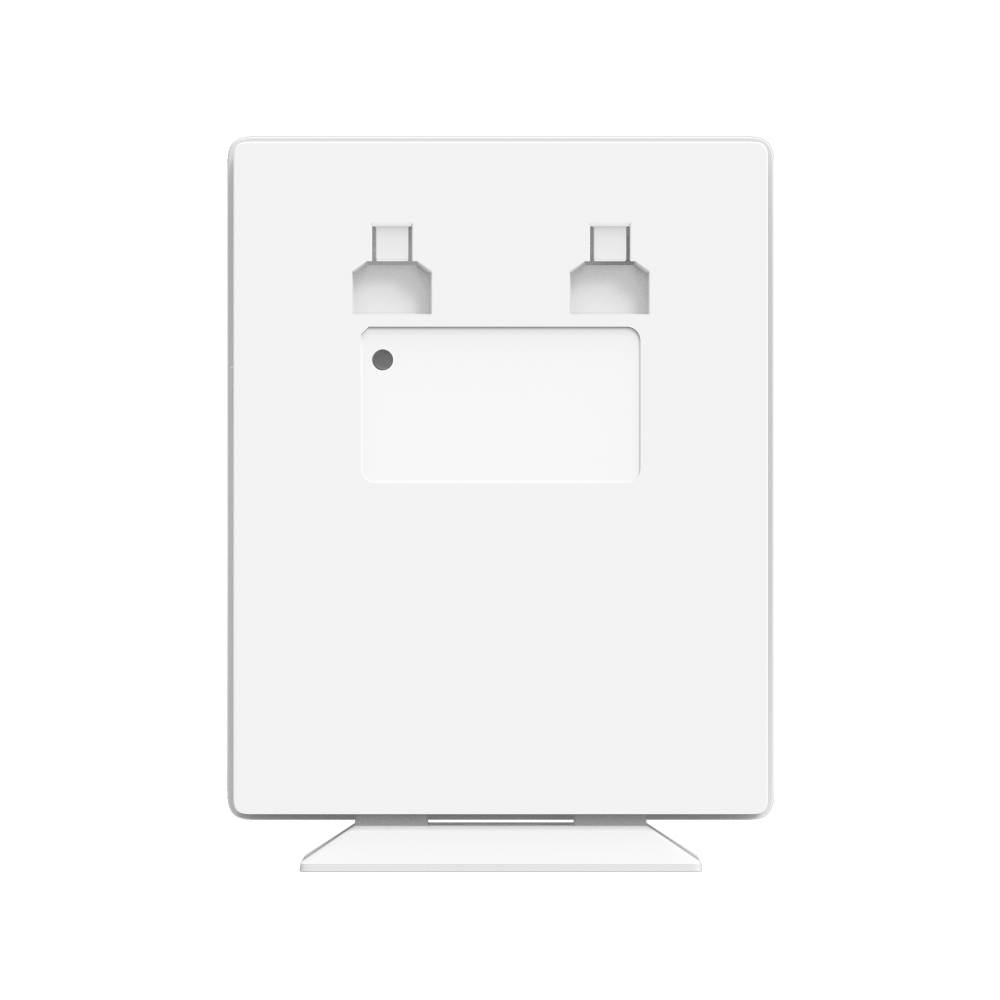

Mounting Desktop / Wall mouting (Kits included)
