The DIGITUS® USB Type C <=> DisplayPort bidirectional adapter cable supports the transfer from a USB Type C source to a DisplayPort interface. Likewise, it supports the transfer from a DisplayPort source to a USB Type-C interface. For example, you can connect your laptop (USB Type-C equipped) to your monitor, TV or projector (DisplayPort interface) or you can connect your PC (DisplayPort output) to a monitor (USB Type-C interface). Power is supplied via the USB port, so no external power source is necessary.

Technical details

• Supports: Resolutions of up to 8K (7680x4320) with a display refresh rate of up to 30Hz.
• Supports: Resolutions up to 4K at 144Hz
• Supports: Resolutions up to 2K at 165Hz
• Data transmission speed: 25.92 Gbit/s
• Supports the transfer of audio and video signals
• Aluminum housing
• Ferrite filter: none
• USB-C products: yes
• Strands made of copper, foil and mesh shielding for robustness and a reliable connection
• DisplayPort standard: DP 1.4
• Supports: Multi-Stream Transport (MST)
• Manufacturer’s notice:
• If you connect a USB-C monitor/TV/projector to a PC equipped with DP, make sure that your USB-C display supports DisplayPort signal output.
• The video output capabilities depend on your notebook’s graphic card and the connected monitor. Some screens also limit the available resolution.
• AOC - Active Optic Cable: no
• AWG: 34
• Color cable: black
• Connector 1: USB C, plug
• Connector 2: DP, plug
• Ferrite filter: none
• USB compliance: USB Type-C™
• Length: 1 m
• Shielding: triple shielding

Package content

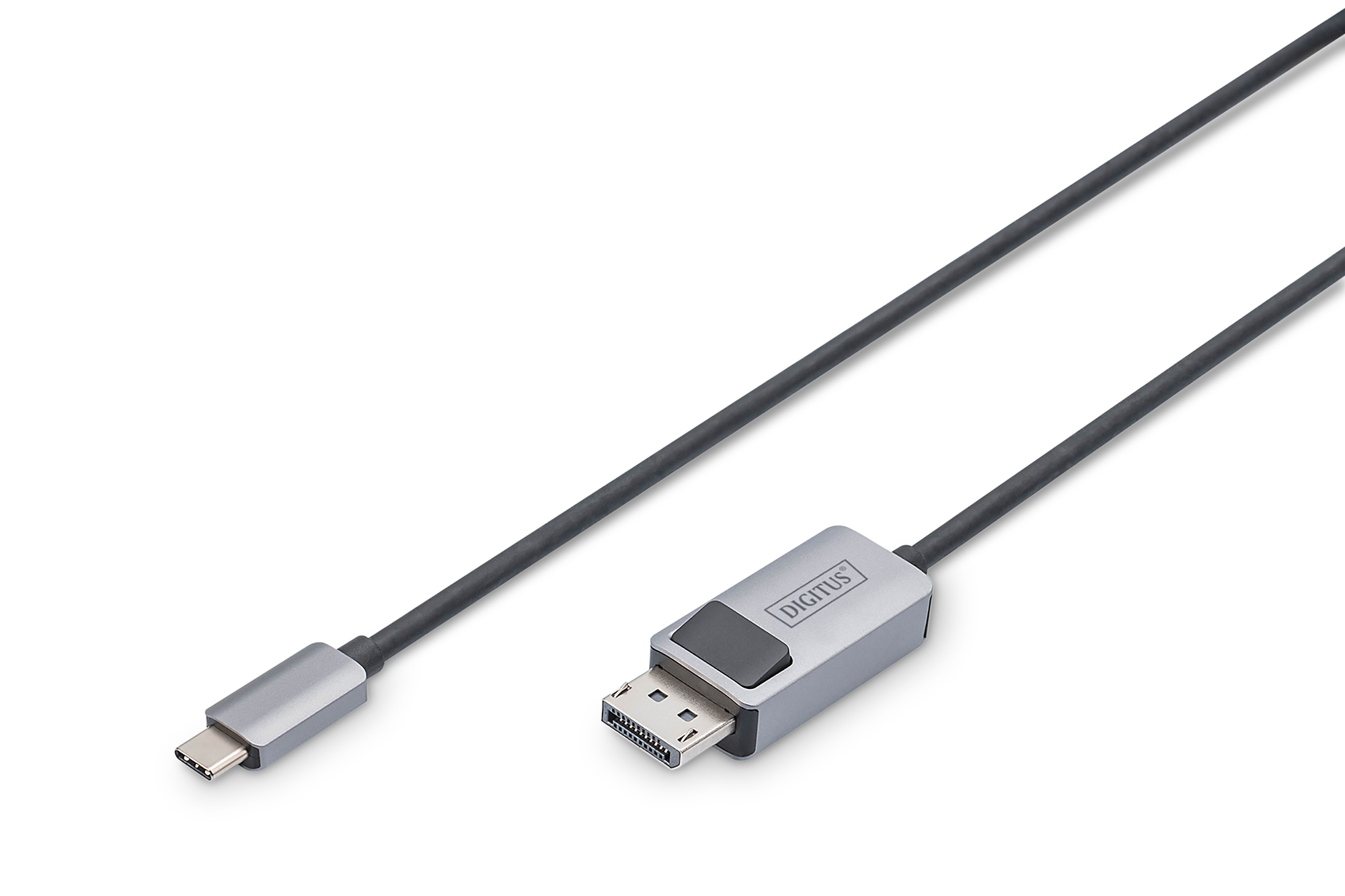

1x USB Type-C Adapter Cable, USB Type-C to DP, 1 m
