Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4 - 2.5GHz
WiFi Speeds

11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)
Reception Sensitivity

270M: -70dBm@10% PER

130M: -72dBm@10% PER

54M: -74dBm@10% PER

11M: -87dBm@10% PER

6M: -92dBm@10% PER

1M: -94dBm@10% PER
Transmission Power
<20dBm
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge

Wireless

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access control

Local management

Remote management
DHCP

Server, DHCP Client List

Port Forwarding
Virtual server, UPnP, DMZ
Dynamic DNS
Oray
Firewall Security
IP and MAC address binding
Protocols
IPv4
Guest Network
2.4GHz guest network

Software

Dimensions
167 x 118 x 33 mm

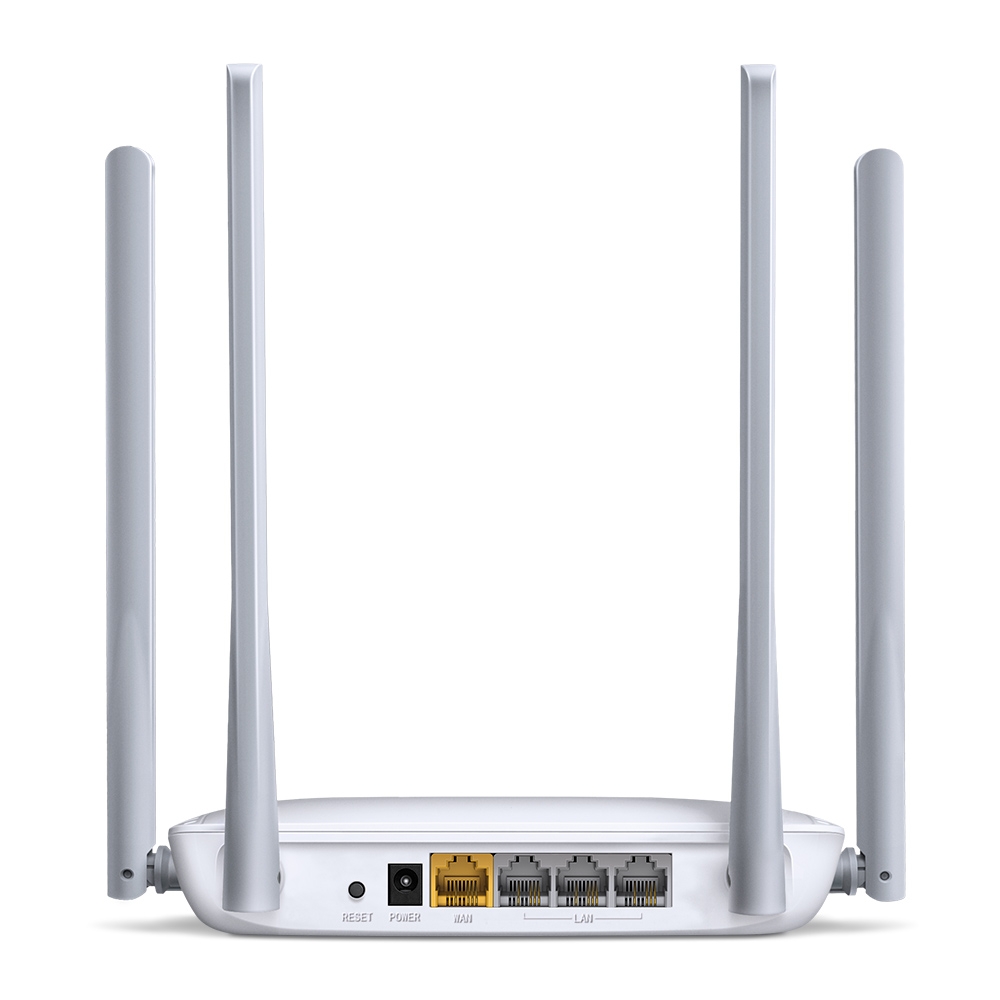

Interfaces

3 10/100Mbps LAN ports

1 10/100Mbps WAN port
Button
Reset button
External Power Supply
5VDC/0.6A
Antenna Type
4 x 5dBi fixed omni directional antennas

Hardware

Certifications
CE, ROHS
Package Contents

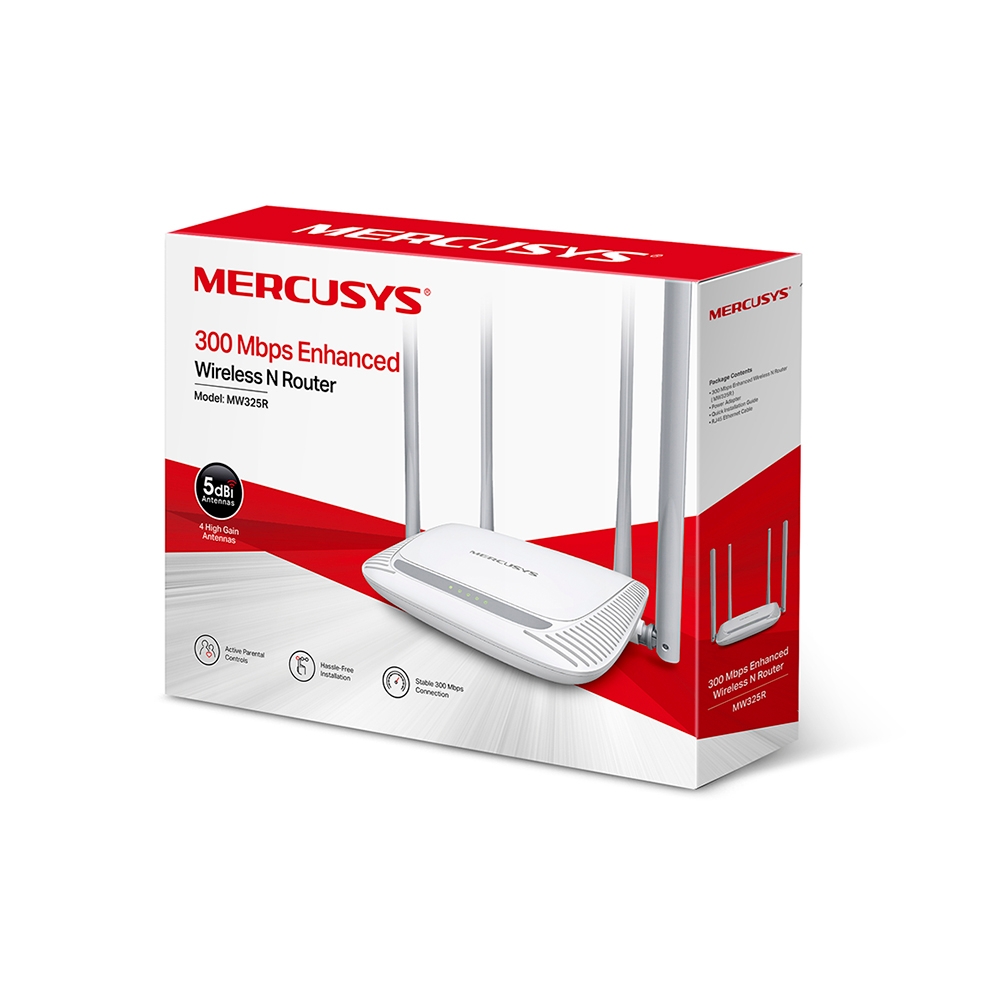

300Mbps Enhanced Wireless N Router

MW325R

Power adapter

Quick installation guide

RJ45 Ethernet cable

Environment

Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)

Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)

Operating humidity: 10% ~ 90%, non-condensing

Storage humidity: 5% ~ 90%, non-condensing

Others
