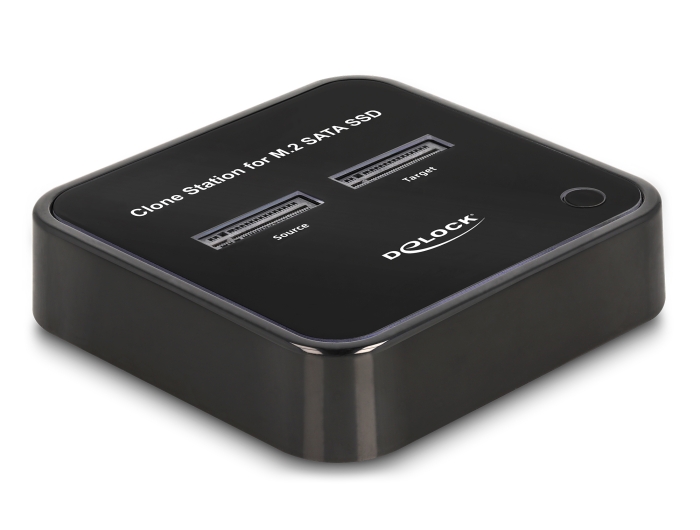

Delock Docking Station for 2 x M.2 SATA SSD with Clone function 64178
Κωδικός plus26: 173-422503
Κωδικός Εργοστασίου (MPN): 64178
This M.2 docking station by Delock enables the installation of two M.2 SATA SSDs and it can be connected via USB to the PC or laptop. The included USB cable allows the connection to a free USB-C™ port.
M.2 SATA SSD clone function
The clone function enables to copy the content of one SSD to another without using a PC.
Ideal test equipment
The memory is simply plugged into the robust housing and can be used immediately. No screws, tools or accessories are required, which means that the SSD can be changed quickly.
Note
There is no support for PCIe NVMe M.2 SSD.
Technical details
Connectors:
1 x USB 10 Gbps USB Type-C™ female
2 x M.2 key M slot
1 x USB Type-C™ female (power supply)
Chipset: Asmedia ASM1352R, VIA VL160
Supports M.2 modules with key B+M based on SATA
Data transfer rate up to 6 Gbps
Supports UASP
LED indicator for power, access and copy status
Function key:
1 x Clone button
1 x On / Off switch
Bootable
Dimensions (LxWxH): ca. 72 x 79 x 18 mm
Hot Plug, Plug & Play
Power supply specification
Wall power supply
Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
Output: 5.0 V / 3.0 A
System requirements
Android 10.0 or above
Chrome OS 83.0 or above
iPad Pro (2018)
Linux Kernel 5.4 or above
Mac OS 10.15.6 or above
Windows 8.1/8.1-64/10/10-64/11
Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Package content
M.2 docking station
Cable USB-C™ male to USB-C™ male, length ca. 45 cm
Cable USB-C™ male to USB Type-A male, length ca. 80 cm (power supply)
External power supply
User manual
Package
Retail Box
General
Function
• Clone Function
Supported operating system
• Chrome OS 83.0 or above
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Windows 10 32-Bit
• Windows 10 64-Bit
• Windows 8.1 32-Bit
• Windows 8.1 64-Bit
• iPad Pro (2018)
• Android 10.0 or above
• Windows 11
Slot
• SATA
Maximum height of the components on the module
• 1.5 mm application of double-sided assembled modules supported
Interface
Connector 1
• 1 x USB 10 Gbps USB Type-C™ female
Connector 2
• 2 x 67 pin M.2 key M slot
connector 3
• 1 x USB Type-C™ female (power supply)
Technical characteristics
Data transfer rate
• 10 Gbps
Physical characteristics
Length
• 79 mm
Width
• 72 mm
Height
• 18 mm
Colour
• black
