WIRELESS FEATURES
Coverage 185㎡(2000ft²)***
Concurrent Clients 510+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 1148 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO (4*4 MU-MIMO DL&UL)
• MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO]
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming(802.11k/v/r) §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE: <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)

• FCC: <26 dBm (2.4 GHz)
<26 dBm (5 GHz)

MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.

OTHERS
Certification CE,FCC,RoHS
Package Contents • EAP683 UR
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

HARDWARE FEATURES

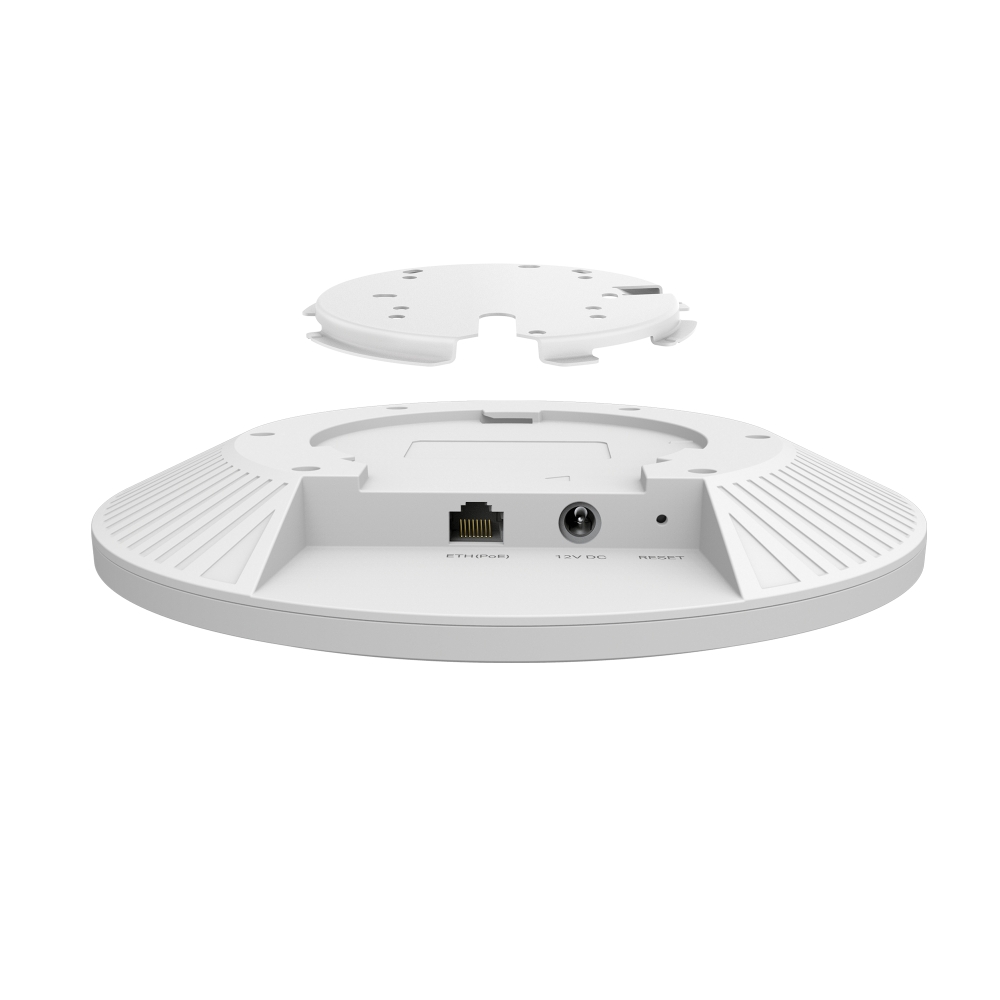

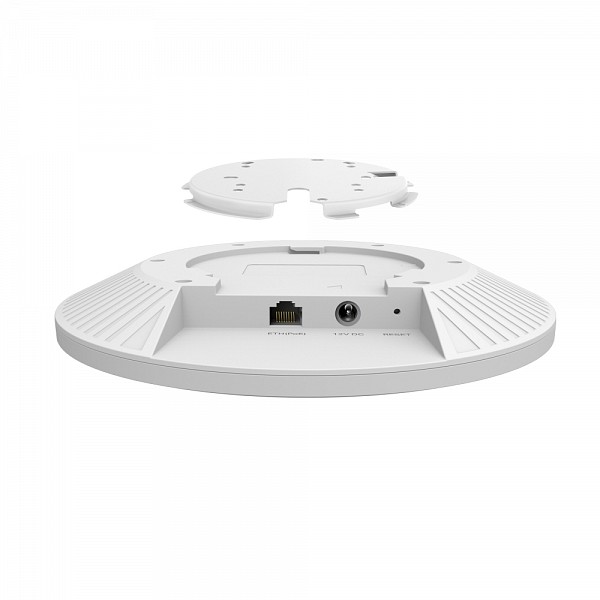

Interface 1× 2.5 Gigabit PoE+ Port
Button Reset
Power Supply • 802.3at PoE
• 12 V / 2 A DC

Note：Power adapter is not included.
Power Consumption • EU: 20.43W
• US: 23.69W
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Bluetooth V5.2

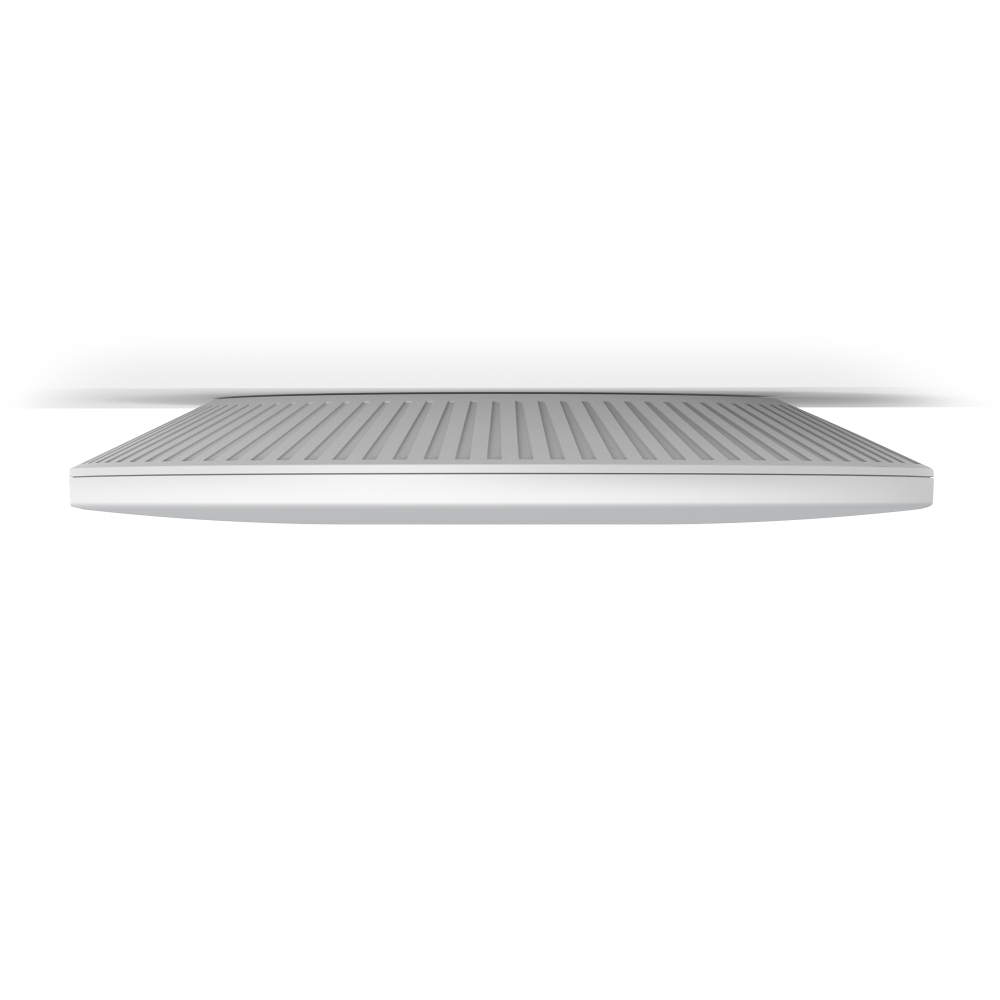

Mounting Ceiling /Wall Mounting (Kits included)
