Desktop HDMI KVM Switch

Operate 2 PCs with dual display using a USB keyboard and mouse combination – switch between two computers by pressing a button

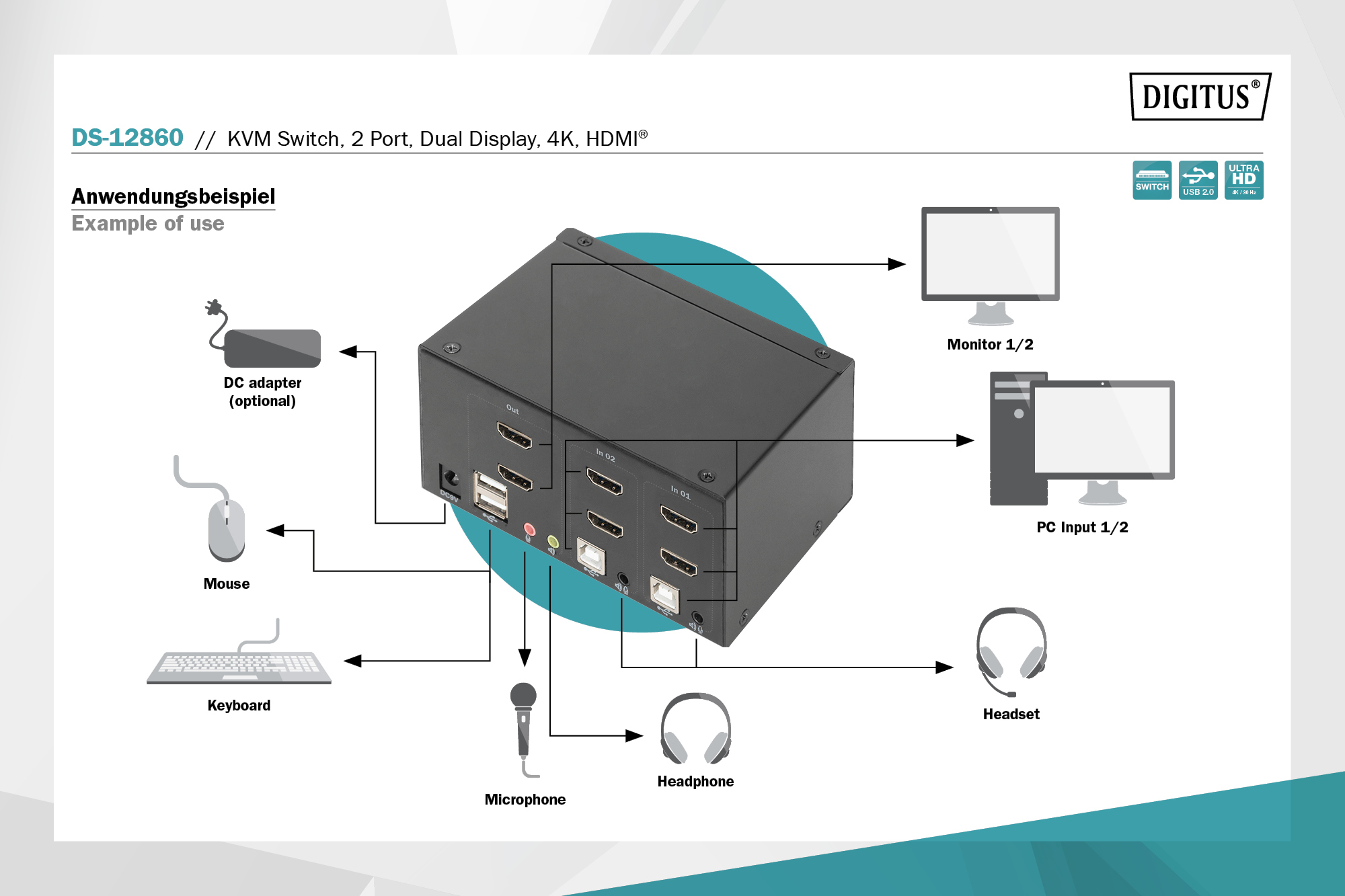

• Use two monitors, a mouse / keyboard to operate two computers with dual display
• Supports a maximum UHD resolution of 4K / 30 Hz + FreeSync
• USB ports for mouse and keyboard
• Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
• Integrated USB hub with USB A port for additional peripheral equipment
• Switching between the PCs via switch on the KVM switch or hot key on the keyboard
• LED status and functional displays on the front side + OSD display
• Laborious replugging of connection cables no longer necessary
• Real Plug and Play - no software or driver installation required (BIOS hardware connection)
• Sturdy metal housing
• UHD resolution: 4K / 30 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4
• Inputs: 4 x HDMI® inputs (2x2), 2 x USB B, 2 x audio combo socket 3.5 mm jack (microphone, speaker)
• Outputs (console): 2 x HDMI®, 2 x USB A (mouse, keyboard), 2 x Stereo Audio 3.5 m jack (microphone, speaker)
• Additional connection on the front side: 1 x USB A for additional peripheral equipment such as printers or USB sticks
• HDMI® version: 1.4b
• USB specifications: USB 2.0 compliant (full speed)
• Supports audio formats: Dolby True HD, DTS HD Master Audio
• Switching between the PCs: Switch on the front side or hot keys
• Status LED on front side shows current configuration
• The device is platform-independent, suitable for all operating systems
• Operating temperature: 0 °C ~ 80 °C
• Storage temperature: -20 °C to +60 °C
• Operating humidity: 0% - 80% RH (non-condensing)
• Case material: Metal
• Power supply device: USB power supply or optional 9 V DC power adapter
• Dimensions: 13.2 x 9.2 x 6.6 cm (WxDxH)
• Weight: 575 g
