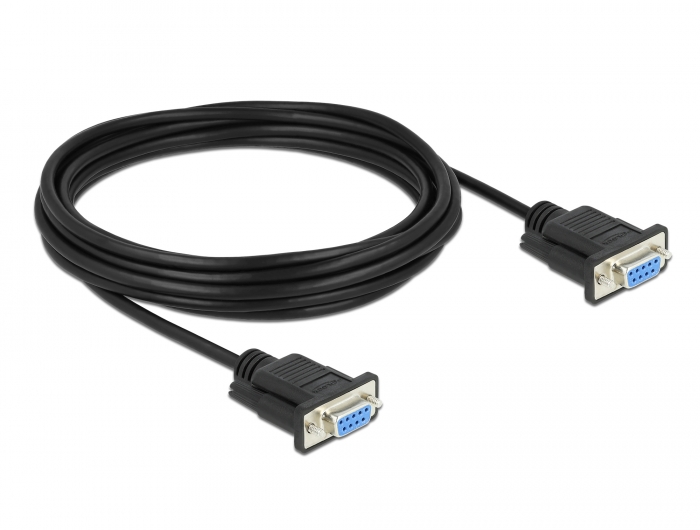

Delock Serial Cable RS-232 D-Sub9 female to female null modem with narrow plug housing 5 m 86607

Κωδικός plus26: 173-416661

Κωδικός Εργοστασίου (MPN): 86607

Εγγραφείτε για τιμή

This serial cable by Delock is a full handshaking null modem cable for printers, measuring instruments, converters, RS-232 hubs, patch panels etc. With this cable, two serial RS-232 devices can be connected to each other for data exchange.

Description

This serial cable by Delock is a full handshaking null modem cable for printers, measuring instruments, converters, RS-232 hubs, patch panels etc. With this cable, two serial RS-232 devices can be connected to each other for data exchange.

Mini D-Sub9 connector

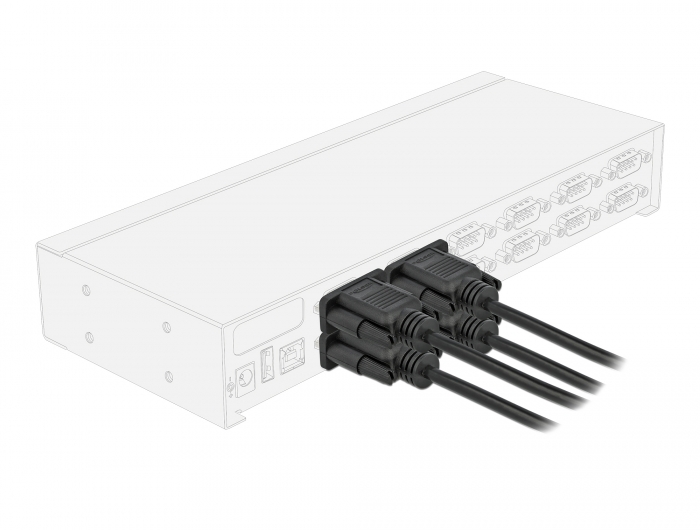

These cables fit on any RS-232 port, as the mini D-Sub9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used directly adjacent to each other.

Specification

Connectors:
1 x serial D-Sub9 female with screws >
1 x serial D-Sub9 female with screws
Cable gauge: 28 AWG
Full handshaking cable

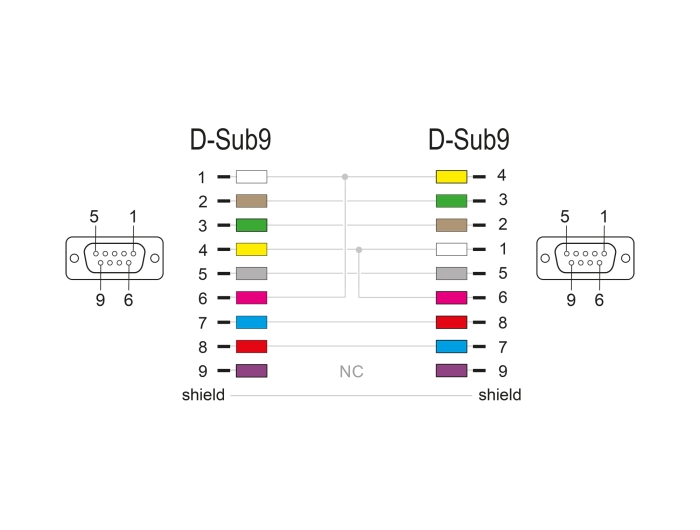

Pin assignment: 1+6 – 4, 2 – 3, 3 – 2, 4 – 1+6, 5 – 5, 7 – 8, 8 – 7, shielded
Colour: black
Insulator: PVC
Screw type: #4-40 UNC
Cable diameter: ca. 5 mm

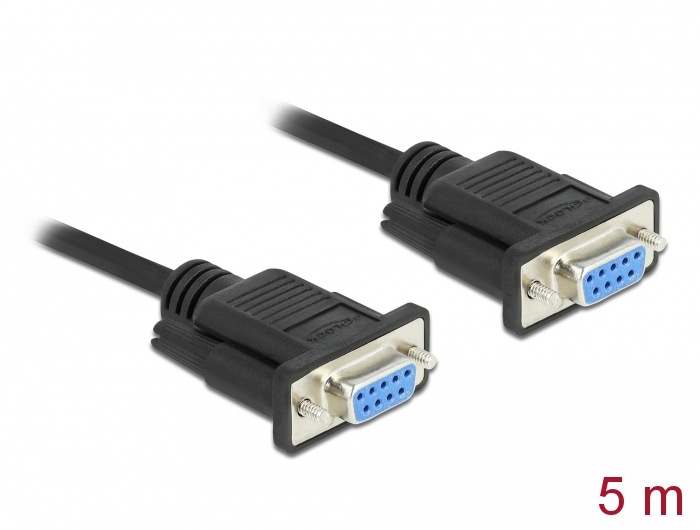

Cable length incl. connectors: ca. 5 m

System requirements

A free D-Sub9 male port

Package content

Cable

Package

Zip poly bag

Here you can find information about Null modem cables for RS-232 connections

Here you can find information about PCIe cards with serial RS-232 interfaces inclusive power supply

Here you can find information about RS-232

Here you can find information about RS-422 / RS-485

General
Specification
• RS-232 (EIA / TIA)
Style
• Null Modem
• Mini Sub-D9
Interface
Connector 1
• 1 x serial D-Sub 9 female with screws
Connector 2
• 1 x serial Sub-D 9 female with screws
Technical characteristics
Data transfer rate
• up to 921.6 Kbps
Signal transmission
• TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Physical characteristics
Cable type
• AWM Style 2464 28 AWG 80 °C 300 V VW-1
Cable length incl. connector
• 5 m
Pin finishing
• gold-plated
Conductor material
• Copper tinned
Conductor gauge
• 28 AWG
Screw type
• #4-40 UNC
Shielding
• Aluminum foil
Colour
• black
Cable jacket material
• PVC
Safety of Flammability
• VW-1
