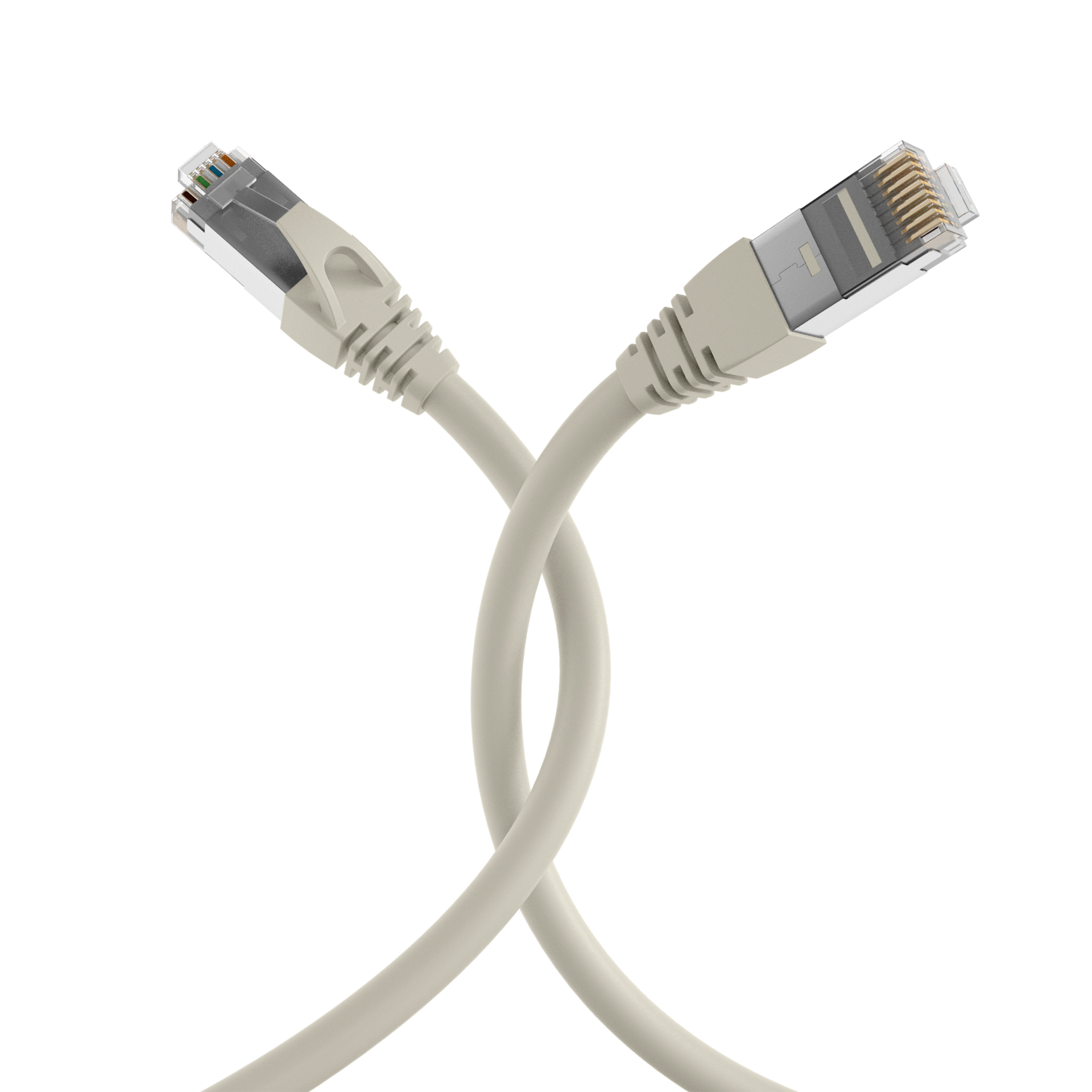

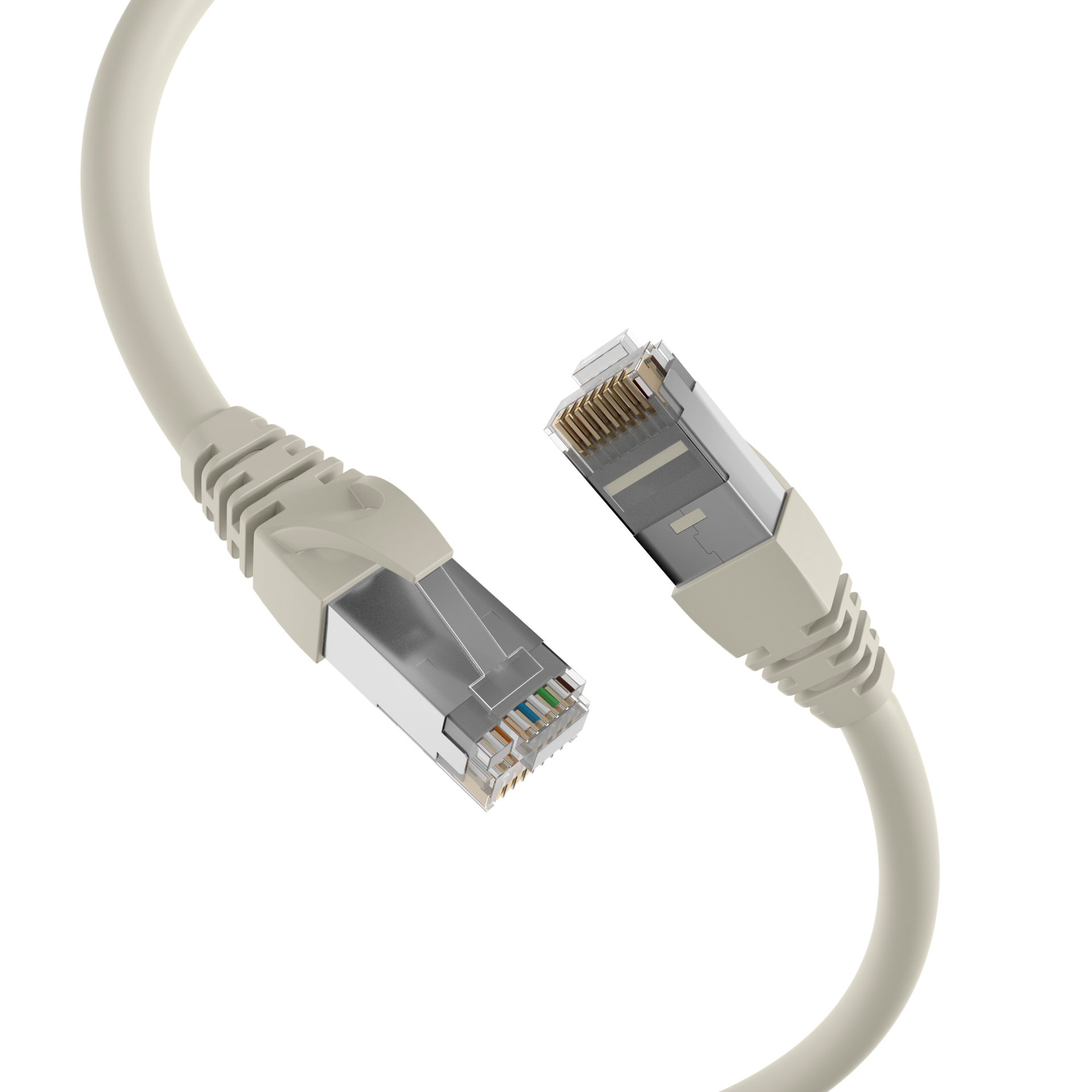

EFB SFTP 60m Cat6a LSZH Long Link PVC UL Grey

The Cat.6A (TIA) patch cable enables 10Gbit Ethernet as a transmission standard and has gold-plated contacts.

AWG-size: 24/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet
Structured cabling
Bandwidth: 500MHz
Bending radius: 34 mm
Cable construction: 4x2
Cable type: S/FTP
Cabling standard: ANSI/TIA-568-C.2
EN50173
ISO/IEC 11801
Category: 6A (TIA)
Colour anti-kink sleeve: grey
Colour outer sheath: grey
Conductive shield: 360° shield contact
Conductor Material: Copper
Connector: IEC 60603-7-51
Connector type: RJ45 Standard
Contact Resistance: < 20 mΩ
Contacts: 50 µ" gold plated
Current Rating: max. 1 A
Fire retardant version: True
Halogen free: False
Impedance: 100 ±15 Ω
Insulation Resistance: 500 MΩ
Jacket Material: Polyvinylchlorid (PVC)
Length imprint: False
Locking lever: True
Mating cycles: 2000
Model: Shielded
NVP value: - %
Oil resistant: no
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.8 mm
Ozone resistance: No
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at
PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: E132276-C(UL) CM 75°C 4PR AWG24/7 CSA LL64151-C CMG 75°C FT4 Cat.6(A) S/FTP PATCH CORD
Resistant to chemicals: False
Suitable for degree of protection (IP): IP20
Temperature range: -10 – 75 °C
Test voltage: 1000 V DC, 1min
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: True
UV resistance: No
