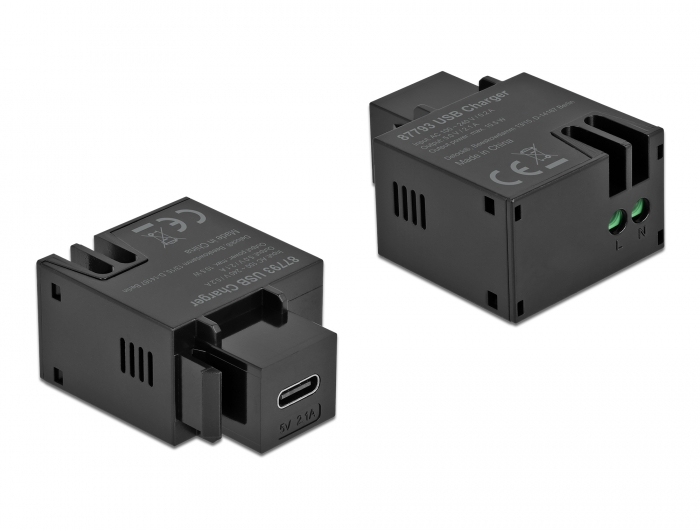

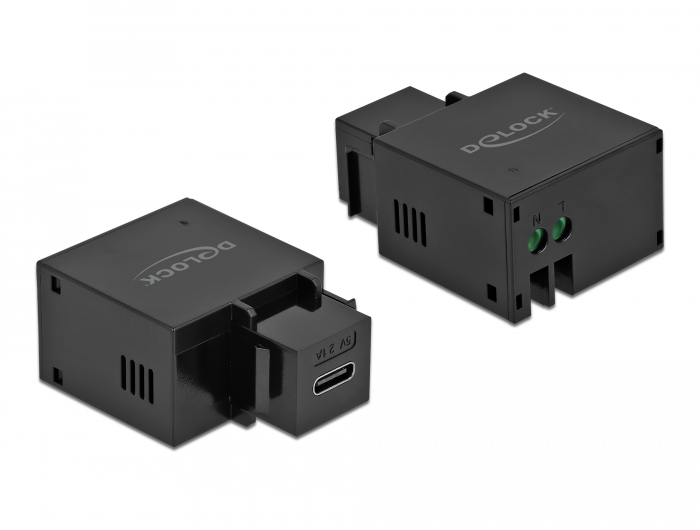

This module by Delock provides a USB Type-C™ charging port. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

Specification

Connectors:
1 x USB Type-C™ female
1 x 2 pin terminal block
Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
Output: 5 V / 2.1 A
Output power: max. 10.5 W total
Average active efficiency 81.22 %
No-load power consumption 0.06 W
Short circuit protection
For Keystone ports with 19.2 x 14.9 mm
Dimensions (LxWxH): ca. 44.8 x 20.7 x 32.5 mm

Package content

Keystone module

Package

Retail Box
