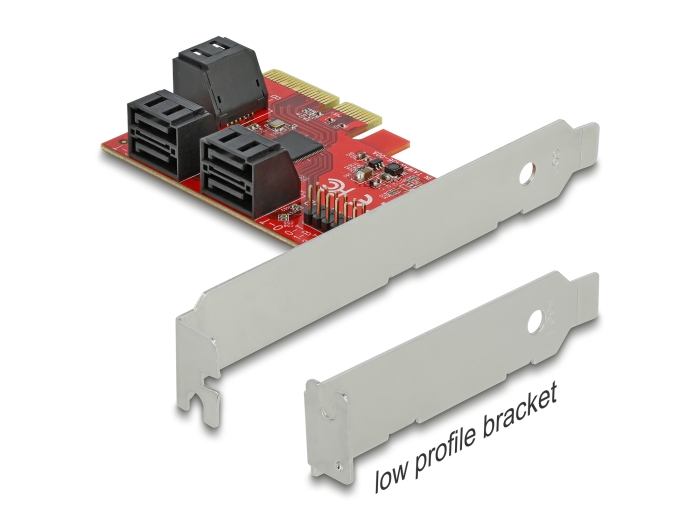

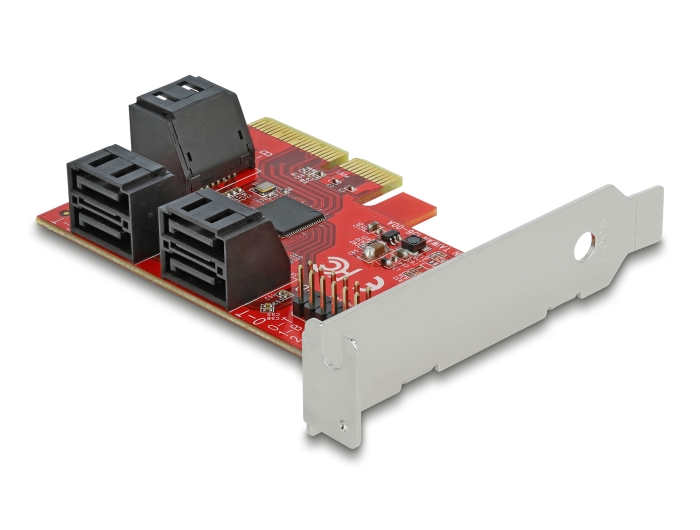

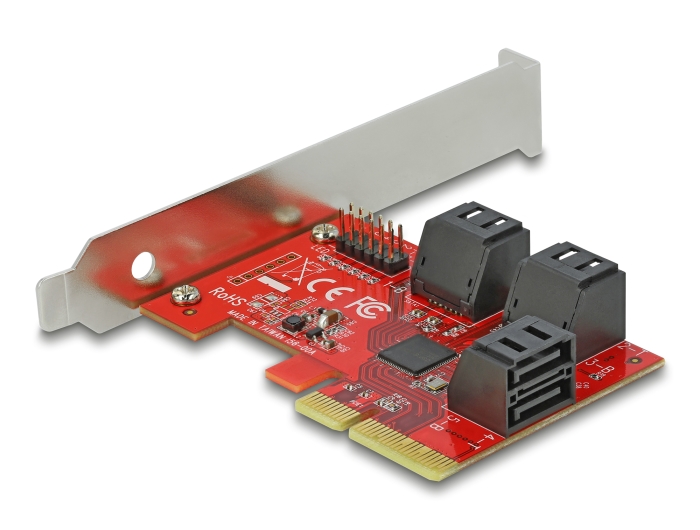

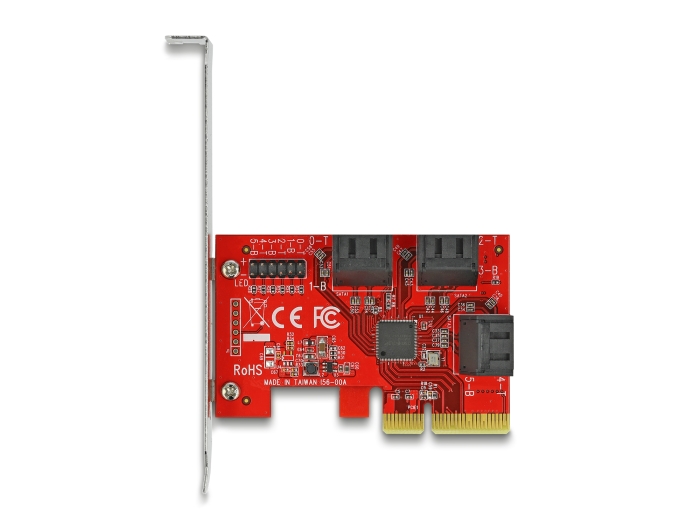

The PCI Express card by Delock expands a PC by six internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.

Specification

Connectors:
internal:
6 x SATA 6 Gb/s 7 pin plug
1 x PCI Express x4 (2-Lane), V3.0
6 x 2 pin pin header for LED
Chipset: Asmedia ASM1166
Supports Native Command Queuing (NCQ)
Supports S.M.A.R.T.
Supports TRIM
Supports DevSleep
Supports SATA Port Multiplier
Hot Plug
Bootable

System requirements

Linux Kernel 4.6.4 or above
Windows 8.1/8.1-64/10/10-64
PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content

PCI Express card
Low profile bracket
User manual

Package

Retail Box
