This adapter by Delock is suitable for the connection of a HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. The adapter supports a resolution up to 4K Ultra HD at 60 Hz and is backward compatible to Full-HD 1080p.

Active adapter
The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.

Specification

Connectors:
1 x USB Type-C™ male >
1 x HDMI-A female
Chipset: Parade PS186, Fresco Logic FL7102
DisplayPort 1.4 and High Speed HDMI specification
Active converter, for graphics cards with DP and DP++ output
Signal direction: USB Type-C™ input > HDMI output
Cable gauge:
32 AWG data line
24 AWG power line
Cable diameter: ca. 5 mm
Connectors: gold-plated
Transmission of audio and video signals
Data transfer rate up to 18 Gbps
Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
Supports HDR
Supports HDCP 1.4 and 2.3
1 x ferrite core
Cable length without connectors: ca. 20 cm
Colour: black

System requirements

Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
Thunderbolt™ 3 port

Package content

USB-C™ to HDMI adapter

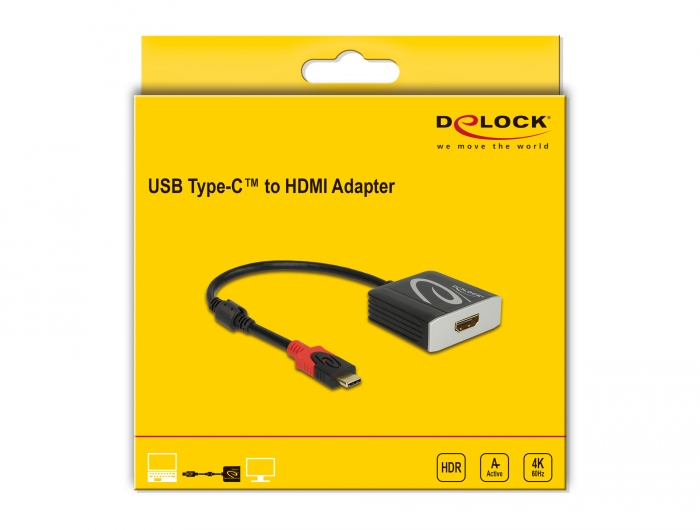

Package

Retail Box
