Description

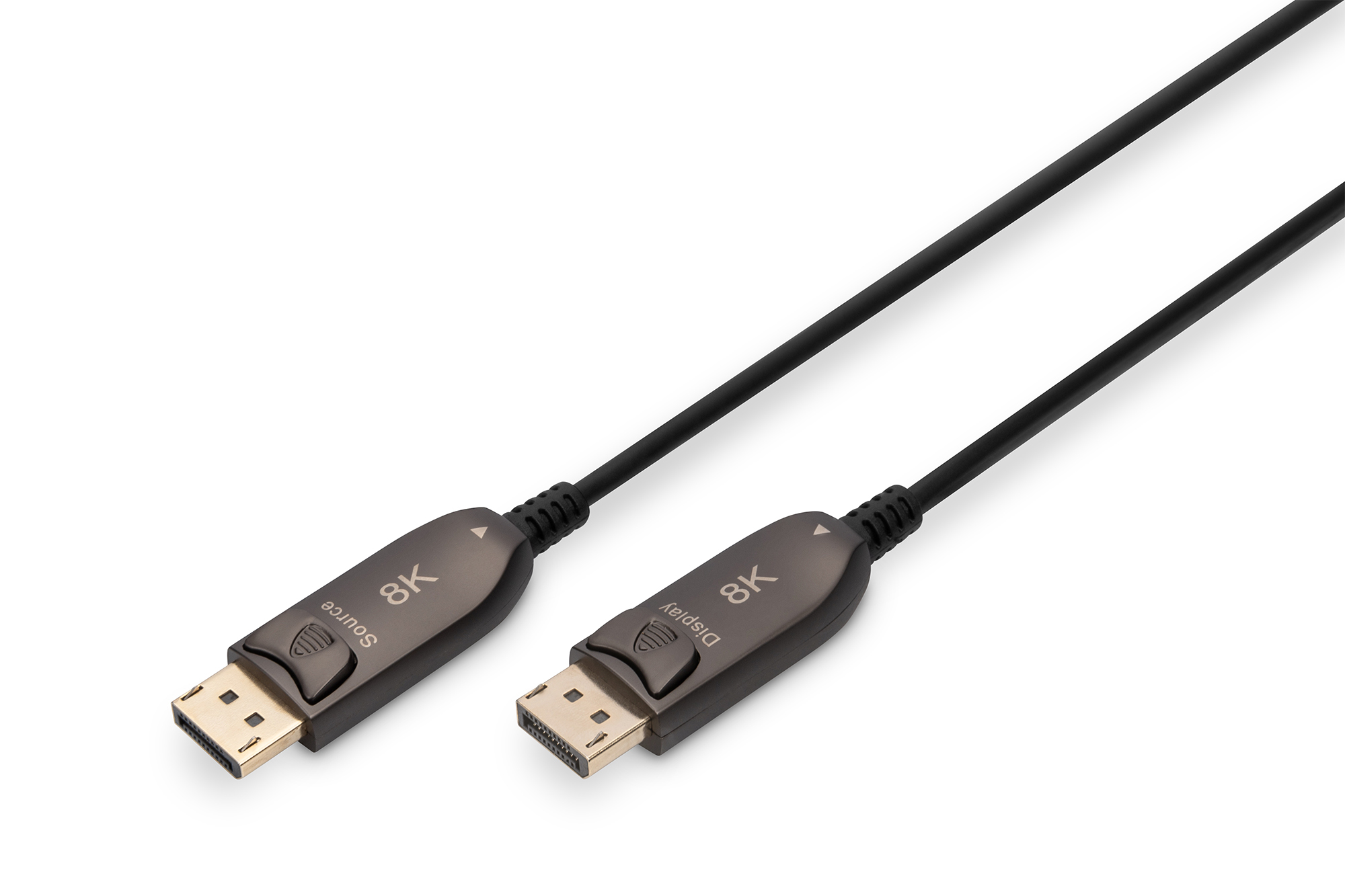

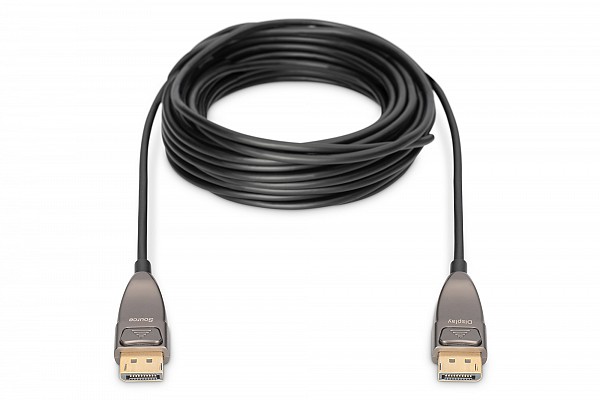

This active DisplayPort AOC Hybrid Fiber Optic Cable is ideally suited for transferring uncompressed video and audio data with high bandwidth over longer distances. The hybrid construction, which uses copper and fiber optic cable, prevents electromagnetic interference. This ensures a loss-free transfer along the entire length of the cable with UHD resolution of up to 8K/60Hz and bandwidths of up to 32.4 Gbps. The use of fiber optic cable keeps the diameter of this active cable very low and gives it a very tight bending radius and low weight. It is ideal for use in homes, meeting rooms, and conference rooms as well as within buildings — and these are just a few of the possible uses. The simple Plug and Play installation is user-friendly; just plug it in and immediately enjoy optimal image quality. It supports numerous standards such as DisplayPort 1.4, HDCP 2.2 and HDR. Some of the many audio features supported are DTS-HD Master Audio and Dolby TrueHD. Cutting edge chip technology makes it possible to transfer the full DisplayPort signal spectrum while also supporting uncompressed CED and EDID with very low latency.

Technical details

Resolution: 7680 x 4320p / 60 Hz (UHD-2)
Supports 8K 3D
Data transfer rate of up to 32.4 Gbps (max. bandwidth)
Supports up to 120Hz at 4K & Full HD (1080p)
Subsampling: YUV 4:4:4
HDCP version: 2.2
DisplayPort version: 1.4
Supported color depth: 16 Bit Deep Color
Supports HDR
Supports Consumer Electronic Control (CEC)
Supports Lip Sync (audio/video synchronization)
Supports stereoscopic 3D video
Supports Display Stream Compression 1.2 (DSC)
Supports EDID 2.0 (device recognition)
Supports DVI Version 1.0 (in conjunction with adapters)
Supports forward error correction (FEC)
Multi Stream audio/video support
Supports 21:9 Cinemascope
32 channel audio support
Dolby TrueHD capable
Supports 8-channel LPCM, 192 kHz, 24-bit audio capability
Supports DTS-HD Master Audio bitstream
Supports Super Audio CD (DSD)
Supports DVD audio
Supports Blu-ray Disc and HD DVD audio and video
Latency: Zero frame delay
Bending radius: 25.4 mm
OM version: OM3
Operating temperature: -20 ~ 70°C
Operating humidity: 10 - 75% RH
Power consumption: 360 mW max.

Attributes

AWG: 24/28
Color cable: black
Connector 1: DP, plug
Connector 2: DP, plug
Connector surface: gold-plated
DisplayPort standard: DisplayPort 1.4
HDTV Standard: Ultra HD 8K
Hoods: Metallic housing
Interlock: Snap fastener
Length: 10 m
AOC - Active Optical Cable: yes
Shielding: single shielding
