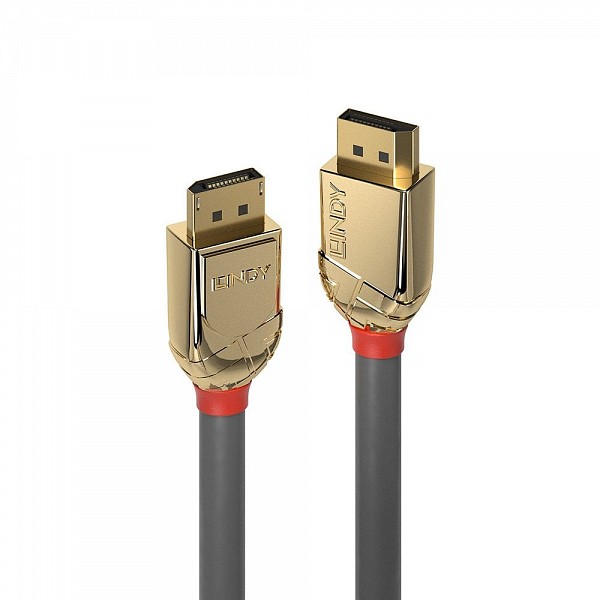

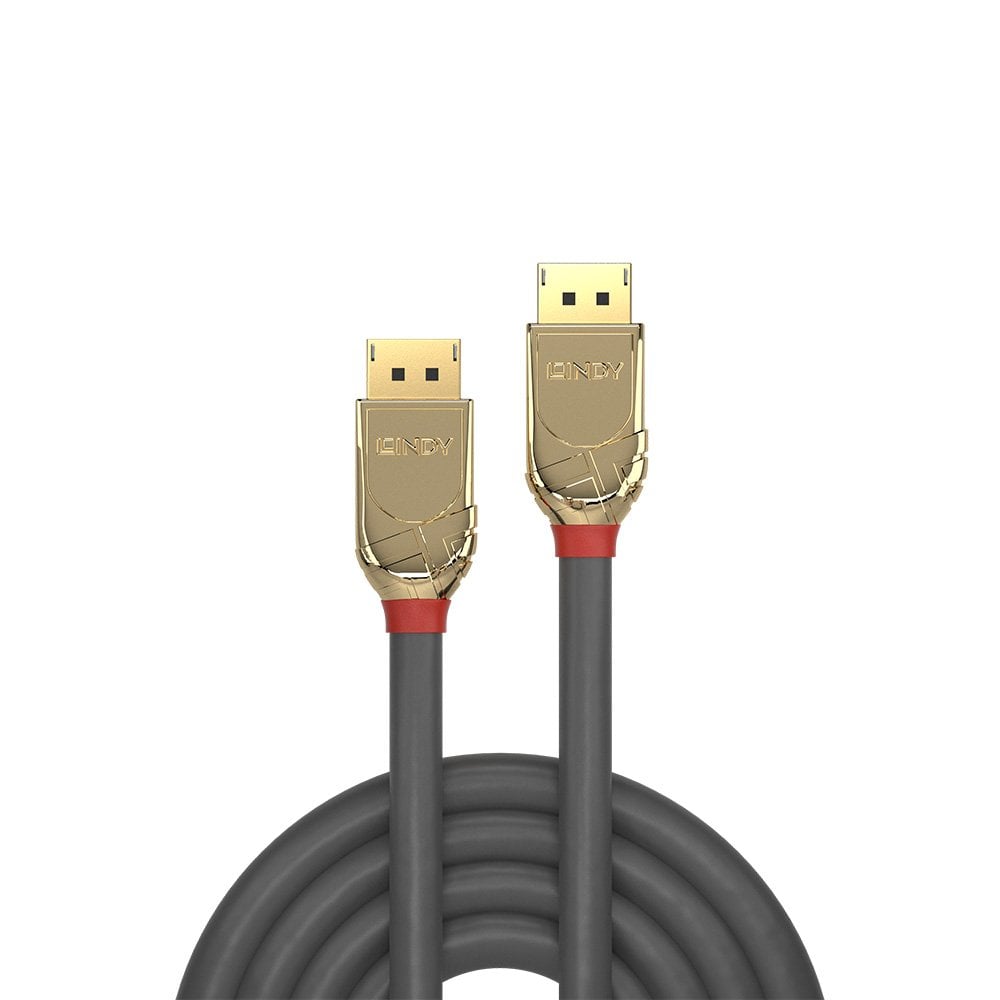

Lindy ΚΑΛΩΔΙΟ DISPLAY PORT v1.2 4K 20m Gold Line 36298
Κωδικός plus26: 173-415931
Κωδικός Εργοστασίου (MPN): 36298
From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.
Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
- No compromise, ultimate performance DisplayPort cable for demanding environments and mission critical systems
- Supports UHD resolutions up to 4096x2160@30Hz 4:4:4 8bit
- Full metal 24K gold plated housing, 24K gold plated connectors and contacts
- Low attenuation triple shielded cable, corrosion resistant, high performance OFC 24AWG conductors
- DisplayPort 1.2 compliant: 3D, 4K, 10.8Gbps, DisplayPort Certified; 25 year warranty
From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.
Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@30Hz 4:4:4 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.
Gold DisplayPort cables are available in lengths from 0.5m to 20m.
Connectors
Connector A: DisplayPort Male
Connector B: DisplayPort Male

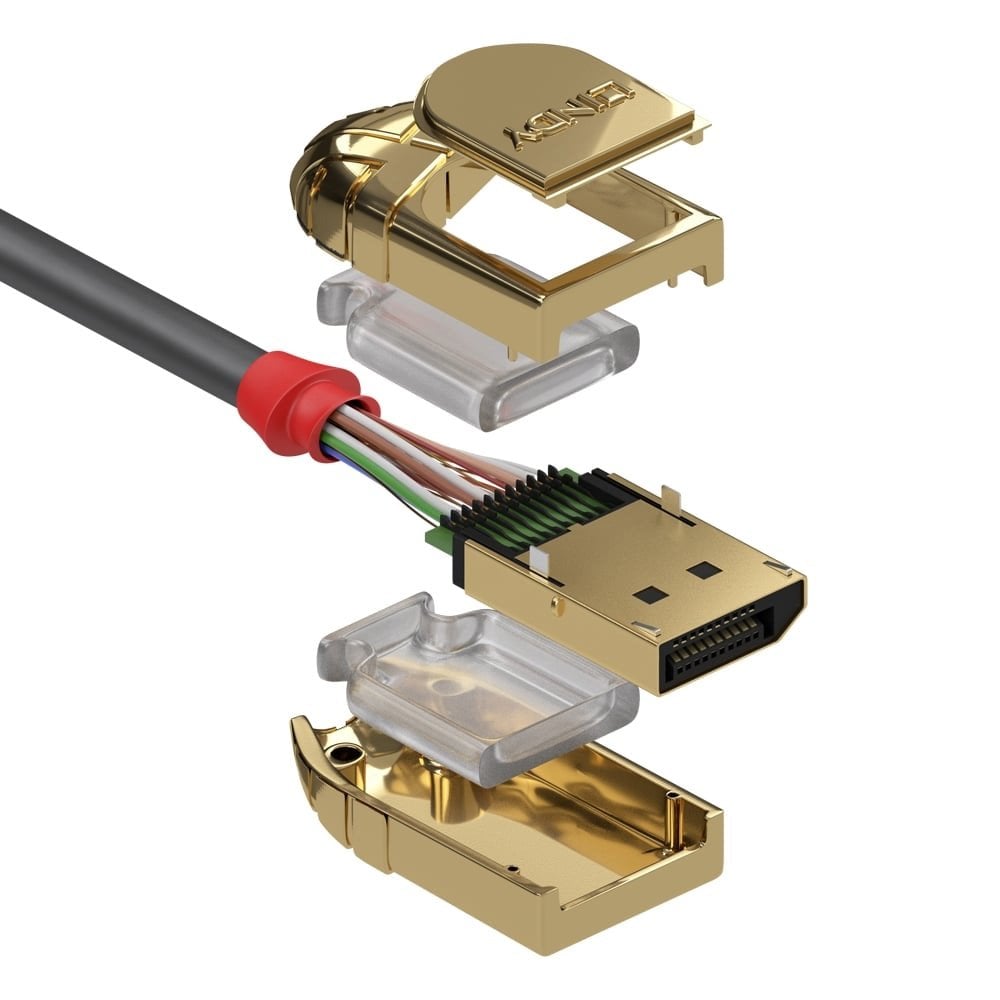

Housing Material: 24 Gold Plated Zinc Alloy
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15µm
Dimensions (approx.) WxDxH: 19.8x42.5x12.5mm (0.78x1.67x0.49in)
Cable Construction
Length: 20m (65.62ft)
Standard: DisplayPort 1.2
Colour: Grey
Type: Round
Jack Diameter: 9mm (0.35in)
Jacket Material: PVC
Conductor Material: OFC Copper
Conductor Gauge: 24AWG
Shielding: Copper Braid 85%
Specifications
Supported Bandwidth: 10.8 Gbps
Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
Nominal Attenuation: 300kHz-825MHz
Minimum Bend Radius: 90mm (3.5in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 80°C (-13°F - 176°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 25
Certificated: RoHS, REACH, UL
Purchasing Information
No.36298
EAN: 4002888362986
