Description

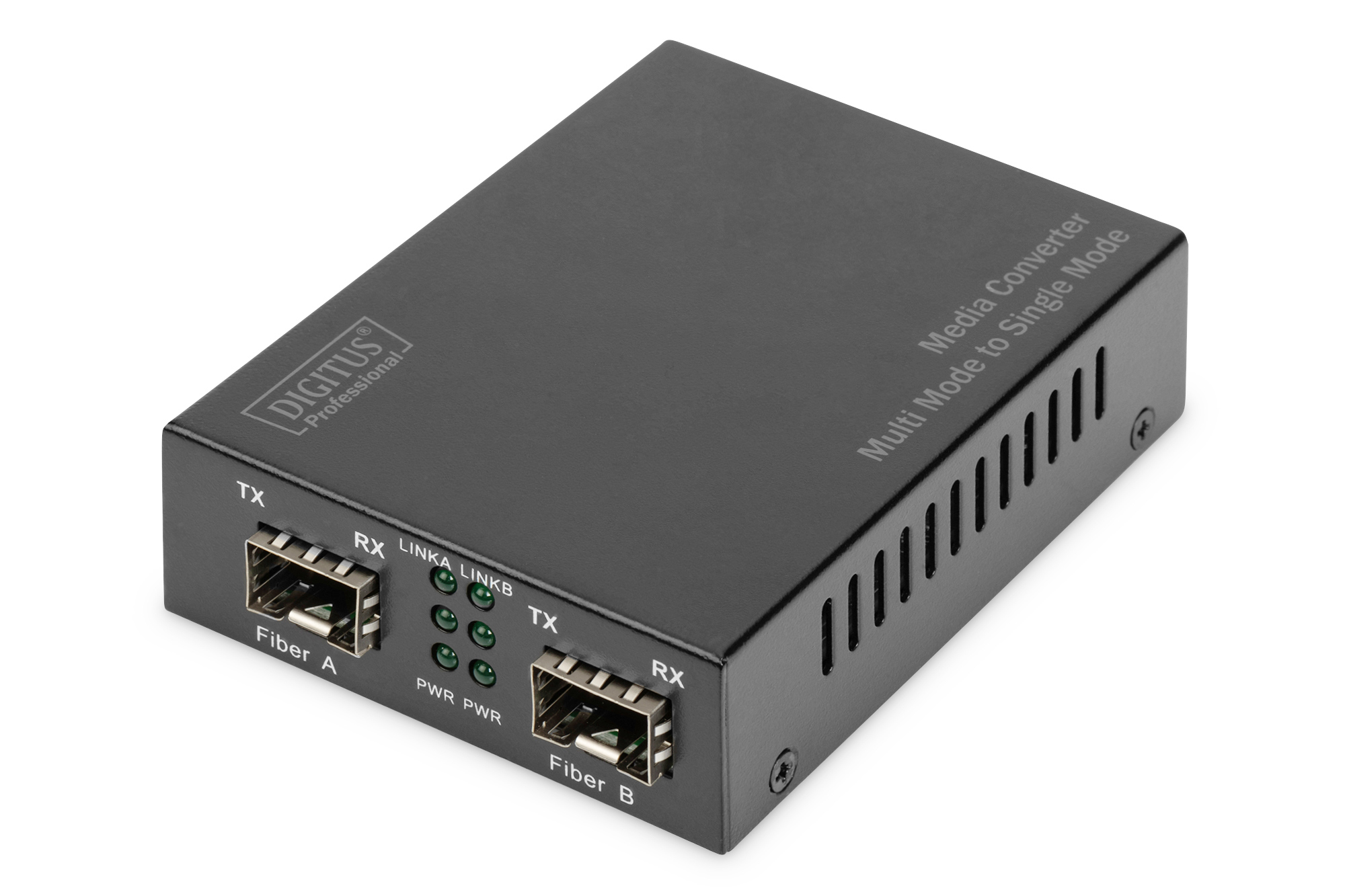

The media converters from DIGITUS® are an optimal solution for the migration of fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

Technical details

Converts between single & multimode fiber optic
2 x 100/1000Base-X SFP-Slot
Wavelength: 850nm, 1310nm (multimode), 1310nm, 1550nm (singlemode)

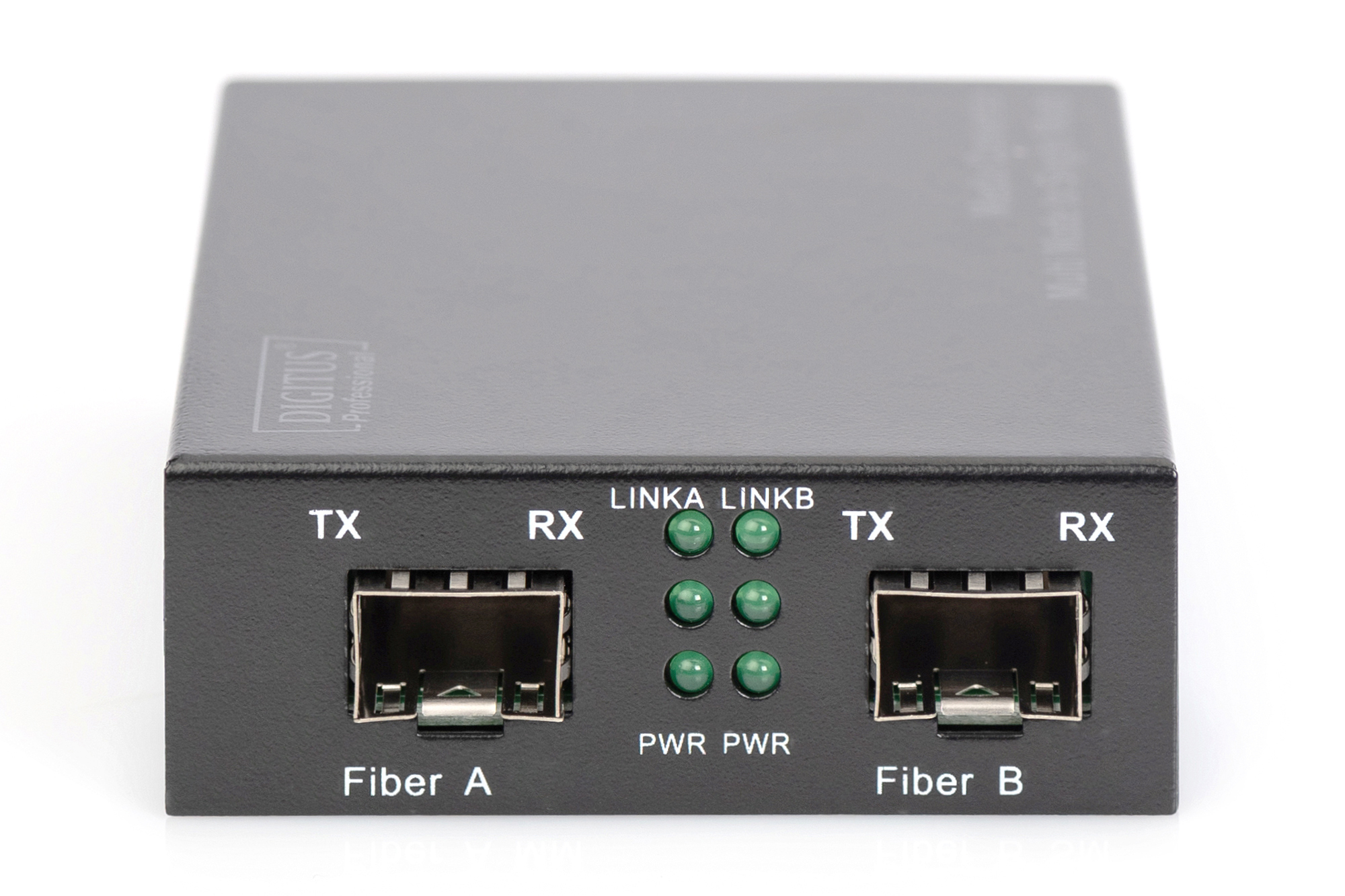

Diagnostic LEDs for status and activity monitoring
Suitable for 50/125μm, 62.5/125μm, and 100/140μm fiber optic cables (multimode)
Suitable for 8.3/125µm, 8.7/125µm, 9/125µm, and 10/125µm fiber optic cables (singlemode)
Operating temperature: -10 ~ 55 °C

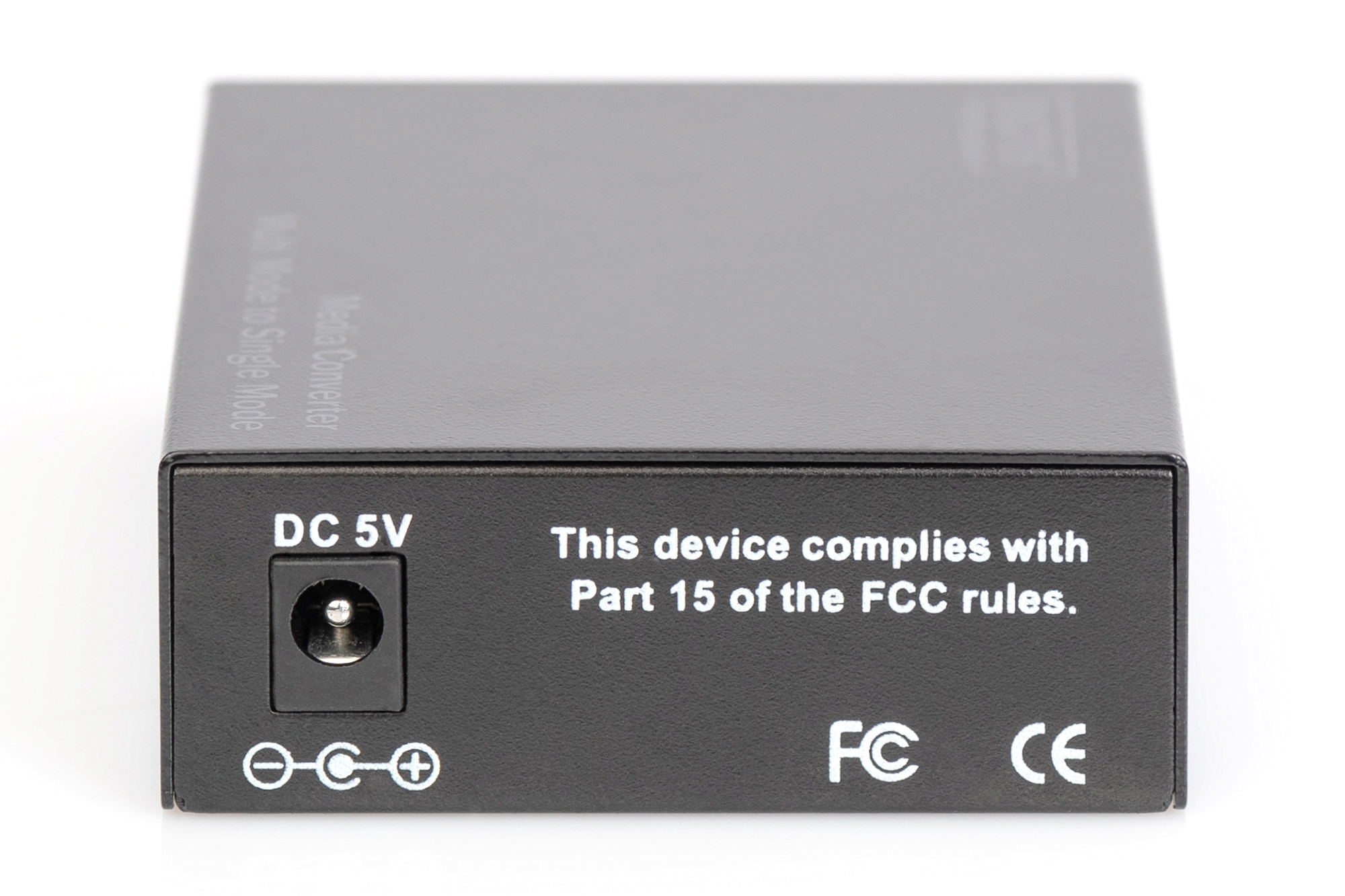

Standalone converter with external power supply unit
Input voltage: 5V DC
Max. current consumption: 1 A
Power consumption: 3.5W
Dimensions (L x W x H): 95mm x 70mm x 26mm

Attributes

Connector 1: SFP
Connector 2: SFP
Mode: Multimode -> Singlemode
Distance (km): Depending on module
Industrial usage: no
Broadcasting Mode: Depending on module
PoE injector: no
Ethernet speed: Gigabit

Package content

Gigabit Multimode/Singlemode Media Converter SFP
Quick start guide
Power adapter
