Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.

• Power input style: left-end single input
• Cable plug: IEC60884
• Protection functions: Overload protection with power cut at loading over 16 A
• Shell color & material: black aluminum
• Three-year warranty
• Socket/outlet standard: IEC60884
• Outlets: 12
• Cable specification: standard 1.8 m (5 ft.) power cord
• Size: 675 (L) x 44.4 (W) x 63 (H) [mm] / 26.57 (L) x 1.75 (W) x 2.48 (H) [in]
• Electrical rating: 250V AC
• Maximum load current: 16 A
• Overload protection with power cut at loading over 16 A
• Flammability: Tested and rated in accordance with UL 94 V-0
•
• This product is part of a group; the complete list of variations follows:
• #714914 - 1U 6-Way with On/Off Switch
• #711432 - 1.5U 6-Way with Double Air Switch
• #713962 - 1.5U 6-Way with On/Off Switch and Surge Protection
• #715140 - 1U 7-Way with Surge Protection
• #714006 - 1.5U 7-Way with Surge Protection
• #714037 - 1U 8-Way
• #715126 - 1U 8-Way with On/Off Switch
• #713986 - 1U 8-Way with On/Off Switch and Overload Protection
• #715133 - 1U 9-Way with On/Off Switch

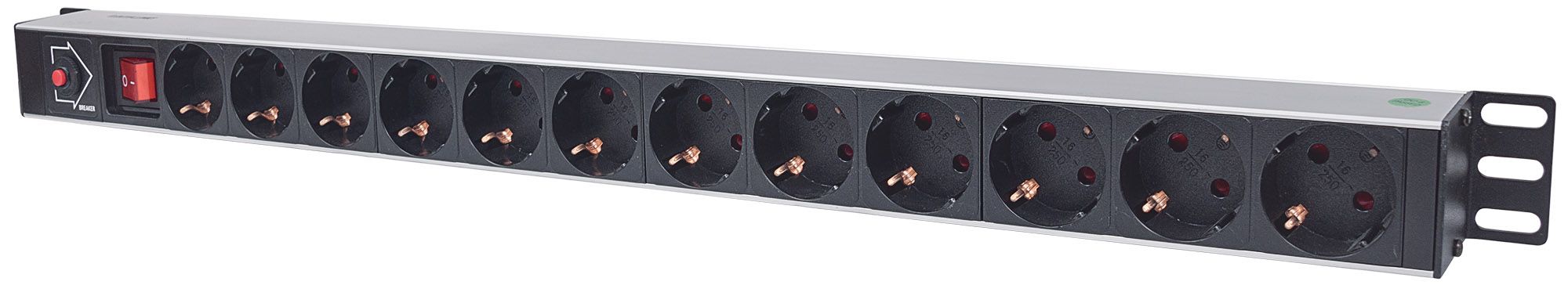

• #714044 - Vertical Rack Mount 12-Way with On/Off Switch and Overload Protection
• #711449 - Vertical Rack Mount 12-Way with Single Air Switch
• #714051 - 2U 15-Way with Double Air Switch
