Description

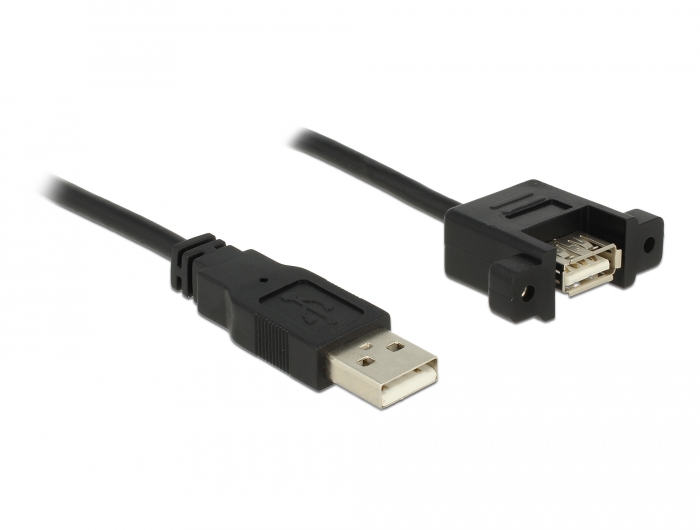

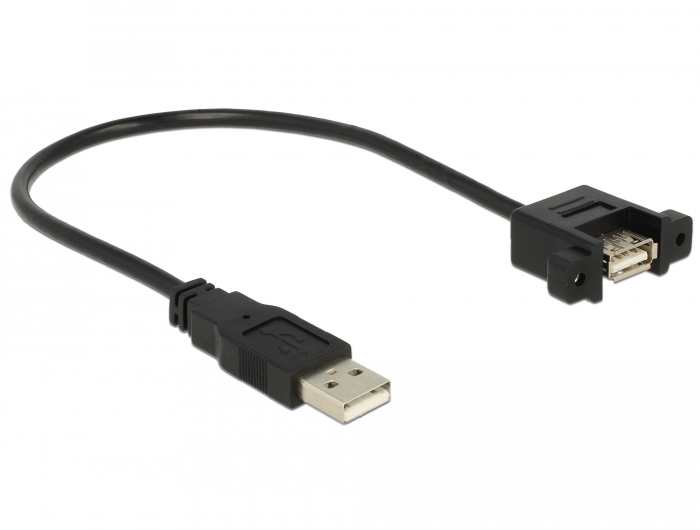

This cable by Delock can be used to extend an USB connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a USB connector in an easily accessible position.

Specification

Connectors:
1 x USB 2.0 Type-A male >
1 x USB 2.0 Type-A female with nuts for installation
Screw type: #4-40 UNC
Mounting hole: ca. 15 x 8 mm, screw hole pitch ca. 30 mm
Cable gauge:
28 AWG data line
24 AWG power line
Cable diameter: ca. 4.5 mm
Gold-plated connectors
Data transfer rate up to 480 Mb/s
Colour: black
Length incl. connectors: ca. 0.25 m

System requirements

A free USB interface

Package content

USB panel-mount cable
2 screws

Package

Zip poly bag
