The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Technical details

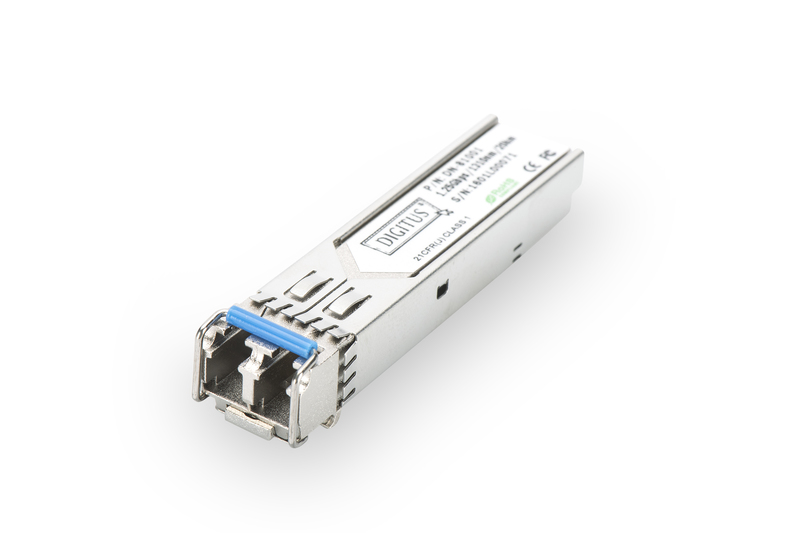

• Mini GBIC SFP (Small Form Factor Pluggable) module
• Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet,  Mikrotik , ENTERASYS, RIVERSTONE ,  Unifi, Ubiquiti, ZyX
• High quality and excellent reliability
• 1.25 Gbps Maximum Data Rate
• Compliant to IEEE 802.3z Gigabit Standard
• Class 1 laser product compliant with EN 60825-1
• Easy plug-and-play installation
• MSA (Multi Source Agreement) compliant
• Hot pluggable
• Connector: 1x LC Duplex
• 1000Base-LX - For Long Haul
• Wavelength: 1310nm
• Transmission power: minimum -8 dBm, maximum -3 dBm
• Sensitivity receiving power: minimum -24 dBm
• For a Distance of up to 20km
• Suitable for 09/125µm Singlemode Fiber Cables
• Safe fast-locking mechanism
• 3.3V power supply
• Operating temperature: 0 °C ~ 70 °C

Attributes

• Mode: Singlemode
• Connector: LC
• Distance (km): 20
• Wavelength: 1310 nm
• DDM Support: no
• Broadcasting Mode: Unidirectional
• Manufacturer compatibility: Universal (MSA), Cisco
• Ethernet speed: Gigabit

Package content

• SFP module
