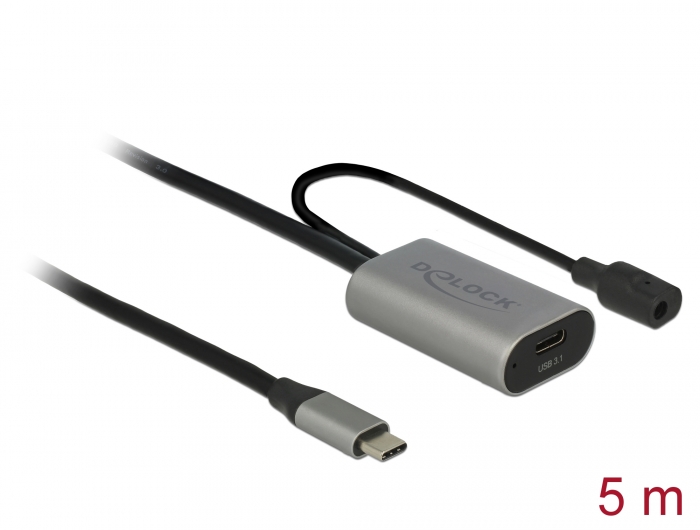

This active USB cable by Delock can be used to extend a USB connection by 5 m. The cable has an additional DC power socket to which an optional power supply can be connected. This ensures optimum data transmission even when used with powerful devices such as a 2.5″ hard drive.

Specification

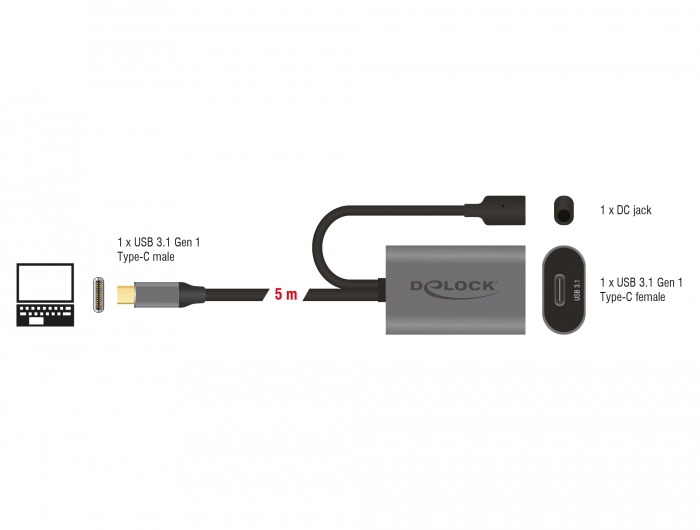

Connectors:
1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ male >
1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ female
1 x DC jack
Chipset: Genesys GL3523
DC jack for optional power supply
Status LED
Cable gauge:
Data cable 28 AWG data line / 22 AWG power line
Power cable 24 AWG
Resistor: 5.1 kΩ
Cable diameter:
data cable ca. 4.6 mm
power cable ca. 2.8 mm
Data transfer rate up to SuperSpeed USB 5 Gbps
Colour: black / grey
Dimensions of housing (LxWxH): ca. 45.0 x 28.6 x 14.1 mm
Cable length without connectors: ca. 5 m

Specification of power connector

Input: 5 V / 2 A
Ground outside, plus inside
Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.65 mm

System requirements

Mac OS 10.13.6 or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC or laptop with a free USB Type-C™ port

Package content

USB 3.1 Gen 1 extension cable

Package

Retail Box
