Specification

Connectors:
1 x DisplayPort 20 pin male >
1 x DVI-D (Dual Link) 24+1 male
Chipset: NXP PTN3361
DVI connector with screws
DisplayPort 1.1 specification
Passive cable (level shifter), suitable only for graphics cards with DP++ output
Signal direction: DisplayPort input > DVI output
Cable gauge: 28 AWG
Cable diameter: ca. 6.5 mm
Twisted-pair cabling
Copper conductor
Gold-plated connectors
Triple shielded cable
Data transfer rate up to 10.8 Gb/s
Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected
hardware)
Colour: black
Length incl. connectors: ca. 3 m

System requirements

A free DisplayPort DP++ female port

Package content

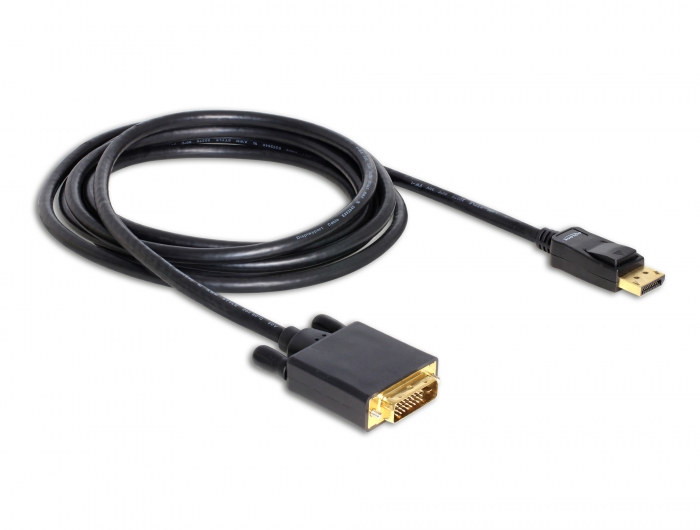

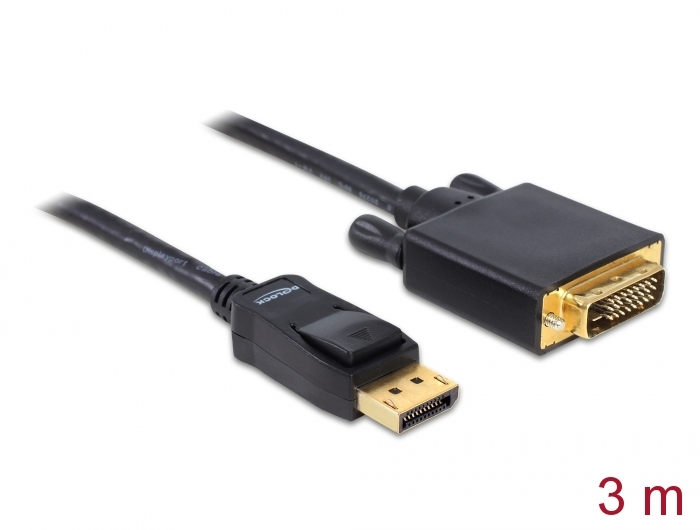

DisplayPort to DVI cable

Package

Poly bag
