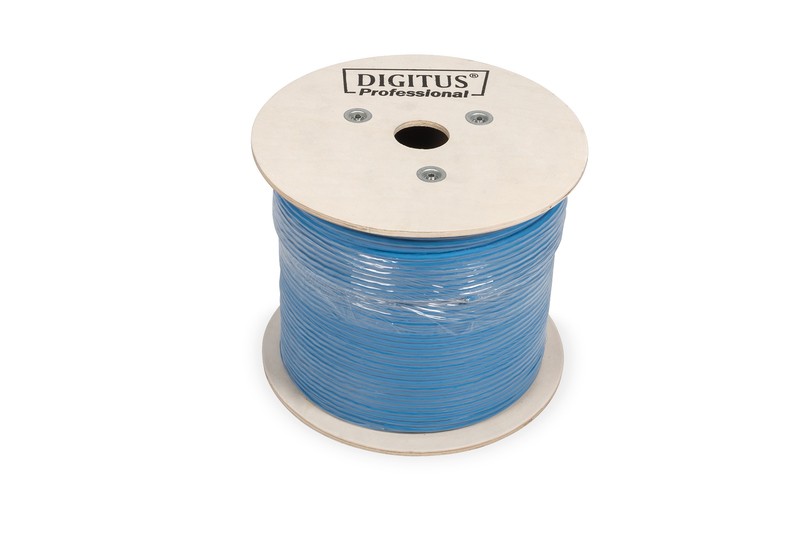

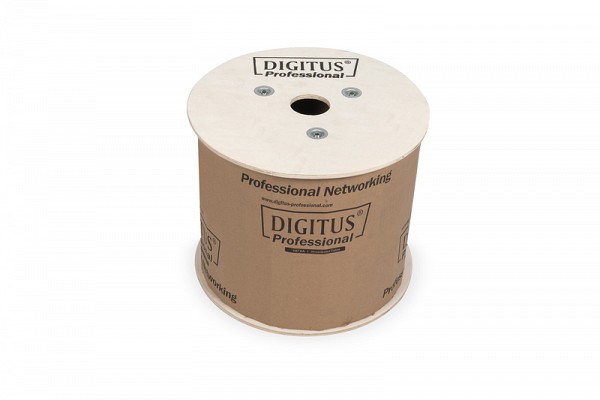

Digitus F-UTP 500m Cat6a Μονόκλωνη μπλε LSOH DK-1623-A-VH-500
Κωδικός plus26: 173-378271
Κωδικός Εργοστασίου (MPN): DK-1623-A-VH-500
The Digitus® Professional Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.
CAT 6A U-FTP installation cable, 500 MHz Eca (EN 50575), AWG 23/1, 500 m drum, sx, blue
Future-oriented standards and high-end quality for your network.
10GBit Ethernet
500 MHz transmission frequency
PoE Power over Ethernet support
CPR class Eca
Technical Details
Physical properties:
Conductor: Bare annealed copper, solid AWG 23/1
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: None, with drain wire
Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
Outer sheath color: Light blue (RAL 5012)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +60 °C
Operating temperature range: -20 °C up to +75 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca)
Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 kg (Cca); 58 kg (B2ca)
Electrical properties:
Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @100-500 MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 2
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 15 nS/100 m max.
Separating class: “c” acc. to EN 50174-2
NVP: 70%
Assortment: Twisted Pair Installation Cables
Length: 500 m
Category: CAT 6A
Color: light-blue
CPR: Eca
Jacket: LSOH
Shielding: U-FTP, pairs in metal foil
Structure: 4 x 2 AWG 23/1, solid twisted pair
