• Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)†
• Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands

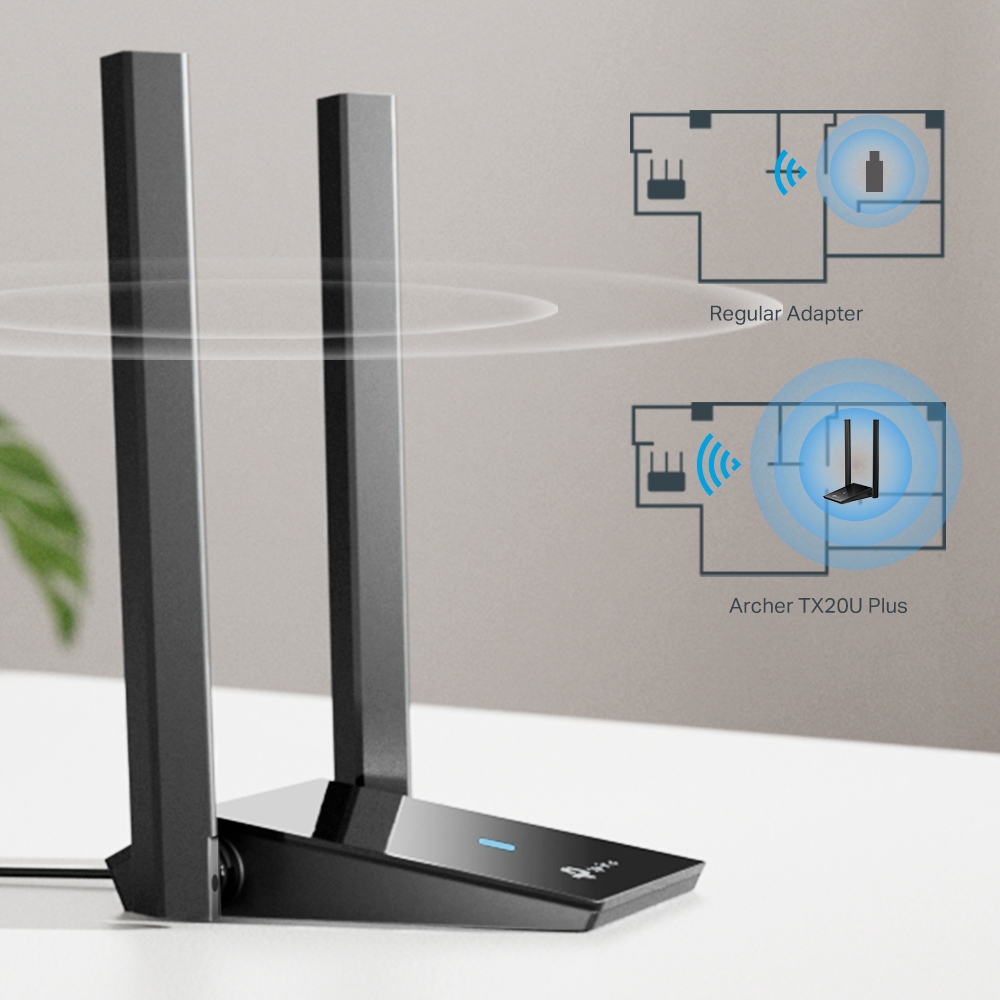

• Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
• MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth△
• OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks△
• SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0
• Refined Security – Protect your personal data with the latest WPA3 encryption

WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
Signal Rate 5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity 5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -94 dBm
11ax HE40 MCS11: -66 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -74dBm
Transmit Power 5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)
Wireless Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

OTHERS
Certification FCC, CE, RoHS
Package Contents AX1800 Dual Antennas High Gain Wireless USB Adapter
Archer TX20U Plus
Quick Installation Guide

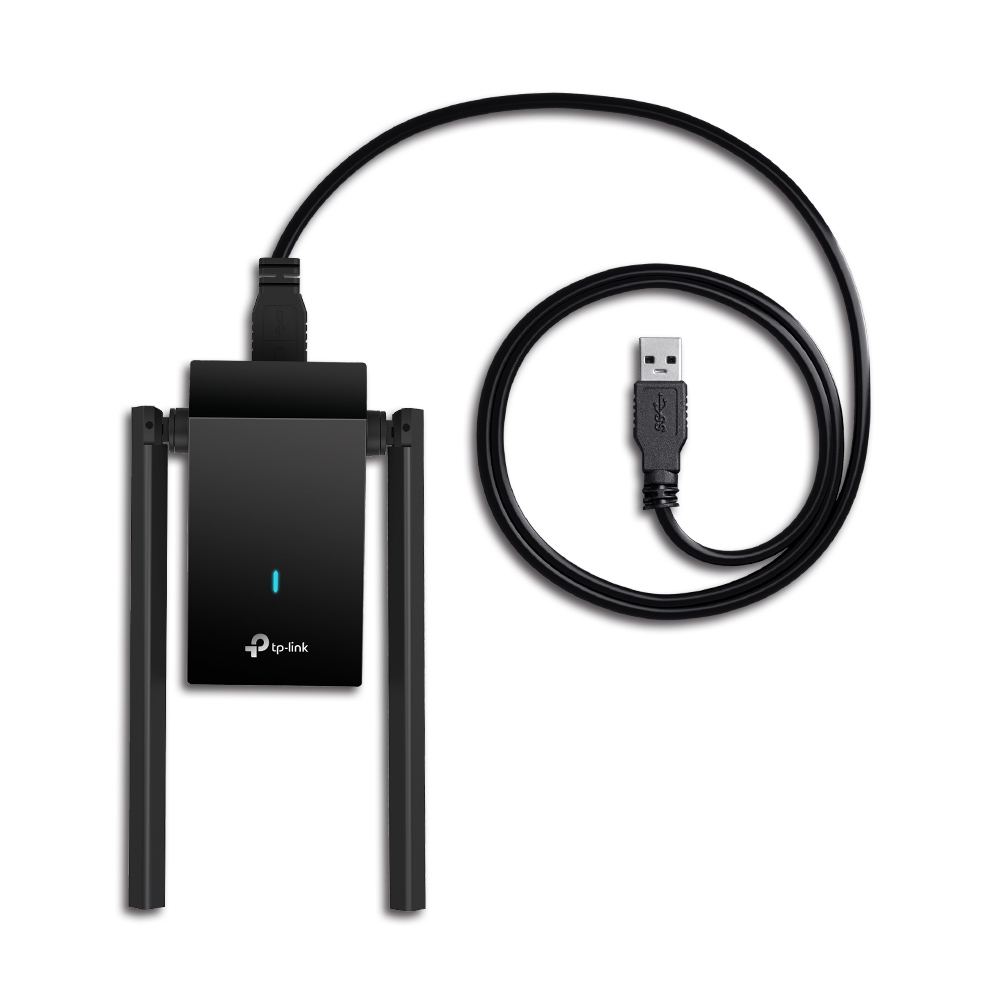

1-meter USB 3.0 Cable
System Requirements Supported operating systems include Windows 10, 11
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

HARDWARE FEATURES
LED Status
Dimensions 84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in)

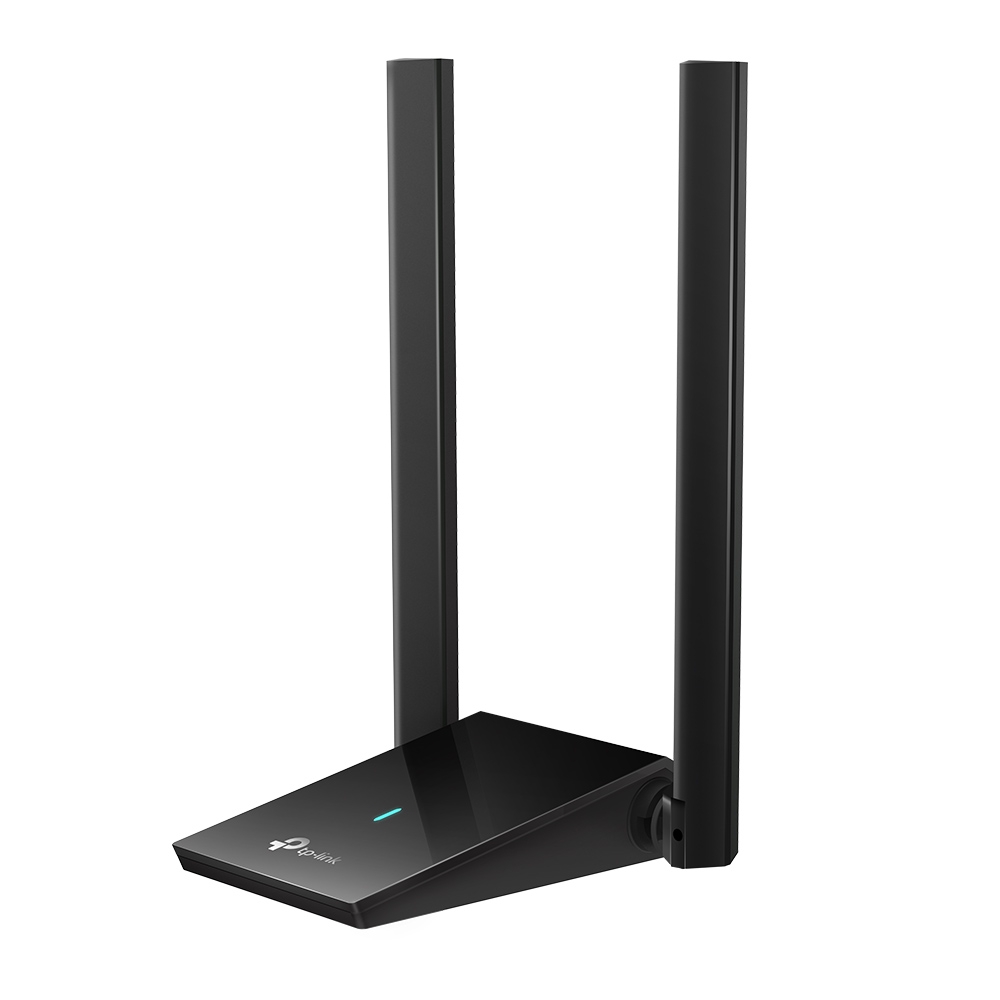

Antenna 2× High-Gain Dual-Band Antennas
