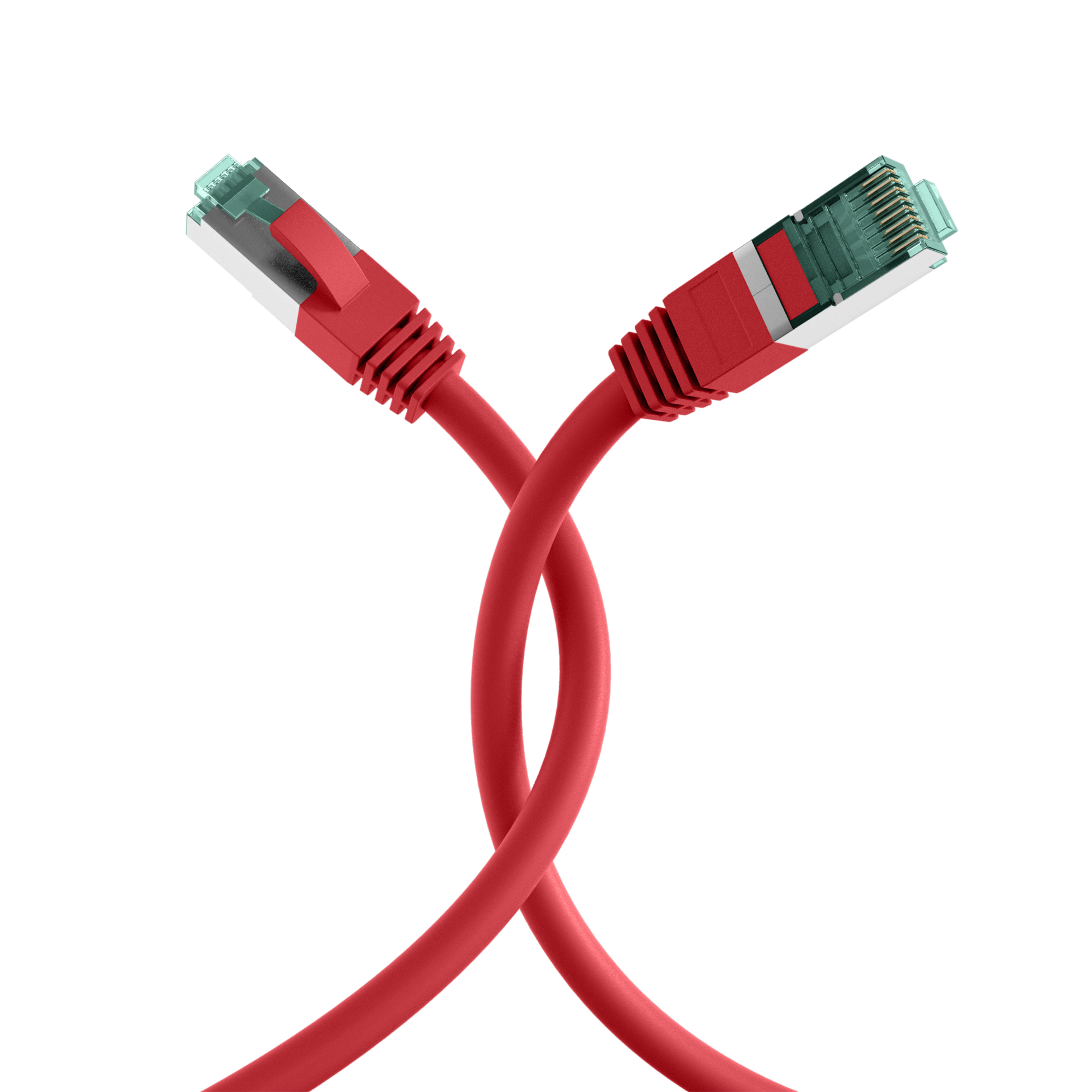

EFB SFTP 30m CAT6a Κοκκινο LSOH MK6001.30R

AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet
Structured cabling
Bandwidth: 500MHz
Bending radius: >30 mm
Cable construction: 4x2
Cable type: S/FTP
Category: 6A (TIA)
Colour anti-kink sleeve: red
Colour outer sheath: red
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 Standard green
Contact Resistance: 30 mΩ
Contacts: Gold plated
Current Rating: max. 1 A
Fire retardant version: True
Flame retardant: True
Halogen-free: True
Halogen free: True
Impedance: 100 ±15 Ω
Insulation Resistance: 10 MΩ
Length imprint: True
Locking lever: True
Loop resistance: 370 Ω/km
Low smoke: True
Material outer sheath: LSZH
Mating cycles: 2000
Model: Shielded
NVP value: 74 %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.0 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at
PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet***
Raw cable: Cat.6A
Resistance unbalance: 3 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -20 – 60 °C
Test voltage: 1000 V DC, 1min
Total screening: 80 %
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: False
