The VC981 is an active Mini DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.
The ATEN VC981 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.

• Converts Mini DisplayPort signals to HDMI output
• Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD

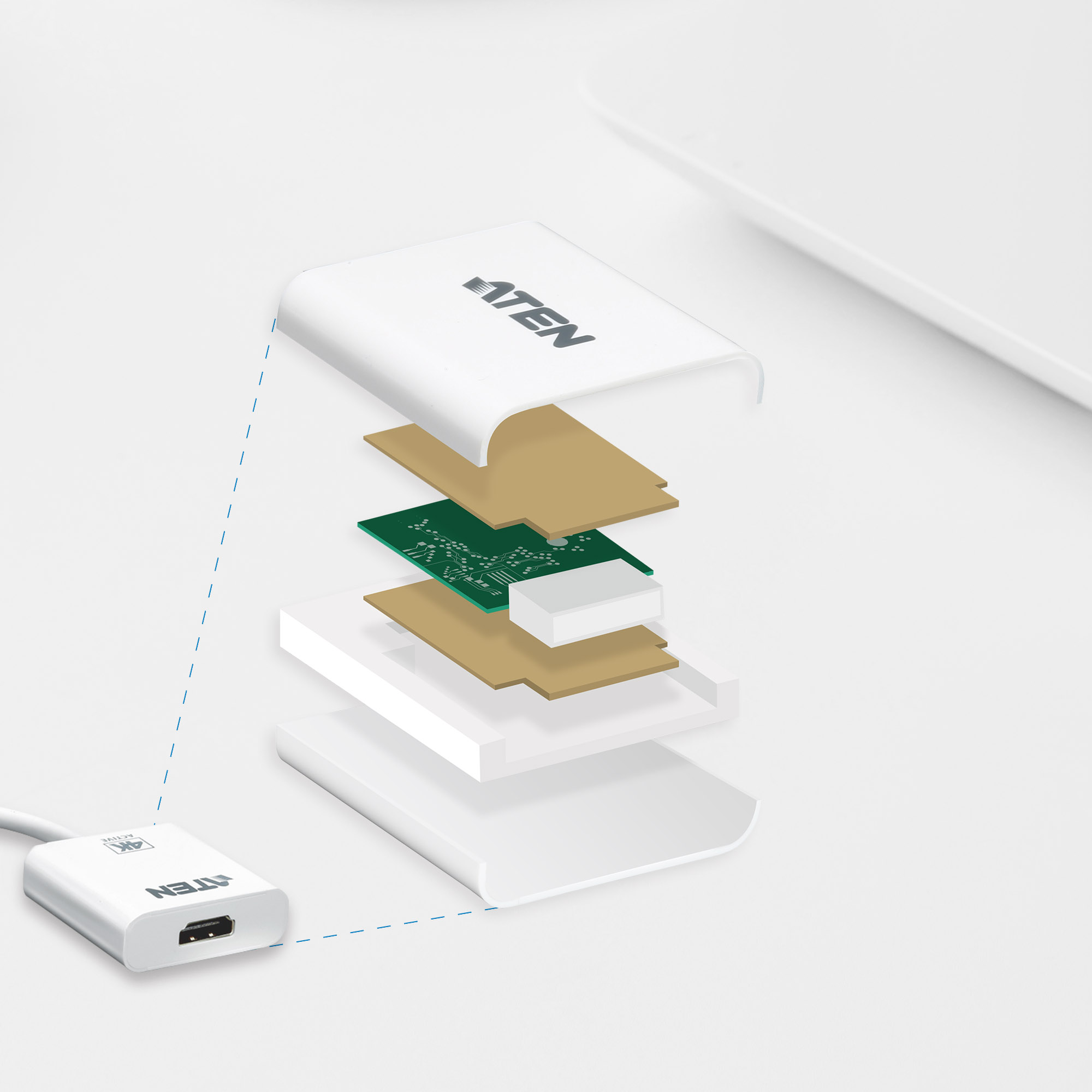

• Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
• Supports AMD Eyefinity™ Technology (multi-screen setups)
• Audio supported
• No software or driver installation required
• Video Input
• Interfaces 1 x Mini DisplayPort Male (White)
• Video Output
• Interfaces 1 x HDMI Type A Female (Black)
• Video
• Max. Pixel Clock 297 MHz
• Max. Resolution 3840 x 2160@30Hz, 1920 x 1200@60Hz.
• Compliance DP1.2a, HDMI(3D, Deep Color, 4K), HDCP 1.3
• Audio
• Output 1 x HDMI Type A Female (Black)
• Environmental
• Operating Temperature 0 - 50 ºC
• Storage Temperature -20–60 ºC
• Humidity 0 - 80% RH, Non-Condensing
• Physical Properties
• Housing Plastic
• Weight 0.04 kg ( 0.09 lb )
• Dimensions (L x W x H) 17.50 x 4.50 x 1.50 cm
• (6.89 x 1.77 x 0.59 in.)
• Carton Lot 40 pcs
• Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

1x VC981 4K Mini DisplayPort to HDMI Active Adapter
