BRATECK βάση οροφής TV 23

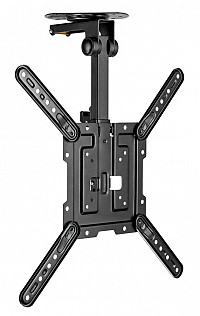

BRATECK βάση οροφής TV 23"-55" 20kg MAXVESA:400 LCD-CM344

Κωδικός plus26: 4224-420

Κωδικός Εργοστασίου (MPN): LCD-CM344

Εγγραφείτε για τιμή

With a fold-up locking design, the LCD-CM344 Economical Folding Ceiling Mount offers the perfect solution for mounting TVs below cabinets, in work areas, on pitched ceilings and a great solution for commercial installations in bars, educational and hospitality viewing areas. Lightweight aluminum and steel construction with ample adjustability that includes a 360° swivel ceiling mount can perfectly position 23” to 55” TVs with max load capacity of 20kg/44lbs. Adjustable vertical rail makes it easy to adjust the TV to preferred height. With outstanding quality and affordable prices, resellers can’t go wrong by offering the LCD-CM344 Economical Folding Ceiling TV Mount.

FEATURES

●Swivel Ability: for multiple screen viewing angles
●Flexible Sliding Rails: for adjusting screen height
●Folding Design: saves space (keeping the screen and arm out of the way when not in use)

SPECIFICATIONS

Product Category: TV Ceiling Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Pipe Size: 30x20x1.5mm Square Steel Tube (1.2"x0.79"x0.059" Square Steel Tube)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 614x4355x165mm (24.2"x171.5"x6.5")
Fit Screen Size: 23"-55"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 75x75,100x100,100x200,200x100,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,400x400
Max. Mounting Hole: 400x400
Weight Capacity: 20kg (44lbs)
Strength Tested: 3 Times Approved
Profile: 83mm (3.3")
Tilt Range: 0/-90°
Swivel Range: +45°~-45°
TV Height Range: min520~max614mm (min20.5"~max24.2")
Installation: Ceiling Mounted
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: No
Bubble Level: No
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Χρειάζεσαι βοήθεια;

Επικοινώνησε μαζί μας για να σε βοηθήσουμε να επιλέξεις τη σωστή βάση τηλεόρασης.

Δωρεάν παράδοση

Με την υπηρεσία επίτοιχης εγκατάστασης, η παράδοση στον χώρο σου γίνεται χωρίς επιπλέον κόστος.

Τοποθέτηση Βάσης:	Οροφής
Μέγιστο VESA:	400x400
Με Βραχίονα:	Ναί
Με Κάθετη Κλίση:	Ναί
Με Οριζόντια Κλίση:	Ναί
