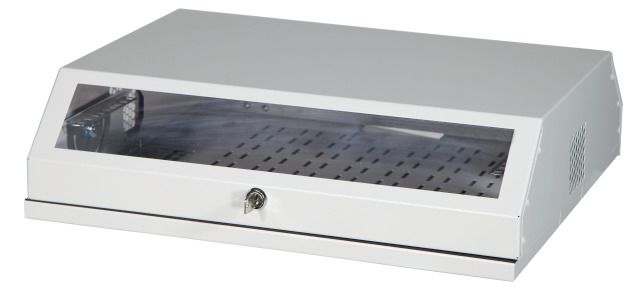

EFB Επίτοιχη καμπίνα SLIMLINE (3U Vertical + 5U Horizontal) RAL7035 691703V

Κωδικός plus26: 173-372704

Κωδικός Εργοστασίου (MPN): 691703V

Εγγραφείτε για τιμή

Steel sheet housing for wall mounting, completely pre-assembled, self-ventilated Wall raising (overall depth) only 150 mm 3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm 5U additionally for horizontally mounting of 19" components, max. depth 80 mm 3U level 180° swiveling Cover with window, hinged and lockable Pre-punched ventilation openings in housing Pre-punched cable clamps in rear wall Material steel sheet Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white Protection degree IP20 Included in delivery: 1 x key

Steel sheet housing for wall mounting, completely pre-assembled, self-ventilated
Wall raising (overall depth) only 150 mm
3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm
5U additionally for horizontally mounting of 19" components, max. depth 80 mm
3U level 180° swiveling
Cover with window, hinged and lockable
Pre-punched ventilation openings in housing
Pre-punched cable clamps in rear wall
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white
Protection degree IP20
Included in delivery: 1 x key
Degree of protection (IP): IP20
Demountable: True
Material: steel
Model: With swing frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front side
Number of cartons: 1
Number of doors: 1
Surface finishing: powder coating
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: True
With front door: True
With roof plate: True
With sidewall: True

Καλέστε μας

Για βοήθεια σχετικά με την επιλογή του κατάλληλου RACK και των παρελκόμενων του επικοινωνήστε μαζί μας για διευκρινίσεις.

Παράδοση

ΠΡΟΣΟΧΗ: Η παράδοση των RACK γίνεται στην είσοδο του κτιρίου.

Μεταφορικά

Για βαριά ή ογκώδη αντικείμενα επικοινωνήστε μαζί μας για μειωμένα εξόδα αποστολής με συνεργαζόμενη μεταφορική.

Product Sheet (PDF - 928,22 KB)
