Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4 - 2.4835GHz
WiFi Speeds

11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

• 270M: -70dBm@10% PER  • 11M: -87dBm@10% PER
• 130M: -72dBm@10% PER  • 6 M: -92dBm@10% PER
• 54M: -74dBm@10% PER    • 1 M: -94dBm@10% PER

Transmission Power
<20dBm
Wireless Security

WPA-PSK/WPA2-PSK

Wireless Functions
WDS bridge

Wireless

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management

Parental Control

Access control

Local management

Remote management
DHCP
Server
Port Forwarding
Virtual server, UPnP, DMZ
Dynamic DNS
DynDNS、NO-IP
Firewall Security
IP and MAC address binding
Protocols
IPv4
Guest Network
2.4GHz guest network

Software

Dimensions

147 mm × 115 mm × 34 mm

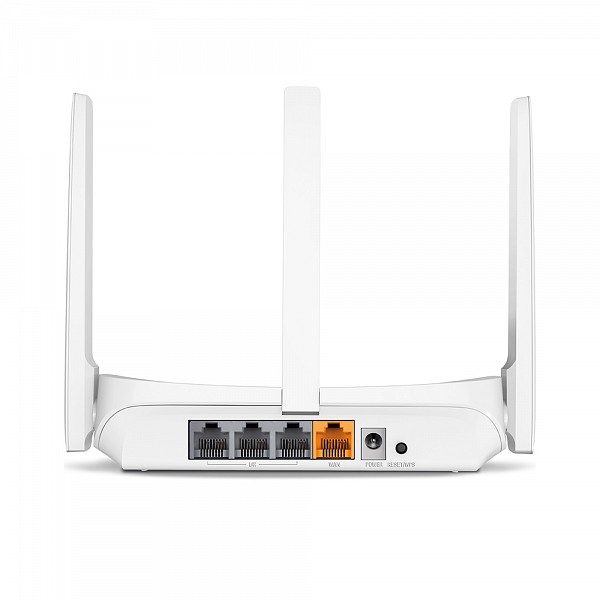

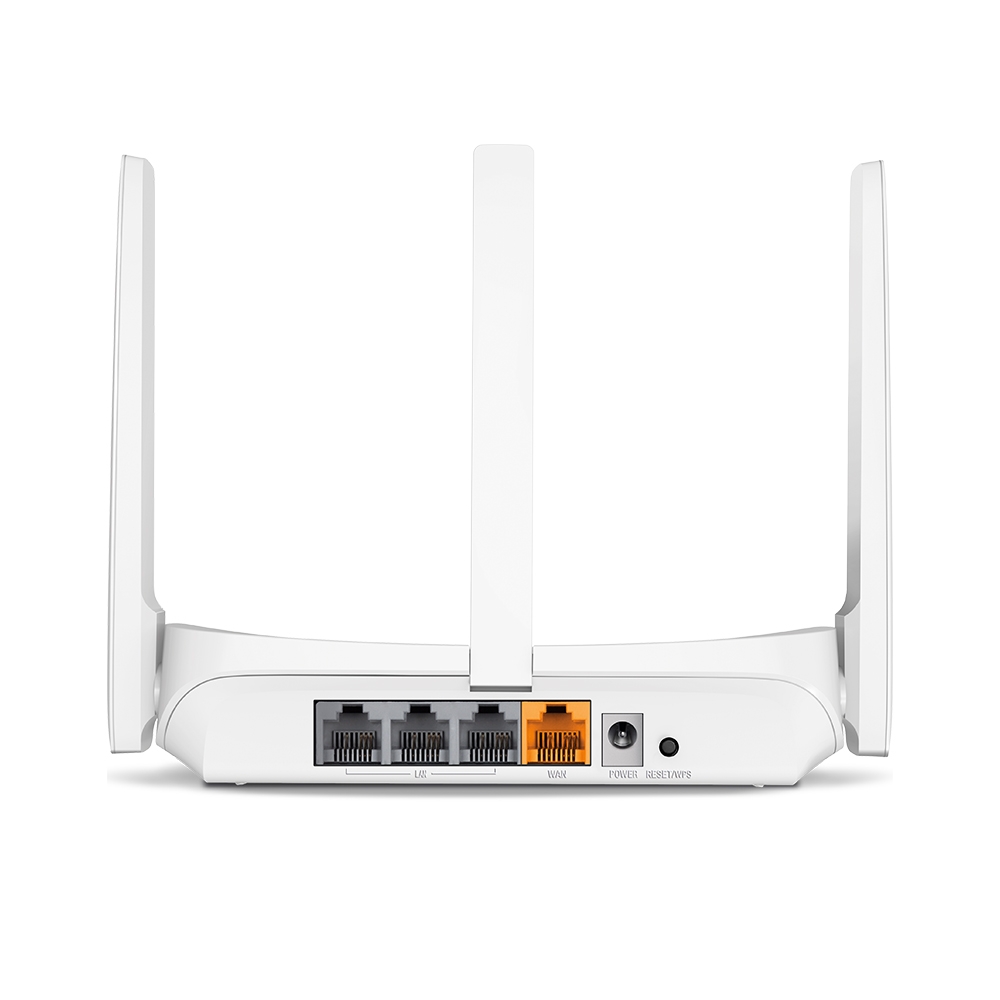

Interfaces

3 10/100Mbps LAN ports

1 10/100Mbps WAN port

Button
Reset/WPS button
External Power Supply
5VDC/0.6A
Antenna Type
3 x 5dBi fixed omni directional antennas

Hardware

Certifications
CE, ROHS

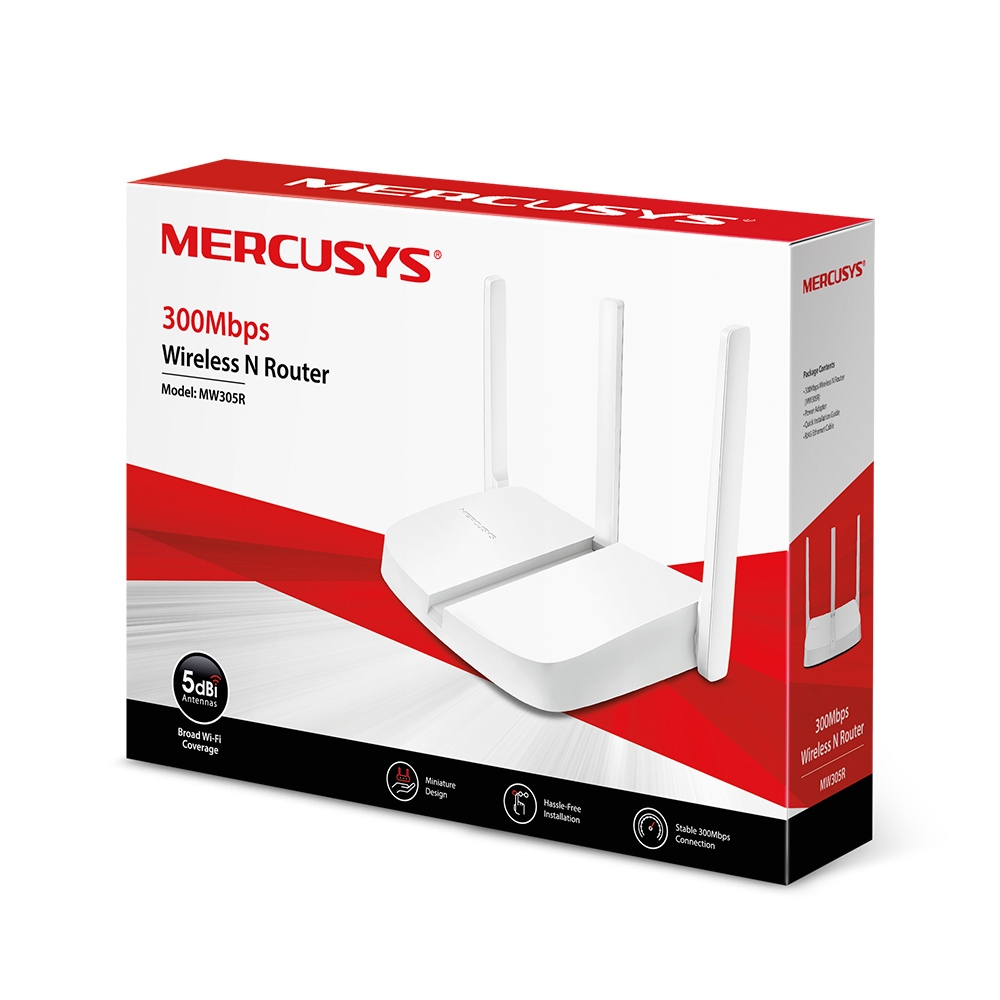

Package Contents

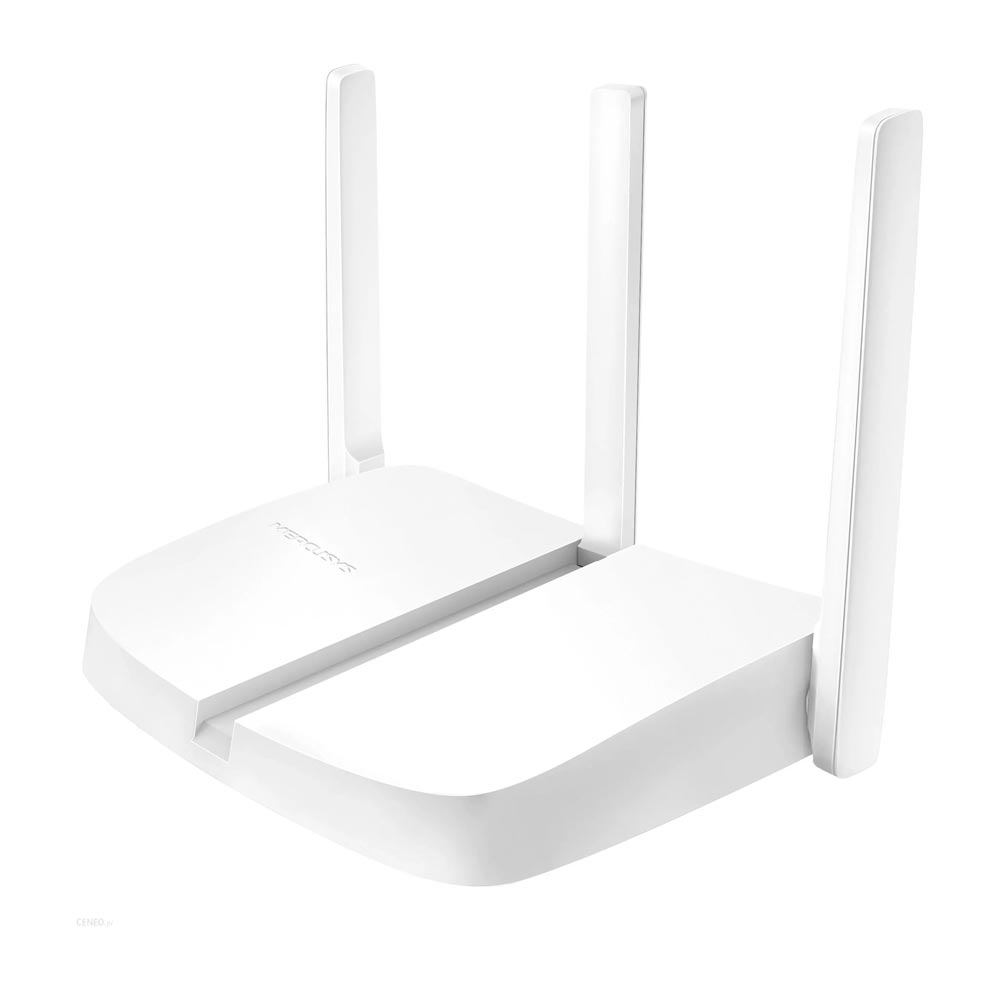

300Mbps Wireless N Router

MW305R

Power adapter

Quick installation guide
Ethernet cable

Environment

Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)

Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)

Operating humidity: 10% ~ 90%, non-condensing

Storage humidity: 5% ~ 90%, non-condensing

Others
